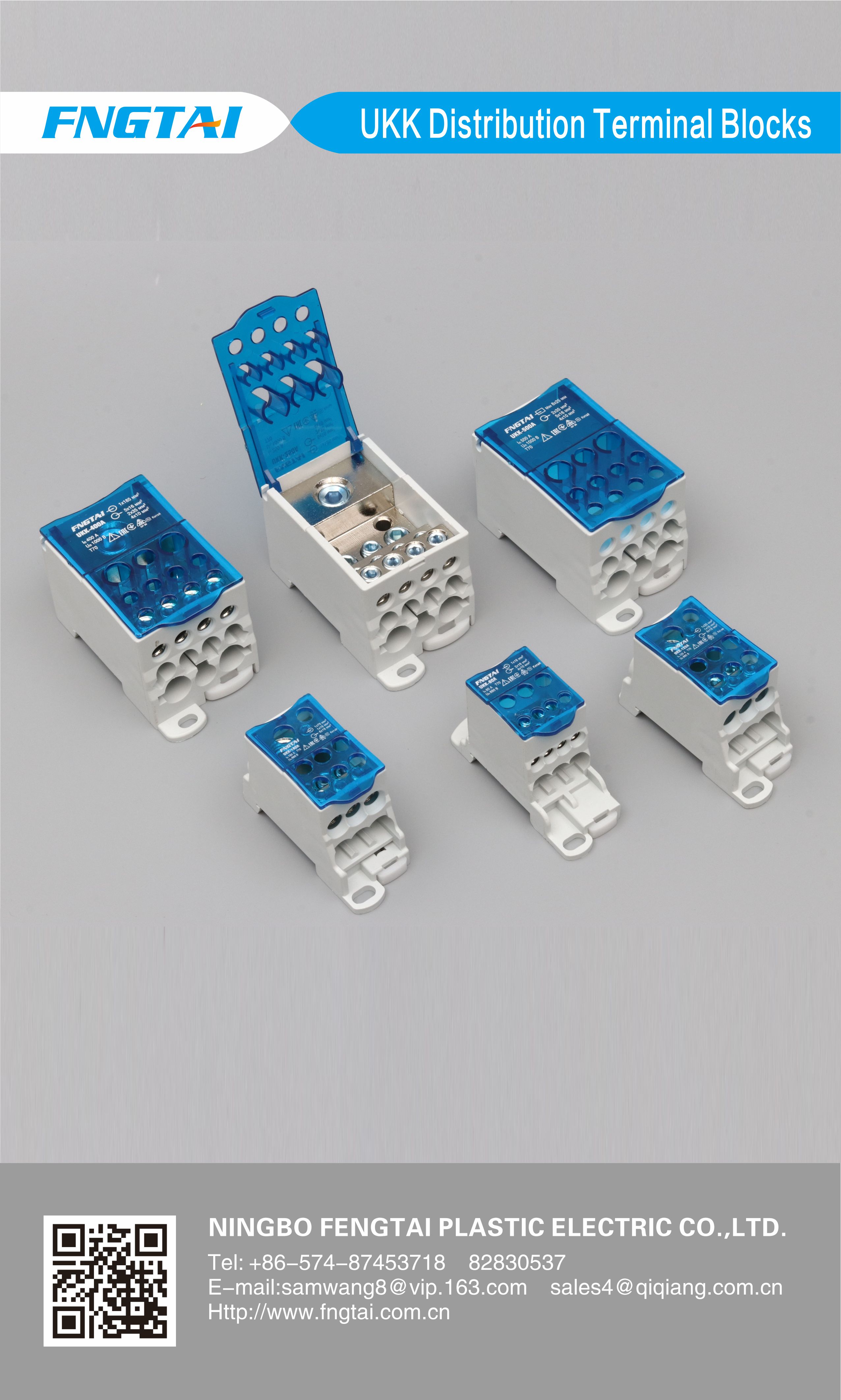

UKK distribution terminal blocks are designed for use as terminal clamps when multiple smaller conductors must be connected to

a conductor with bigger cross-section, for arrangement of distribution systems in cabinets, arrangement of main earthing busbar.

They are intended for installation on DIN rail or mounting panel both in power supply cabinets and flat distribution boards, work

ing in the systems of voltages up to 1000 V and frequency 50 Hz, at ambient air temperature from -40 to +70°C.

UKK distribution terminal blocks are made from high-quality brass with special protective coating. The body is made from non

combustible plastic.

Degree of protection: IP20

Installation methods: On DIN rail 35 mm wide; On the board panel using 2 screws.

Material: PC plastic lid, Nylon plastic body, Tin-plated brass
