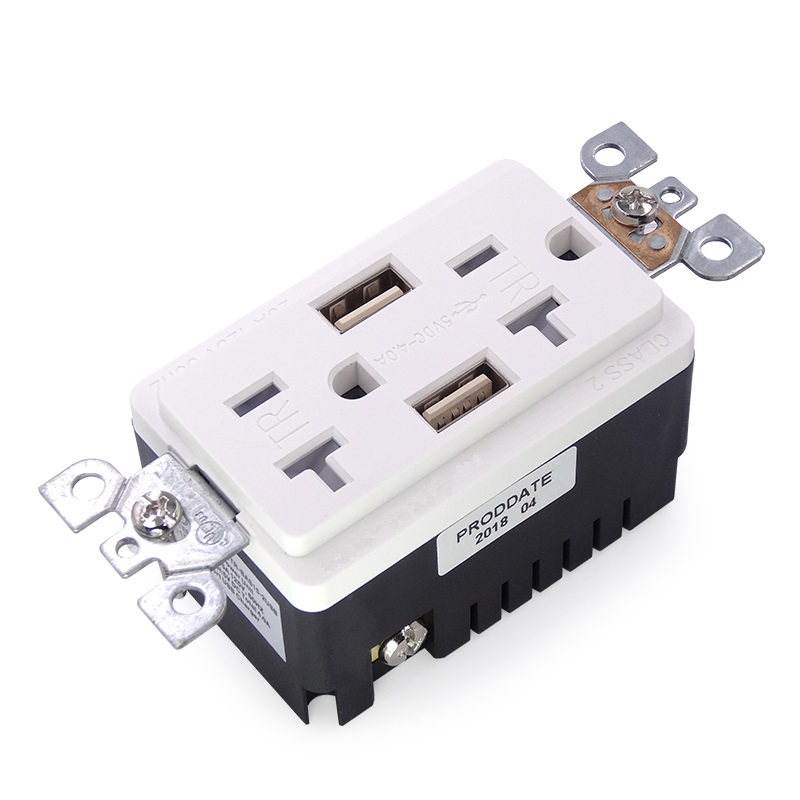

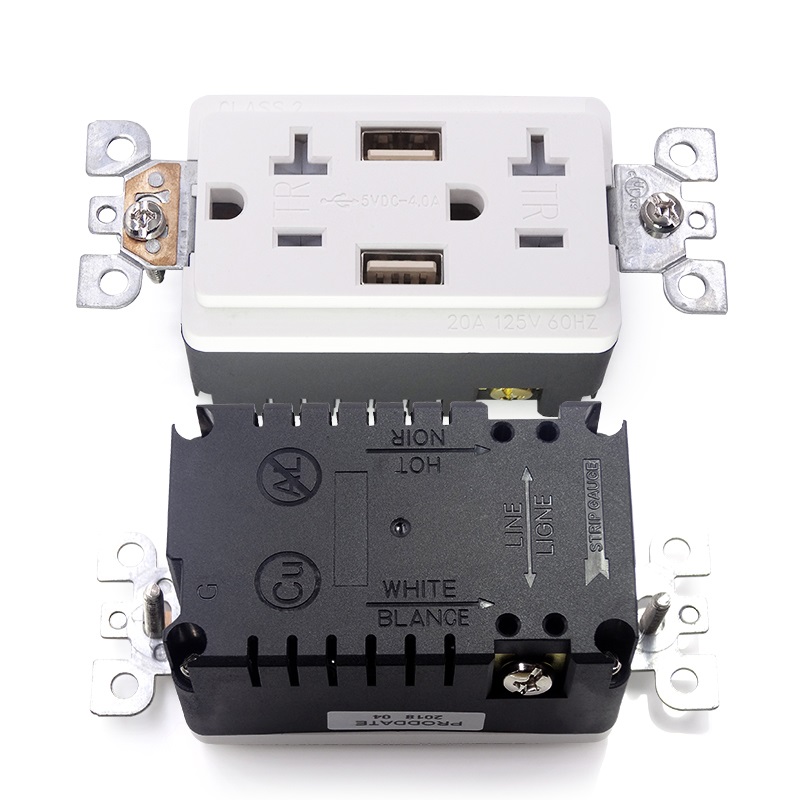

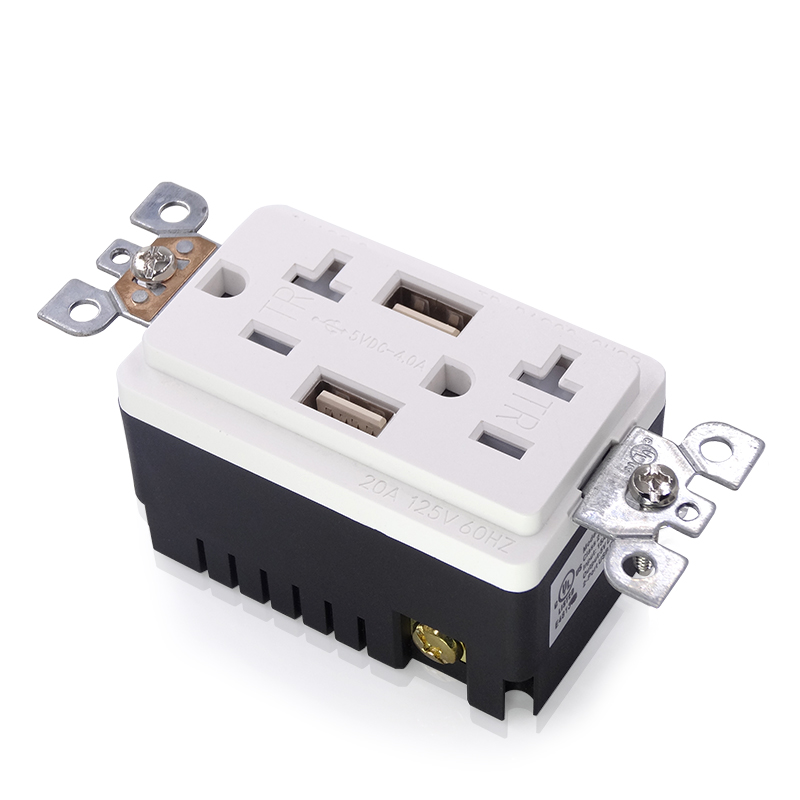

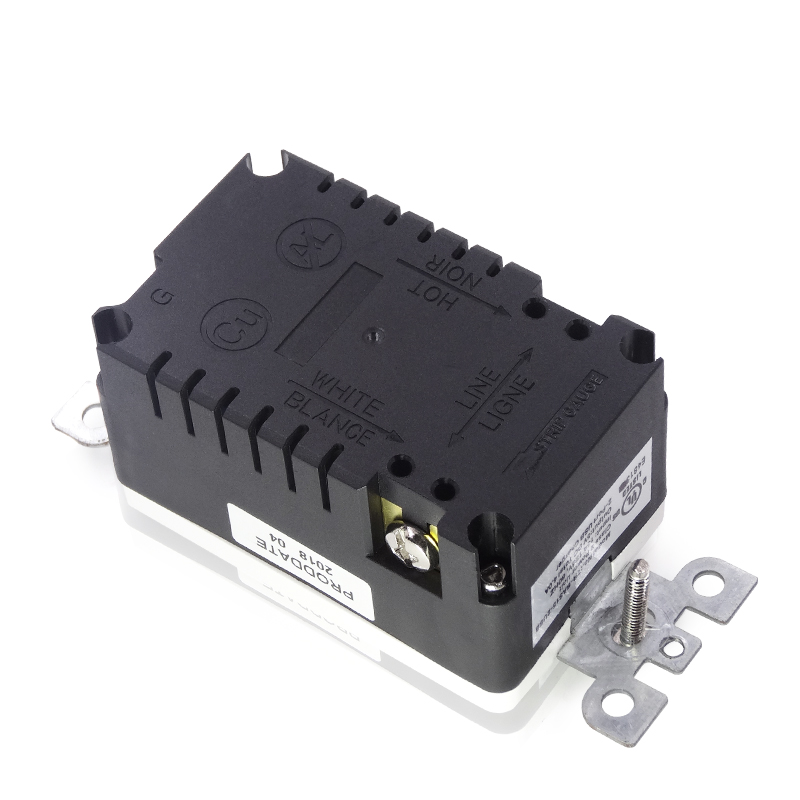

USB Extension Socket
Production Lead Time:
10 day(s)
Model No.:
B2USB-20TR
Brand:
Bosslyn
Colour:
White
Size:
105 x 44 x 45mm
Port:
Guangzhou
Type of Payment:
T/T
Minimum Order Quantity:
500
Package:
Yes
Type:
Wall Socket
Rated Voltage:
125V
Application:
Commercial, Industrial, Hospital, Residential / General-Purpose
Rated Current:
20A
Features:
with USB Charger
Grounding:
Standard Grounding
Description
Contact Supplier
Description
- USB Extension Socket 20A With Safety Shutter For American
- Mechanical characteristics
- Mechanical life
- Unloaded plug≥5000Sec Loop detection
- With automatic monitoring function
- Meet the standard
- UL498 UL943 UL file number E500632
- Housing material flame retardant grades
- Specifications、Electrical performance、Ambient temperature
- Rated working current：20A
- Rated working voltage：125V
- Power frequency： 60Hz
- Tripping threshold：5mA Tripping time＜25ms
- Surge current：6000V/3000A 6000V/10KA
- Electric strength：Pressure resistance1500V 50Hz Duration 1Min
- Working temperature：-35℃~66℃
- Insulation resistance：＞5MΩ（DC500V）
- Short-circuit current：10KA
- Colour： Black Brown White Ivory Almond Grey
