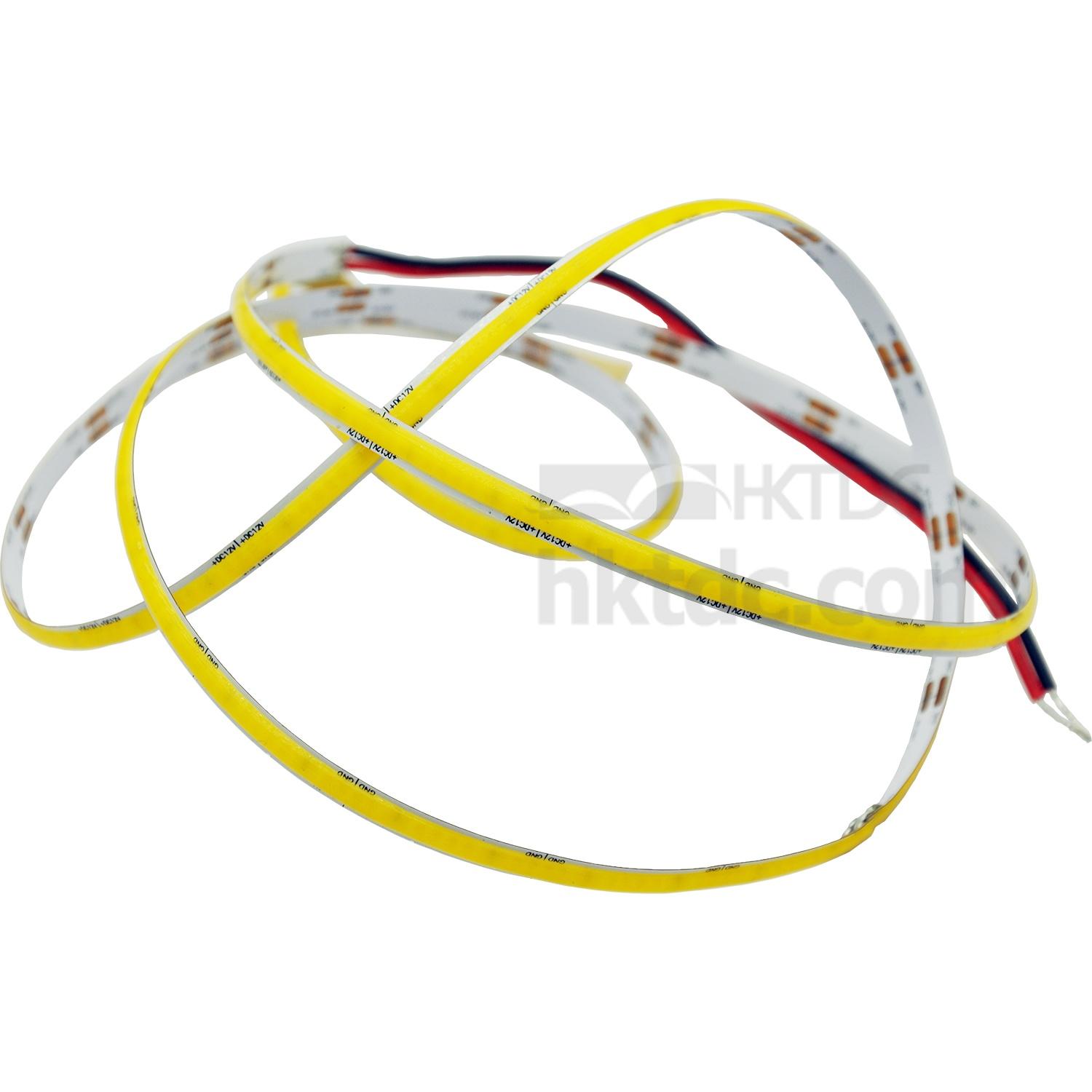

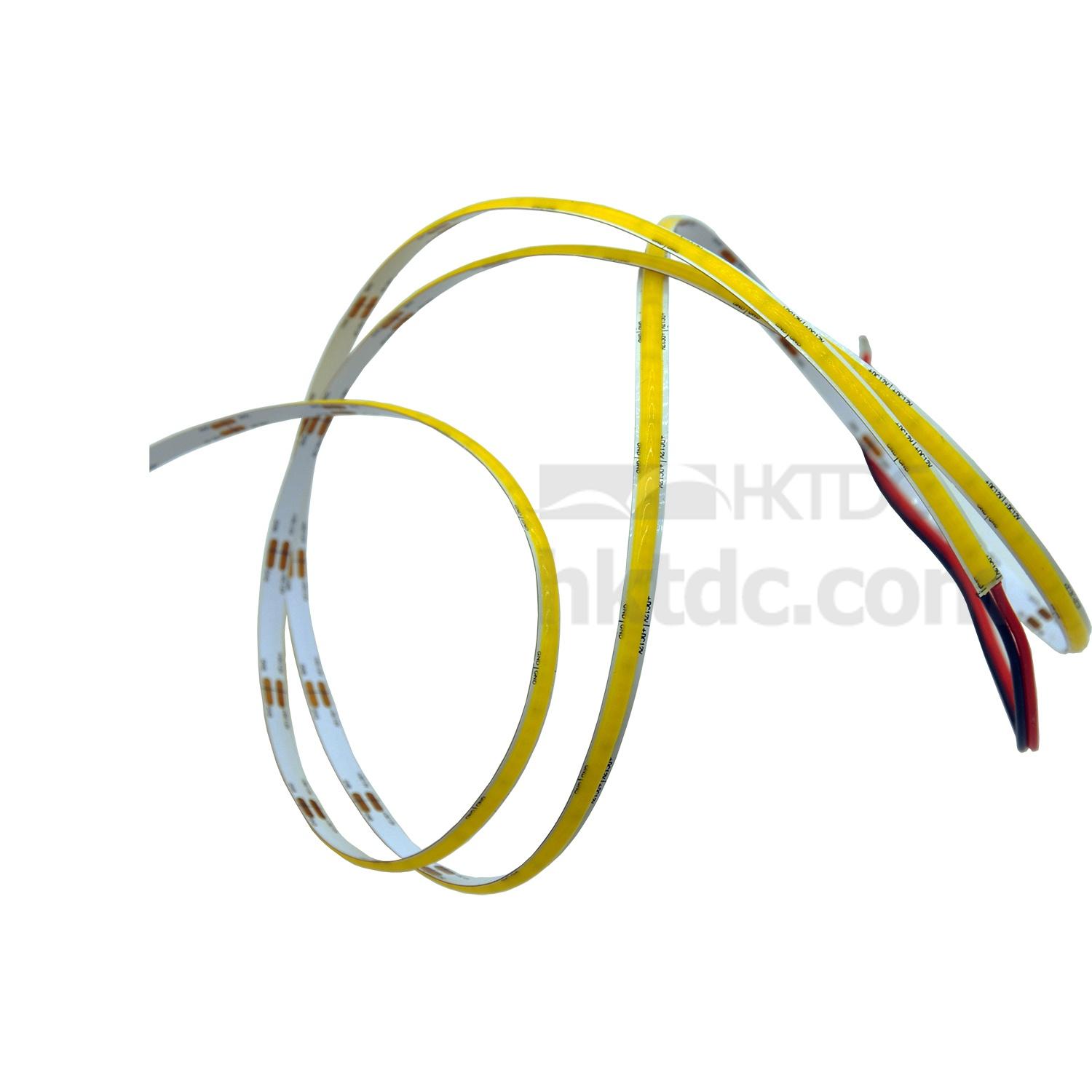

Ultra slim 4.5mm COB Strip Lights
Production Lead Time:
25 day(s)
Model No.:
HH-SX528F004W12-COB
Brand:
Wisva lighting
Colour:
R/G/B/Y/WW/NW/CW
Size:
5000mmx8mmx1.6mm
Port:
SHENZHEN
Type of Payment:
TT/LC/Paypal
Minimum Order Quantity:
100
Voltage (V):
12VDC
Wattage (W):
7.2W/m
Power Source:
DC
Shape:
Linear Lights
Customized:
Yes
Description
Contact Supplier
Description
SPECIFICATIONS:
Item NO. 12V: HH-SX528F004W12-COB
LED Chip/Meter: 528
Input Voltage: 12VDC
PCB: 4.5mm 2oz
Power: 7.2W/M
Ra: 80+ or 90+
CCT: 2700K/3000K/4000K/6000K
Brightness: 756Lm/m
Efficiency: 105Lm/W
Length: 1m
Size Width: 4.5mm; Height: 1.6mm
Cutting Length: 27.3mm or 45.45mm
Lifespan: 50,000 H
Working Temperature: -20°C - 40°C
Storage Temperature: -20°C - 45°C
Warranty: 3 years
FEATURES:
Chip-on-board design, with more chips on PCB, the lighting effects are more evenly.
Up to 528 chips on single meter, only 1.89mm distance between each chip.
4.5mm PCB width, ultra slim for more applications.
Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop.
Item NO. 12V: HH-SX528F004W12-COB
LED Chip/Meter: 528
Input Voltage: 12VDC
PCB: 4.5mm 2oz
Power: 7.2W/M
Ra: 80+ or 90+
CCT: 2700K/3000K/4000K/6000K
Brightness: 756Lm/m
Efficiency: 105Lm/W
Length: 1m
Size Width: 4.5mm; Height: 1.6mm
Cutting Length: 27.3mm or 45.45mm
Lifespan: 50,000 H
Working Temperature: -20°C - 40°C
Storage Temperature: -20°C - 45°C
Warranty: 3 years
FEATURES:
Chip-on-board design, with more chips on PCB, the lighting effects are more evenly.
Up to 528 chips on single meter, only 1.89mm distance between each chip.
4.5mm PCB width, ultra slim for more applications.
Double layer 2oz PCB, for better flexibility, heat dissipation and voltage drop.
