Ultra-thin ip20 plastic linear cabinet constant current 700mA 20w 0-10v dimmable led driver with pfc

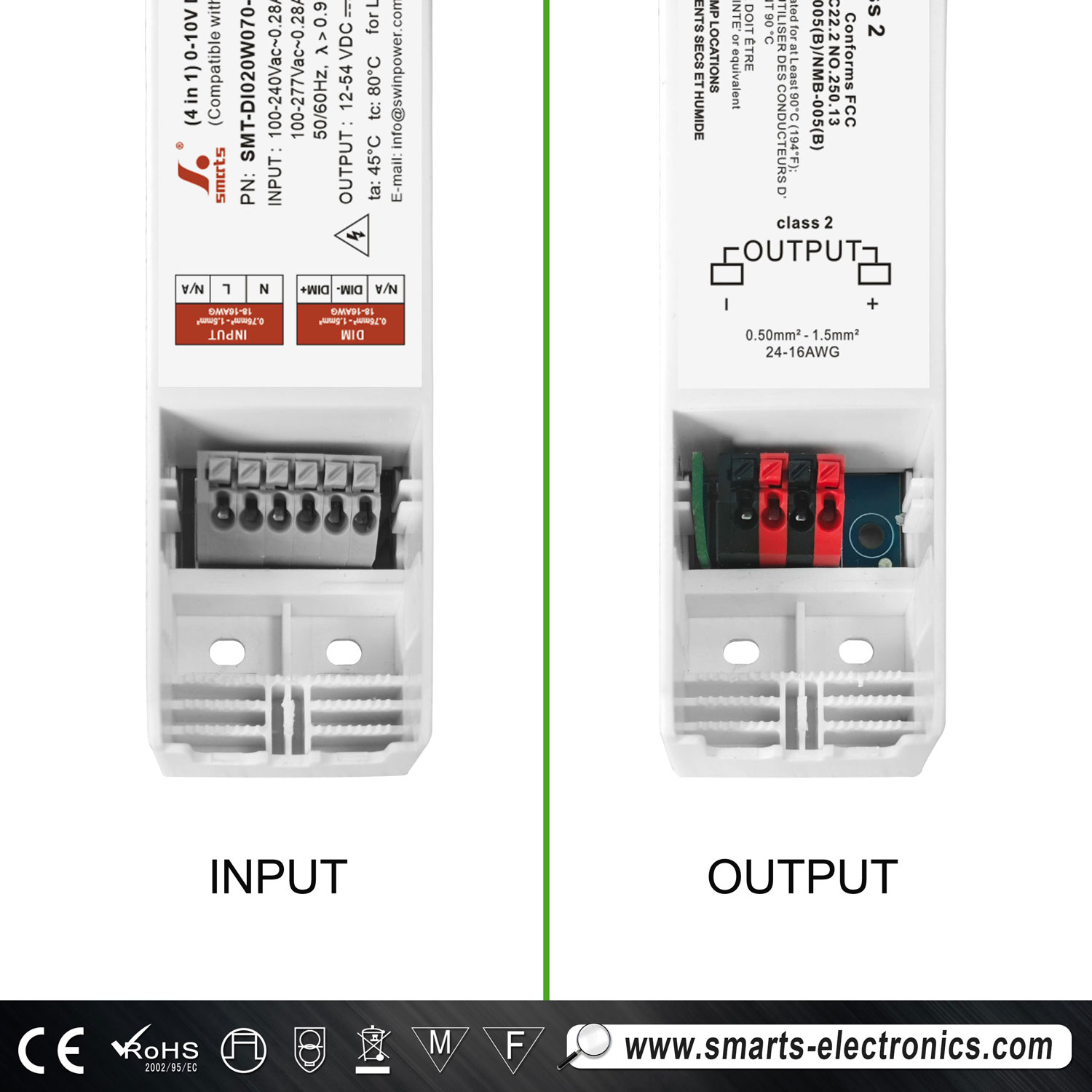

Output:

Constant Current

Range:

100-277VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 81%

Protections:

Short circuit/ Over load/ Over temperature/Over voltage

Heat dissipation:

Cooling by free air convection

Waterproof performance:

Full plastic protection housing, for dry & damp locations .

Design features:

0-10V signal-end isolation,Driver parameters can be adjusted by NFC APP.

Dimming function:

0-10V dimming, 1-10V dimming, flicker free

Min load:

0.3%-100%

Description

Contact Supplier

Model		SMT-DI020W070-CDP-T
Certificate		UL/FCC/CE /ClassP/Class2/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA
Output	On-load voltage range	12-54V
	Output Current Setting(loset)	70-700mA
	Range	70-700mA
	Output Current Setting Range	370-700mA
	with Constant Power	370-700mA
	Rated power	20W(Max)
	No Load Output Voltage	60V(Max)
	Current Tolerance	700mA±5%
	Total Output Current Ripple	20mA(Imax)
	Startup Overshoot Current	9%(Max)
	Line Regulation	<0.5%
	Load Regulation	<0.5%
Input	Voltage Range	100-277VAC
	Frequency Range	50/60Hz
	Standby Power	≤0.5W
	Power Factor (Typ.) @ full load	0.99@120VAC 0.97@230VAC 0.93@277VAC
	THD(Typ. ) @ full load	<10%@100-277VAC
	Efficiency(Typ.) @ full load	82%@120VAC 82%@230VAC 82%@277VAC
	AC Current (Max.)	<0.3A@120VAC <0.22A@230VAC <0.15A@277VAC
	Standby power	≤0.5W
	Inrush Current (Typ.)	17.5A, 50%, 29.1us @120VAC; 33.6A, 50% 864us @277VAC 40.4A, 50% 26us @277VAC
	Leakage current	<0.5mA
Protection	Short Circuit	Constant current mode, recovers automatically after fault condition is removed
	Over Load	≥110% Constant current mode,recovers automatically after fault condition is removed
	Over temperature	Ambient temperature over 50℃±5℃ to reduce output to 50%;
		The ambient temperature drops to 40℃ ±5℃and automatically recovers.
		Ambient temperature over 60℃±5℃ to reduce output to 0%;
		The ambient temperature drops to 40℃ ±5℃and automatically recovers.
Environment	Working TEMP.	-40~+45℃ (see below derating curve)
	Working Humidity	20 - 95%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH non-condensing
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	UL8750;EN61347-1
	Withstand voltage	I/P-O/P:1.88KVAC(MAX 3.75KVAC)
	Isolation resistance	I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH
	EMC Immunity	IEC/EN61000-4-2,3,4,5,6,8,11; EN/EN61547
	EMC Emission	EN55015 EN61000-3-2,3 FCC Part15 Subpart B；ANSI C63.4:2014
	Surge Immunity Test	AC Power Line:Differential Mode 2 kV,
Others	Net Weight	215g
	Dimension	251.93122.5mm(LWH)
	Packing	290225215mm 50pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at 120VAC input, rated load and 25℃of ambient temperature.
	2. Default states:
	Output Current Setting is Maximum value.
	The dimming curve is a logarithmic curve.
	3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation agai
	4. To extend the driver's using life , please reduce the loading at lower input voltage .
	5. Dimming electrical circuit:
	Notice: This control circuit is isolated,but didn't evaluate Class 2.
	Please refer to the installation manual to connect the dimmer.
	CAUTlON: More than one power supply present.
	ATTENTION: presence de plusieurs alimentations électriques.
