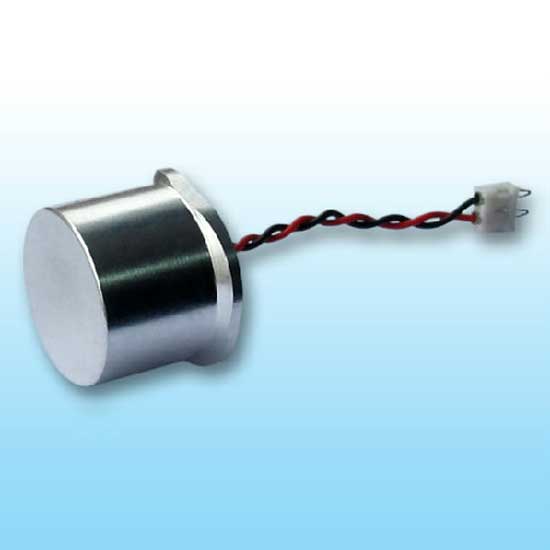

The ultrasonic parking sensor employs ultrasonic technology to accurately detect objects and measure distances. It generates high-frequency sound waves and evaluates the echo which is received by the sensor. It is perfect for car parking use or other electronic applications.

• Center frequency: 48KHz.
• Echo sensitivity (mV): 700±150.
• Decay time (ms): ≤2.00.
• Capacitance (pF): 1,800±200 (25±2°C,1KHz).
• Allowable maximum input voltage (Vp-p): 140.
• Mean time to failure: 50,000 hours.
• Operating temperature: -40-85℃.
• Storage temperature: -40-85℃.
