Ultrathin High-Adaptability Triac CV Series _ LED Power Supply
Production Lead Time:
35 day(s)
Shipping Method:
Support Sea freight
Brand:
HENGJIE
Feature:
Constant Voltage Dimming
Customised:
Yes
Model No.:
Ultrathin High-Adaptability Triac CV Series
Size:

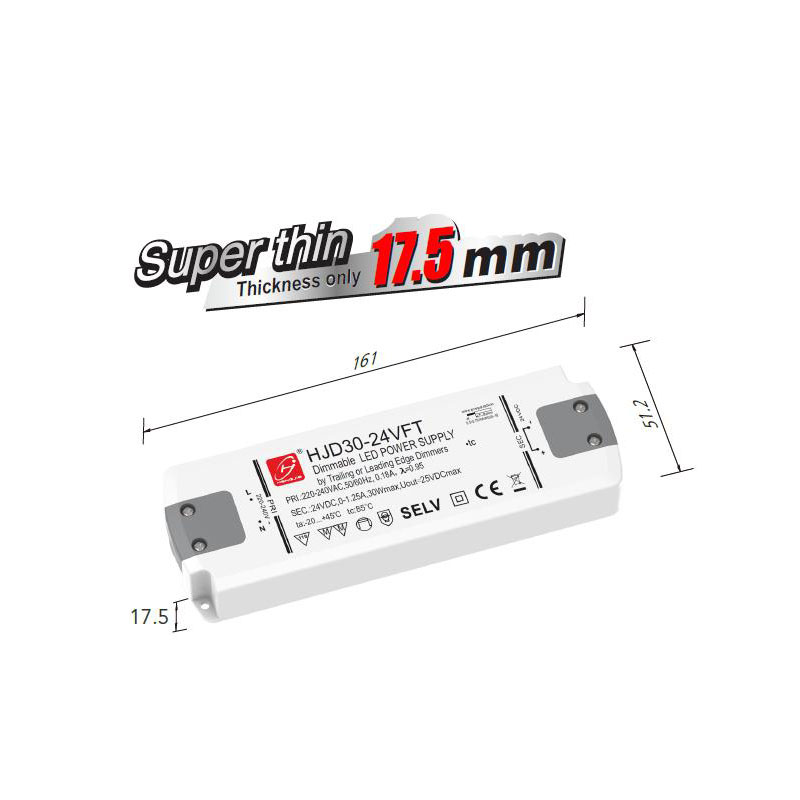

161×51.2×17.5/166×56.7×22
Output:
12/24V DC
Ta:
-20…+45℃
Tc:
90℃
Approval:
ENEC pending
PF:
0.95
Rated input:
AC220-240V
Tolerance:
+/-5%
Output power range:
0-30W/0-50W
Description
Contact Supplier
Description
Product Description

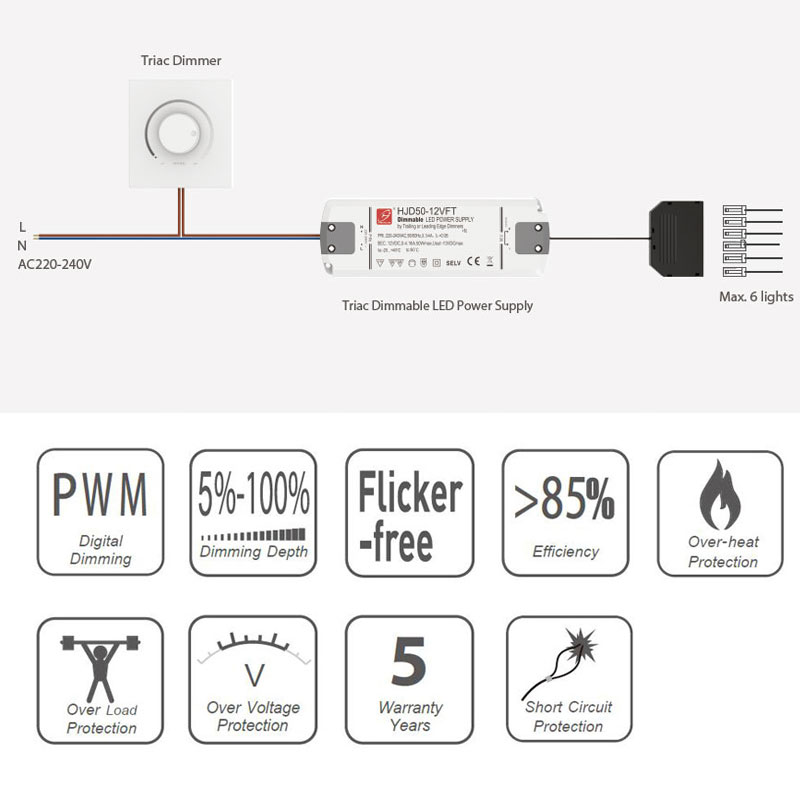

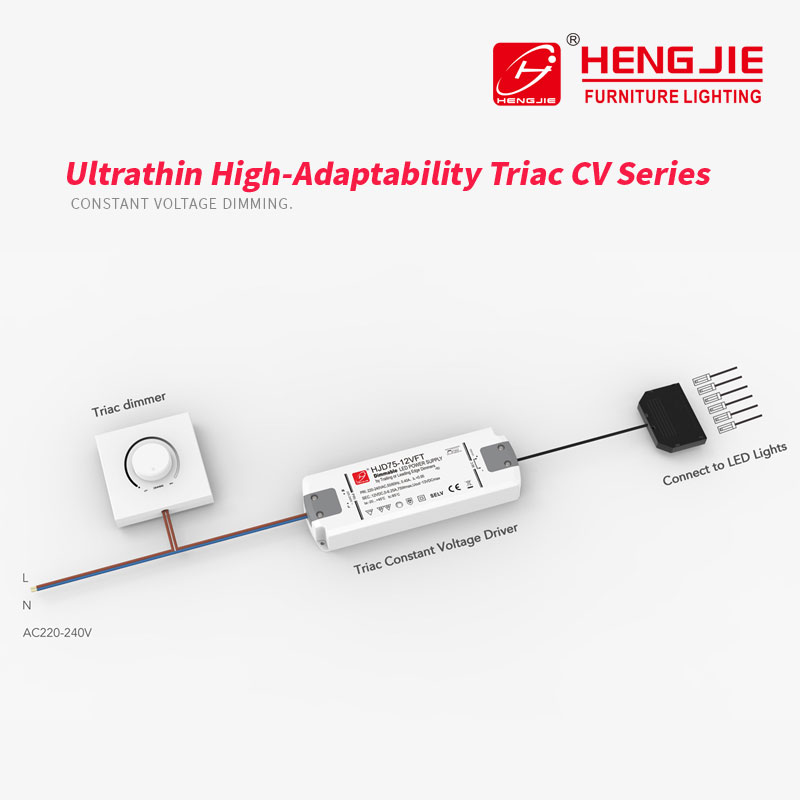

- Independent TRIAC power supply for constant voltage LED lamp
- Terminal block for quick connection
- Class II protection against electric shock for direct or indirect contact
- Good flicker suppression
- Noise isolation technology

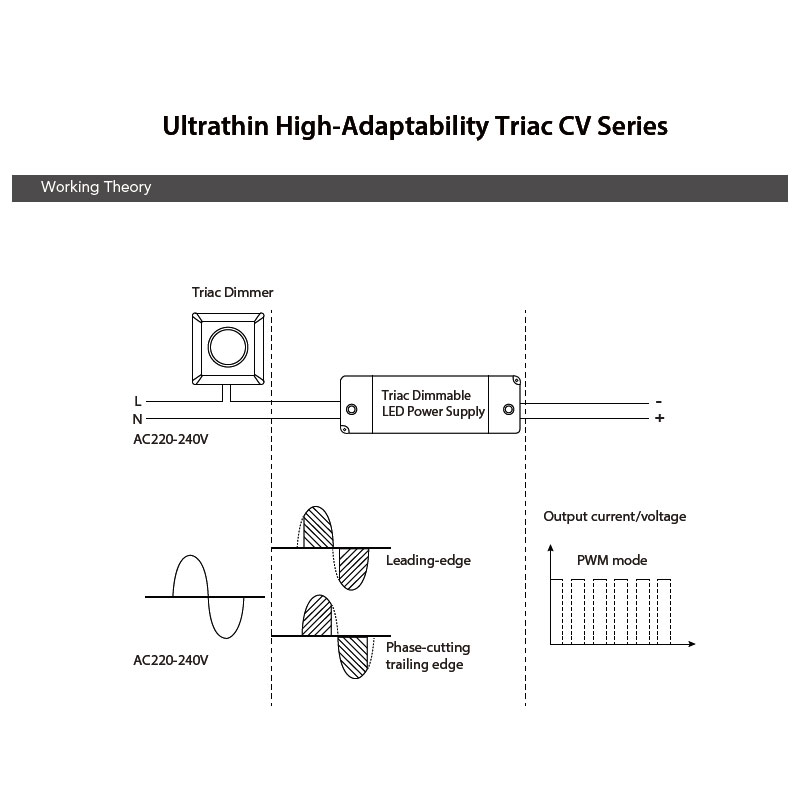

- The output power of the power supply could be dimmed between
- 5%-100% by trailing or leading edge dimmers
- Super thin size design
- Driver can be secured with slot for screws
- Fast start-up time ≤0.5s, SELV output
- Compliance to ERP directive
- Protections:- against open and short circuits；- against overheating；- against overloads
- 5-year warranty
Safety & EMC Standard
- Safety According to EN 61347-1,EN 61347-2-13
- EMI According to EN 55015
- EMS According to EN 61000-3-2,EN 61000-3-3,EN 61547
- EMF According to EN62493-2010
- ERP According to EN1194-2012
