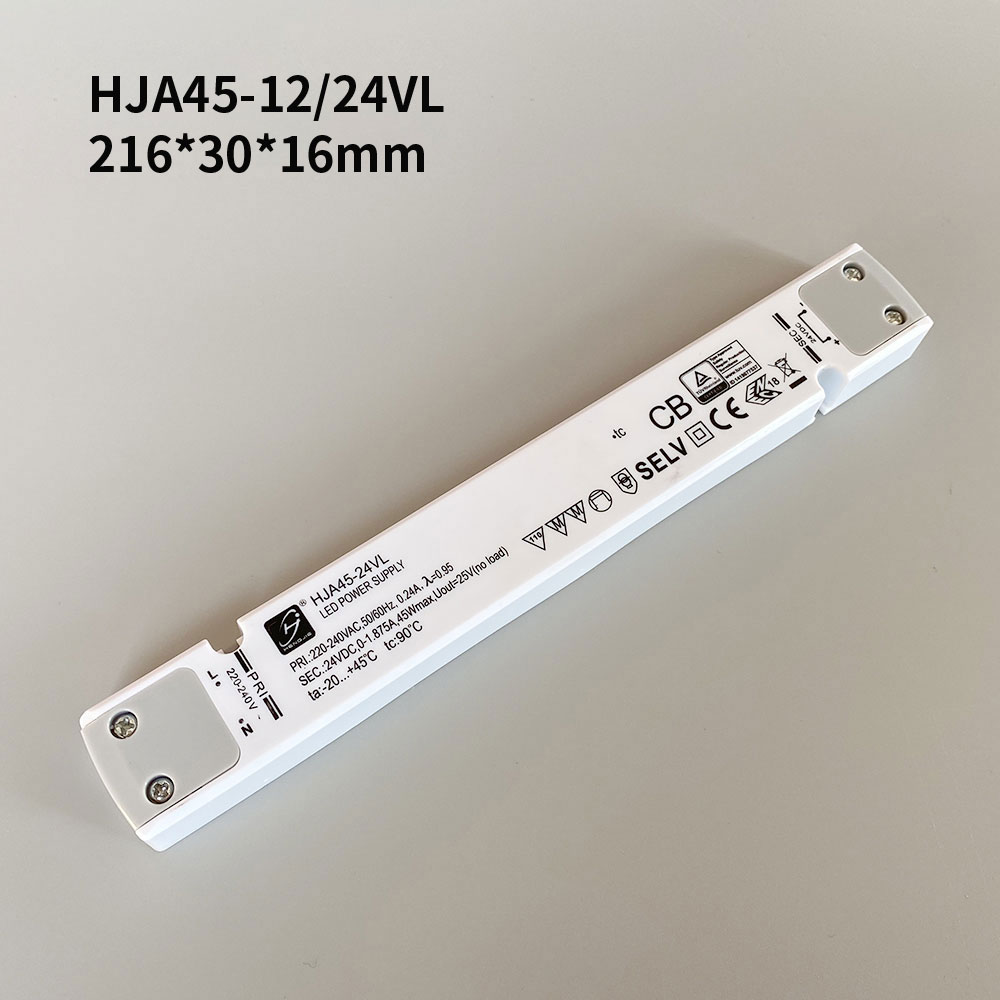

Product Description

• Independent power supply for constant voltage LED lamp
• Terminal block for quick connection
• Class II protection against electric shock for direct or indirect contact

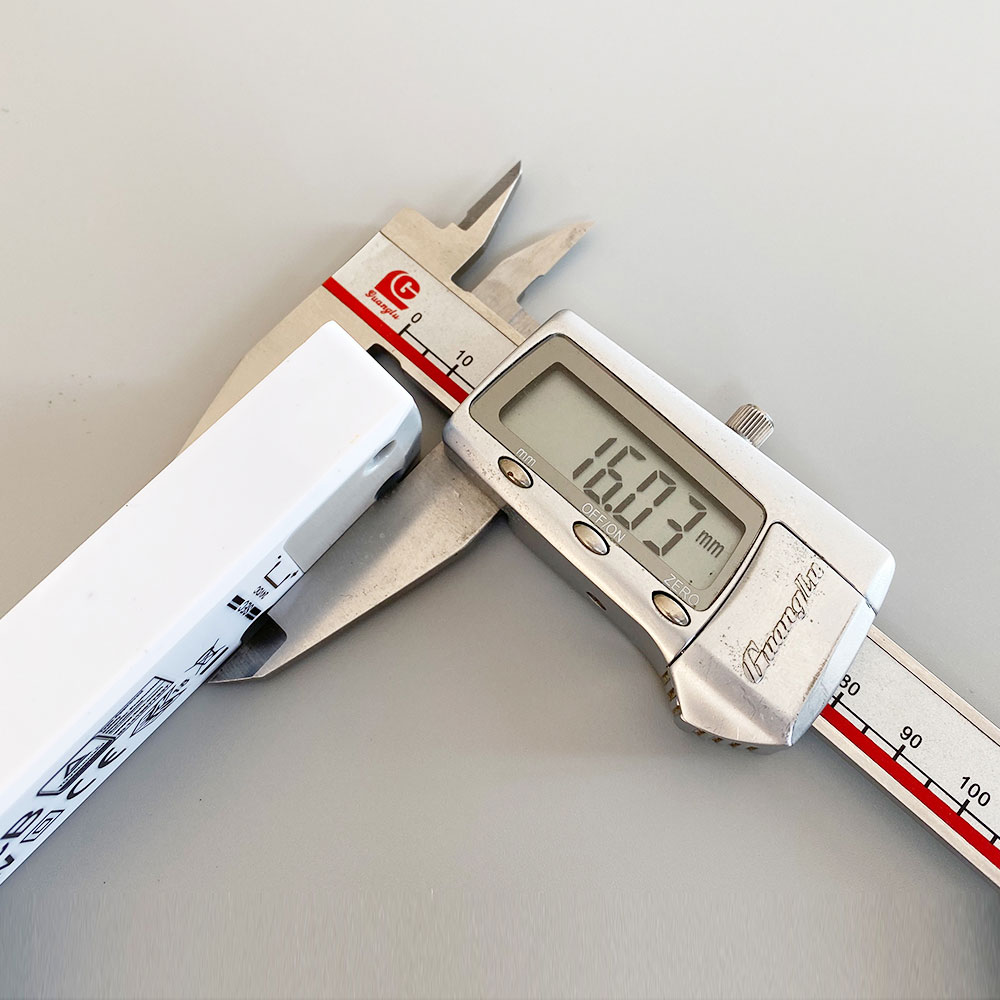

• super thin and shortest size design
• Driver can be secured with slot for screws
• Fast start-up time ≤0.5s, SELV output
• Compliance to ERP directive
• Noise isolation technology
• Suitable for low voltage controller of different frequency
• Slim dimension for narrow areas such cabinets
• Protections: against open and short circuits; against overheating; against overloads
• 5-year warranty

Application

• Cabinet and strip lighting
• Light box backlight

Safety & EMC Standard

• Safety According to EN 61347-1,EN 61347-2-13
• EMI According to EN 55015
• EMS According to EN 61000-3-2,EN 61000-3-3,EN 61547
• EMF According to EN62493-2010
• ERP According to EN1194-2012

Technic Data

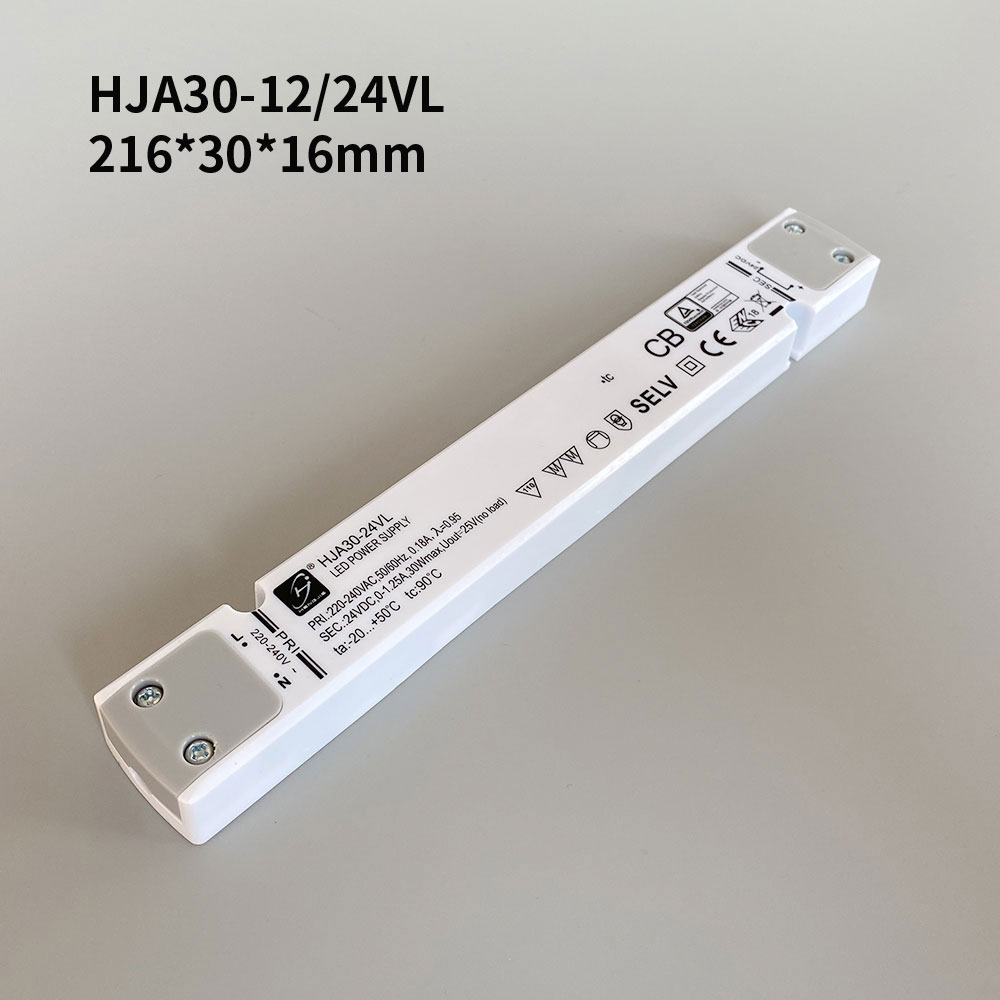

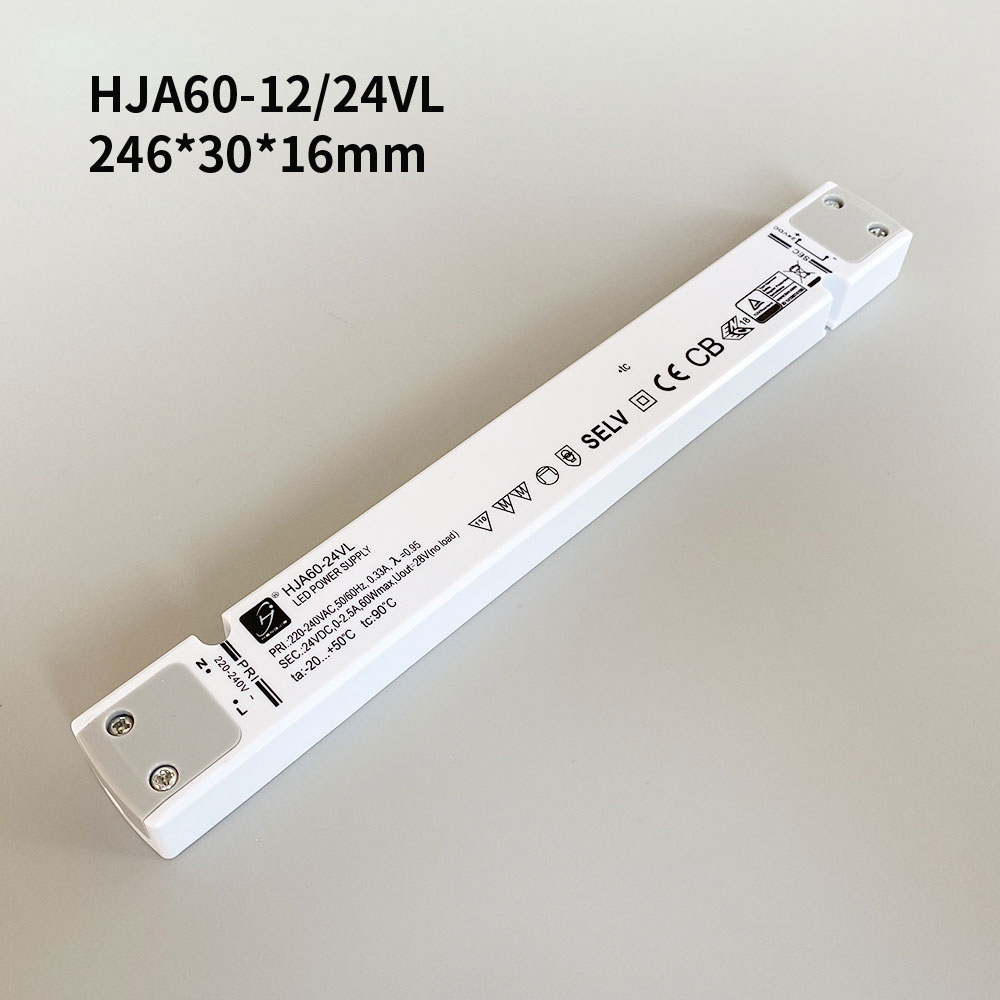

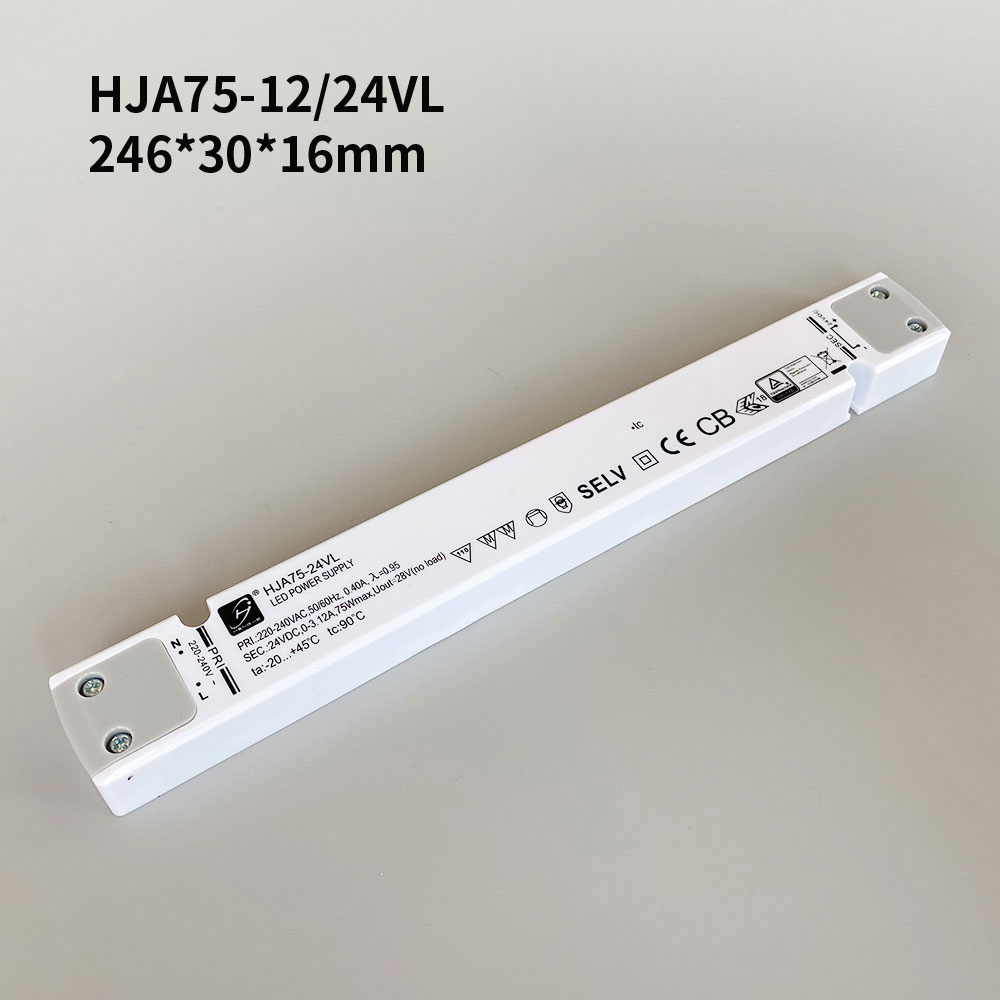

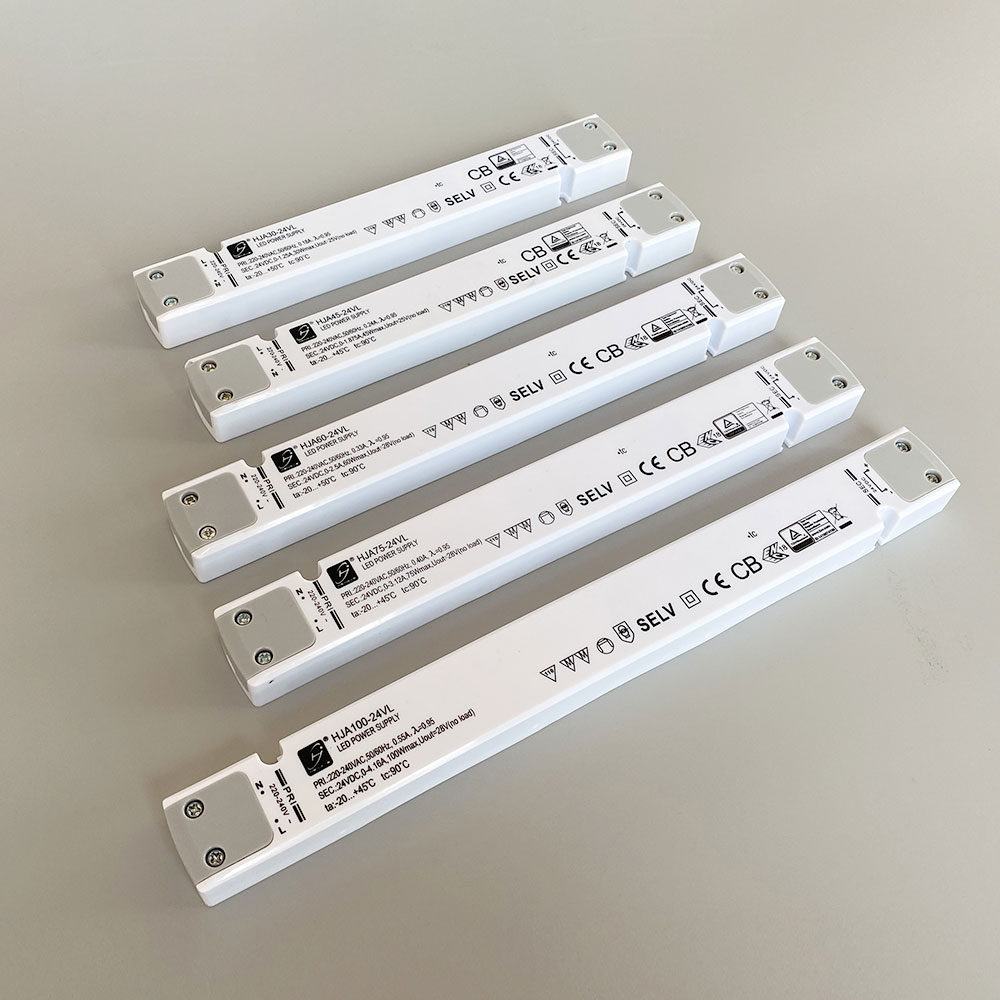

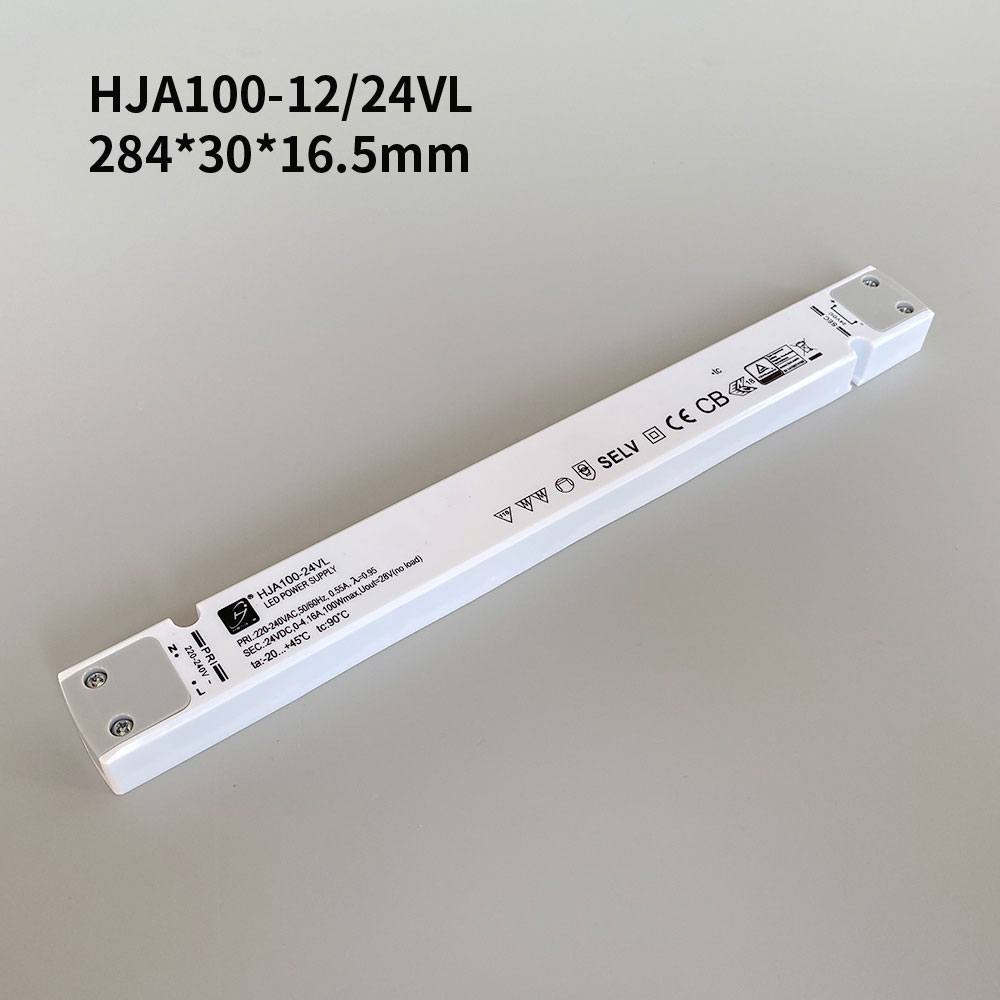

• ITEM CODE: HJA30-12/24VFM/HJA45-12/24VFM /HJA60-12/24VFM/HJA75-12/24VFM/HJA100-12/24VFM
• Output: 12V DC / 24V DC
• PF: 0.95
• Tolerance: +/-5%

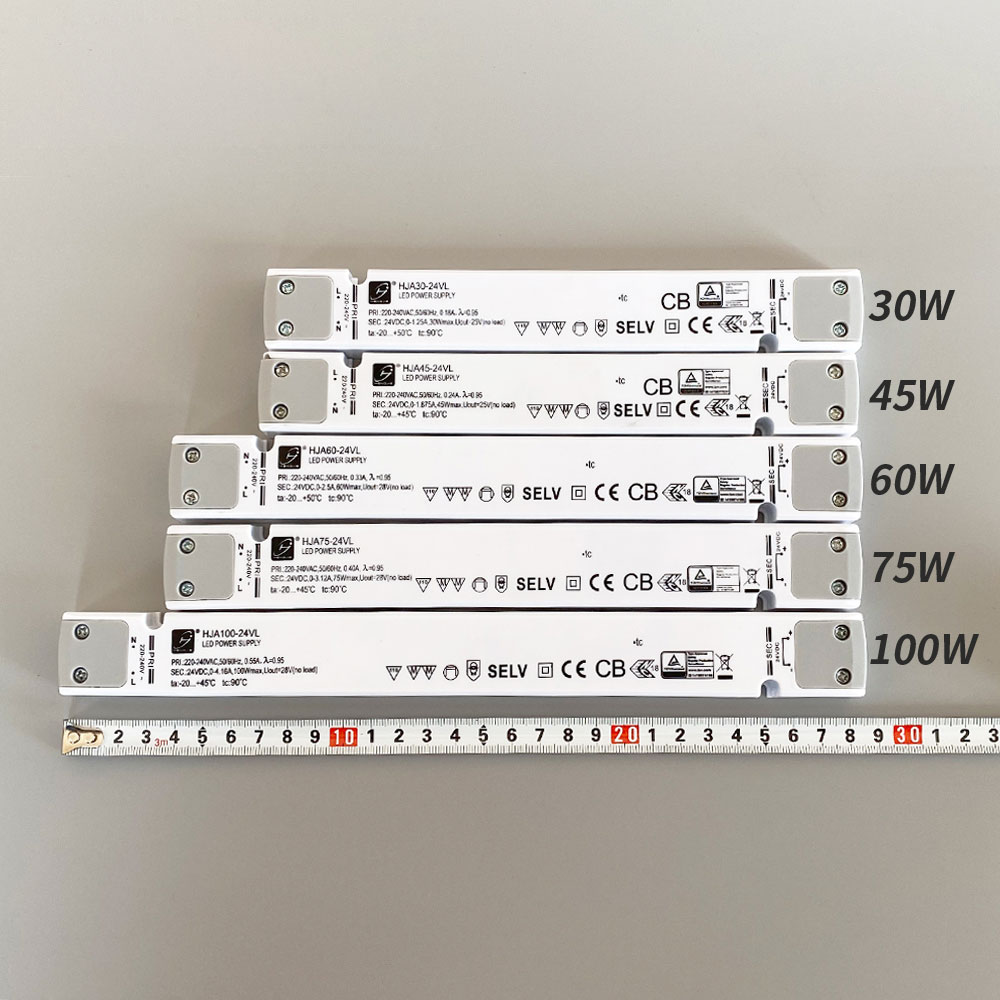

• Output power range: 0-30W/0-45W/0-60W/0-75W/0-100W
• Efficiency: 92%
• ta: -20…+45℃
• tc: 90℃
• Approval: ENEC TUV
