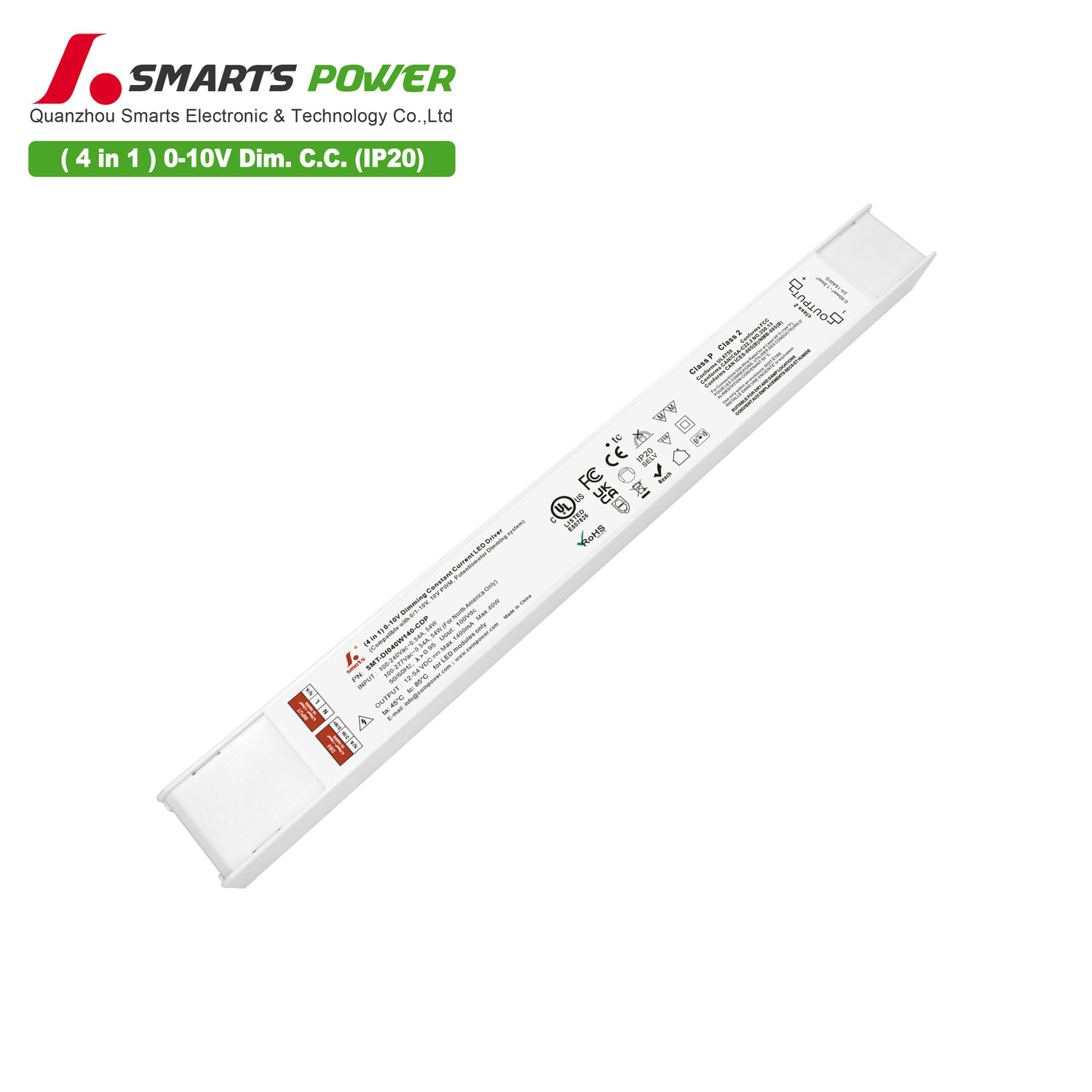

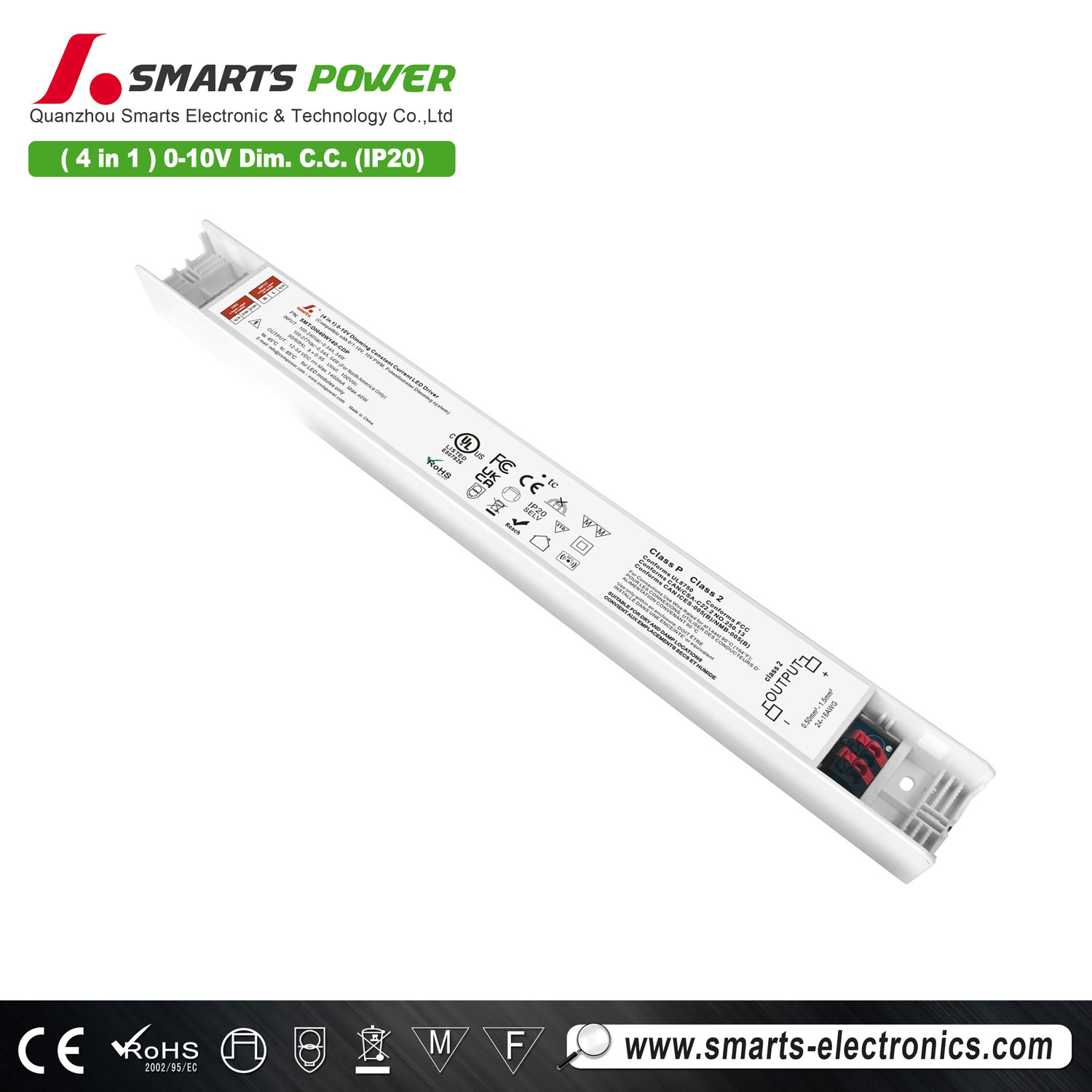

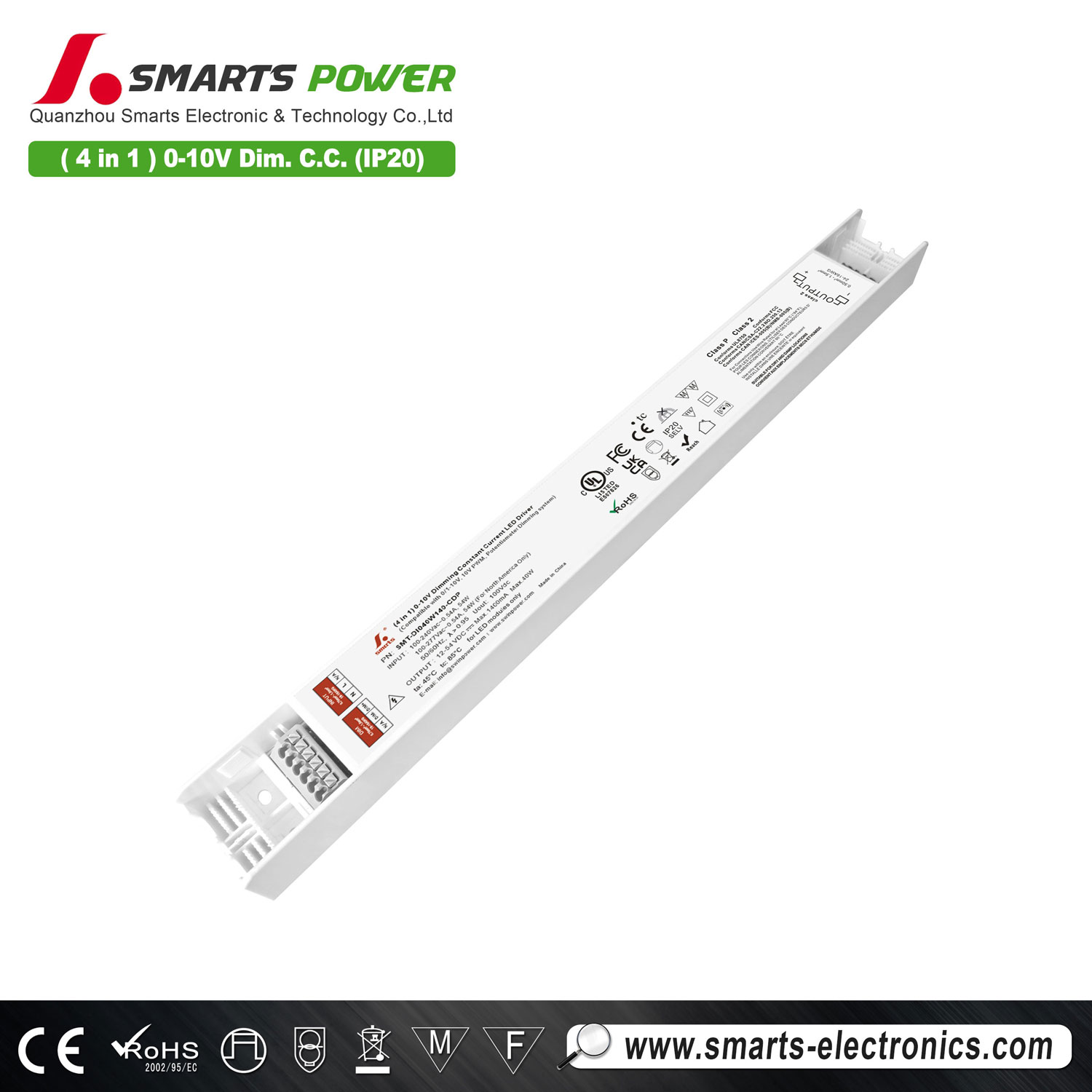

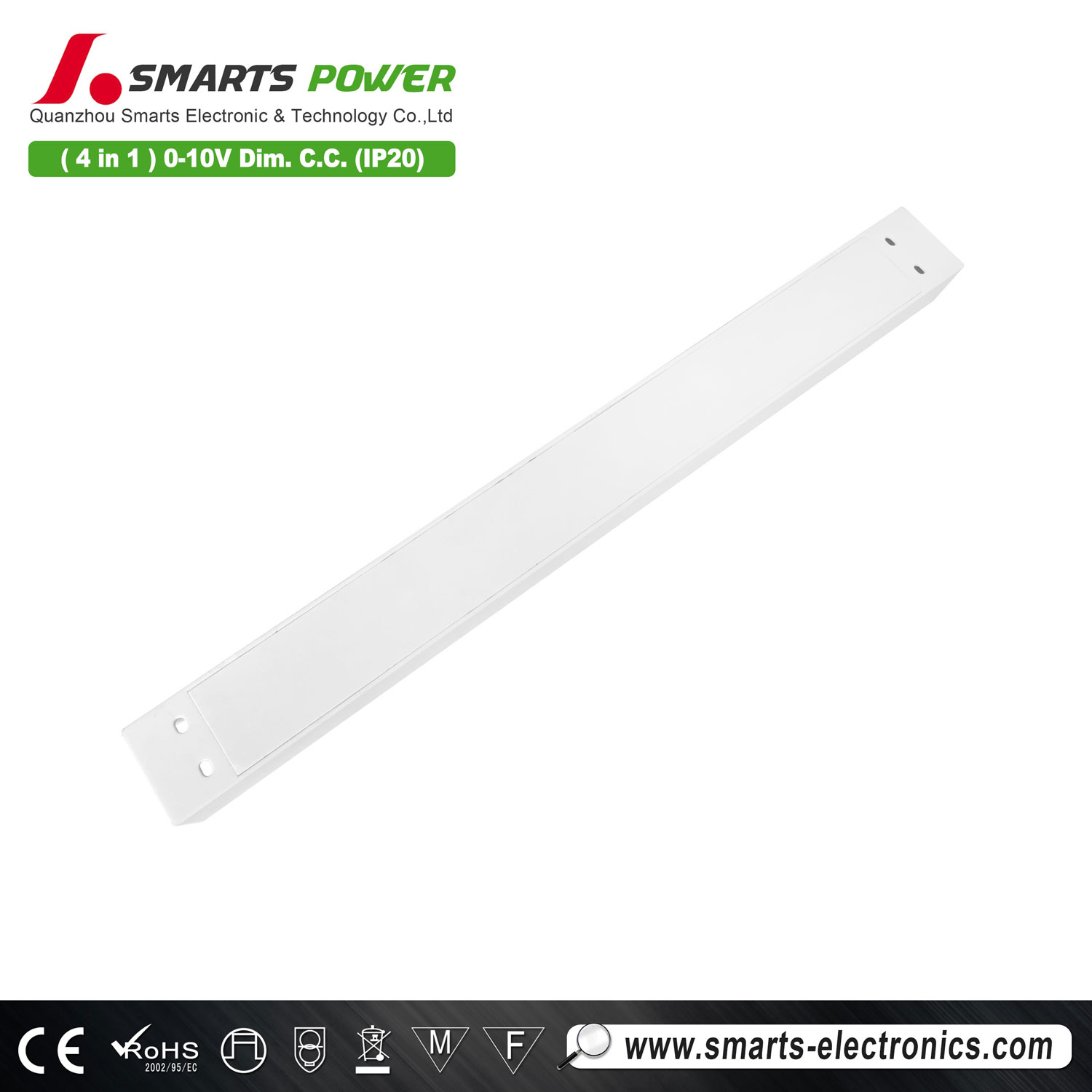

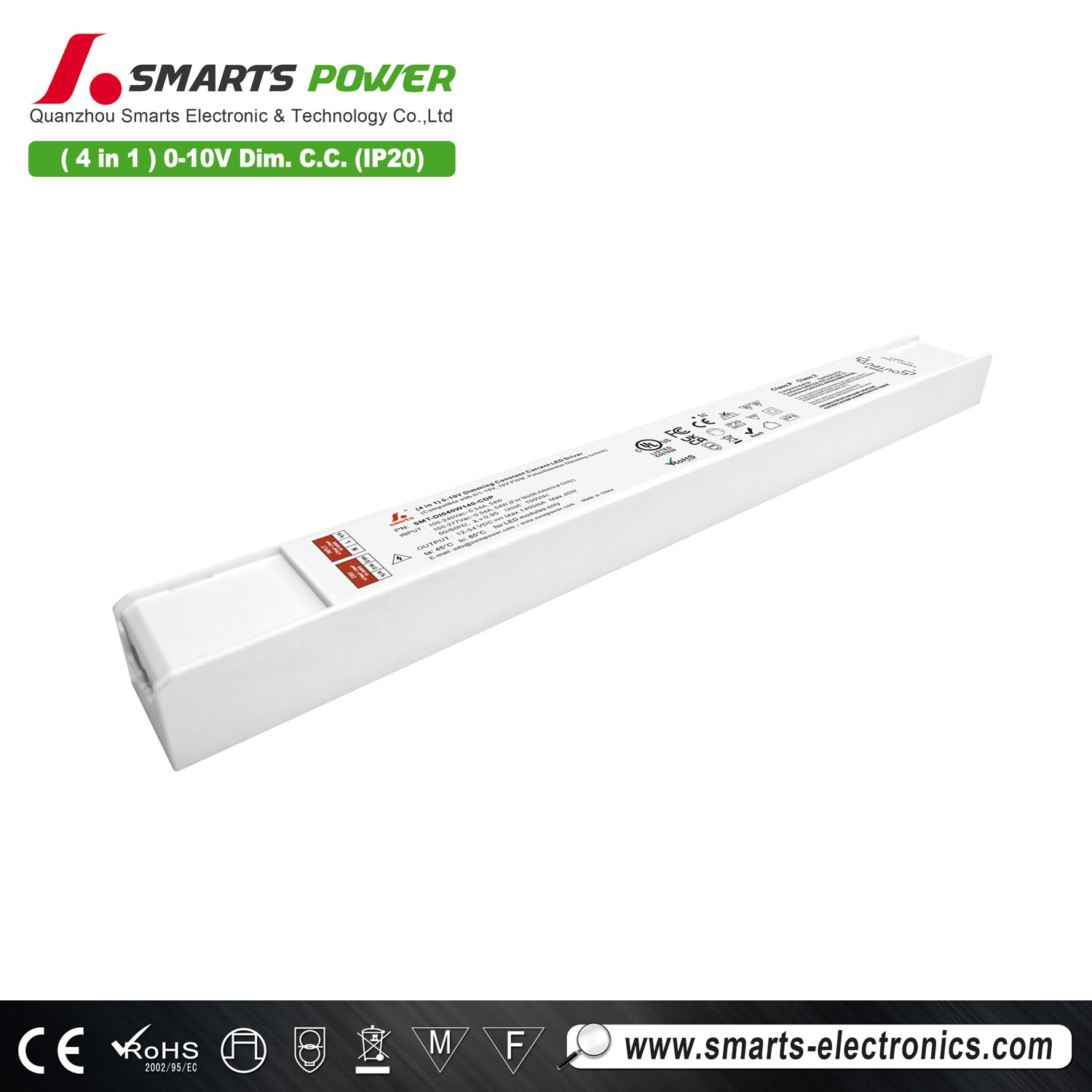

Universal Regulated Switching Power Supply Constant Current Hight Pfc 0-10v 40w 1400mA Dimmable Led Driver

Output:

Constant Current

PFC design:

Built-in active PFC function

Efficiency:

Up to 81%

Protections:

Short circuit/ Over load/ Over temperature/Over voltage

Heat dissipation:

Cooling by free air convection

Waterproof performance:

Full plastic protection housing, for dry & damp locations .

Design features:

0-10V signal-end isolation,Driver parameters can be adjusted by NFC APP.

Dimming function:

0-10V dimming, 1-10V dimming, flicker free

Dimming range:

0.3%-100%

Description

Contact Supplier

Model		SMT-DI040W140-CDP-T
Certificate		UL/FCC/CE /ClassP/TYPE HL/SELV/ RoHS / Reach/ENEC/ICES/UKCA
Output	Rated current	140mA-1400mA
	DC Voltage	12-54VDC
	Rated power	60Wmax
	Voltage Tolerance	Output current ± 20mA
	Line Regulation	<0.1%
	Load Regulation	<0.1%
Input	Voltage Range	100-277VAC
	Frequency Range	50/60Hz
	Power Factor (Typ.)	>0.99@120VAC 60Hz >0.98@230VAC 50HZ >0.95@277VAC 60HZ
	No load power (Max)	<1.5W
	Standby power (Max)	<0.5W
	THD(Typ.) @ full load	<11%@120VAC <9%@230VAC <10%@277VAC
	Efficiency @ full load	>85.4%@120VAC 60Hz
		>86.8%@230VAC 50HZ
		>86.8%@277VAC 60HZ
	AC Current (Max.)	0.5A@100VAC 60Hz
	Inrush Current (Typ.)	28.8A, 256us@50%Ipeak@120V 55.2A, 130us@50%Ipeak@230V
	Inrush Current (Typ.)	66.5A, 259us@50%Ipeak@277V
	Leakage current	<0.5mA
Protection	Short Circuit	Hiccup mode, recovers automatically after fault condition is removed
	Over voltage	Hiccup or constant power mode, reboots automatically after fault condition is removed
	Over temperature	Ambient temp. over 50± 5℃, output current will be reduced to 50%;
		Ambient temp.Over 40 ± 5℃,recovers automatically.
		Ambient temp.over 60 ± 5℃, output current will be reduced to 0%;
		Ambient temp.Over 40 ± 5℃,recovers automatically.
Environment	Working TEMP	-40~+45℃ (see below derating curve)
	Working Humidity	20 -90%RH non-condensing
	Storage TEM.,Humidity	-40 - +80℃,10 - 95% RH
	TEMP.coefficient	±0.03%/℃(0 - 50℃)
	Vibration	10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes
Safety & EMC	Safety standards	EN61347-1 EN61347-2-13(EU) & UL8750 (US)
	Withstand voltage	I/P-O/P:3.75KVAC
	Strobe test standard	IEEE 1789 Flicker free
	Surge Immunity Test	AC Power Line:Differential Mode 2KV,
	Isolation resistance	I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH
	EMC Emission	EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US)
Others	Net Weight	320g
	Dimension	324.734.824.1mm (LWH)
	Packing	340270195 50pcs /CTN
Notes	1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature.
	2. To extend the driver's using life, please reduce the loading at lower input voltage .
	3. LED driver Meets the harmonic emissions requirements of ANSI C82.77-10.

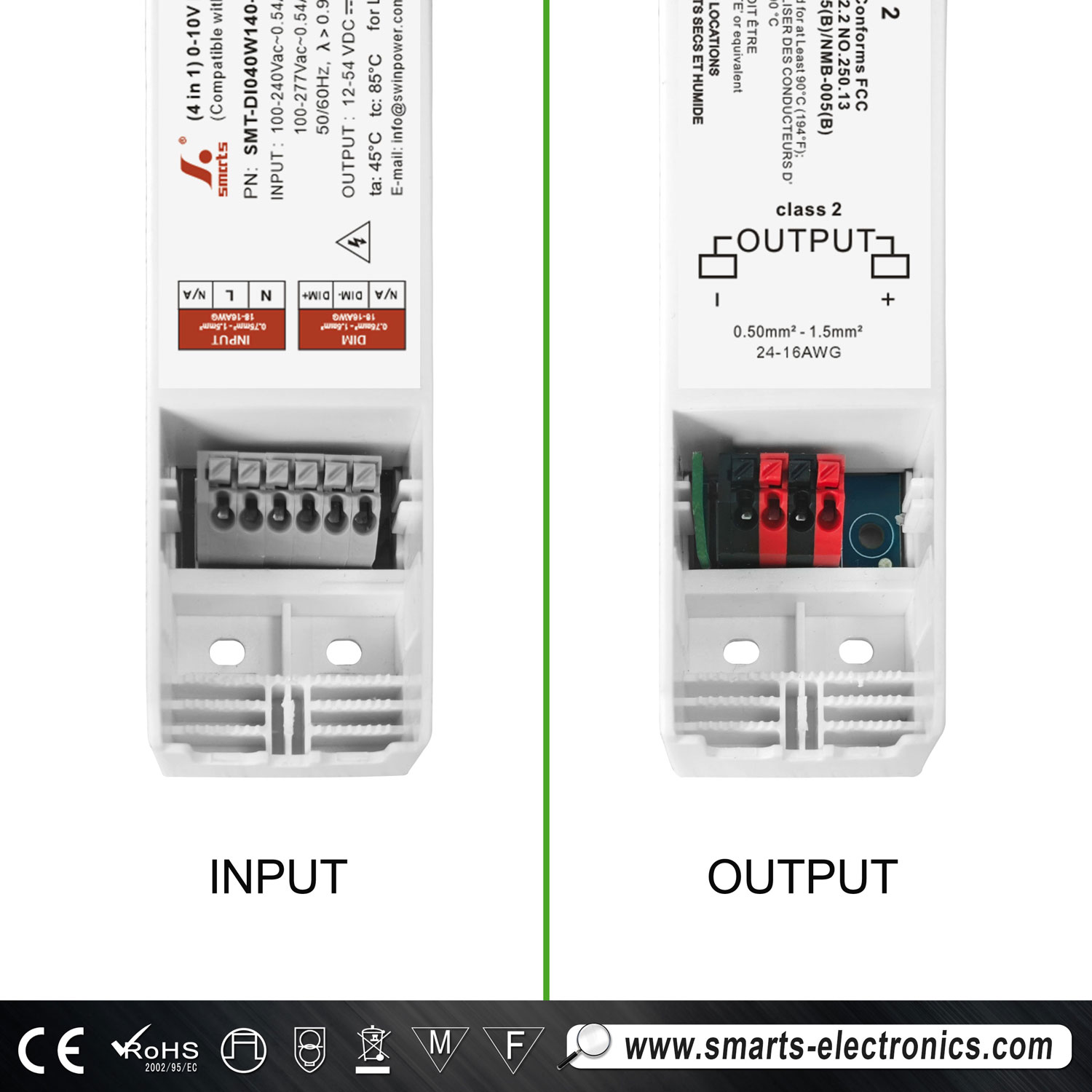

	4. Dimming electrical circuit:
	Notice: This control circuit is isolated,but didn't evaluate Class 2.
	Please refer to the installation manual to connect the dimmer.
	CAUTlON: More than one power supply present.
	ATTENTION: presence de plusieurs alimentations électriques.
