VC732A High Figure Large LCD Display Digital Multimeter
Model No.:
VC732A
Size:
190*92*50mm
Weight:
306g
Safety level:
CAT. III 600V
Max display:
2000 digits
Voltage:
AC 750V, DC 1000V
Current:
AC DC 20A
Capacitance:
2000uF
Resistance:
20MΩ
Frequency:
1MHz
Temperature:
1000℃， 1832℉
Description
Contact Supplier
Description

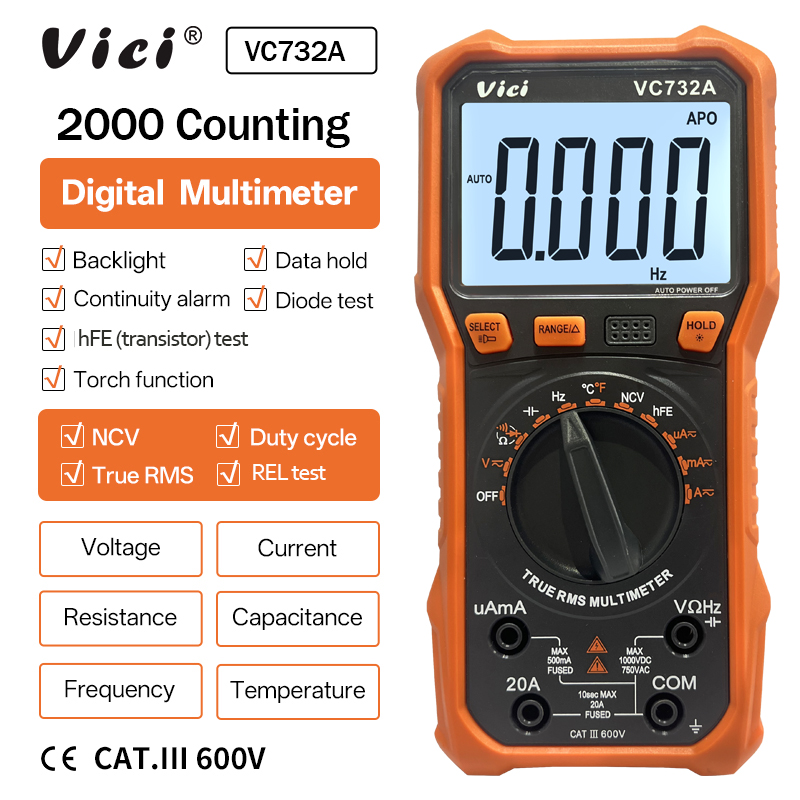

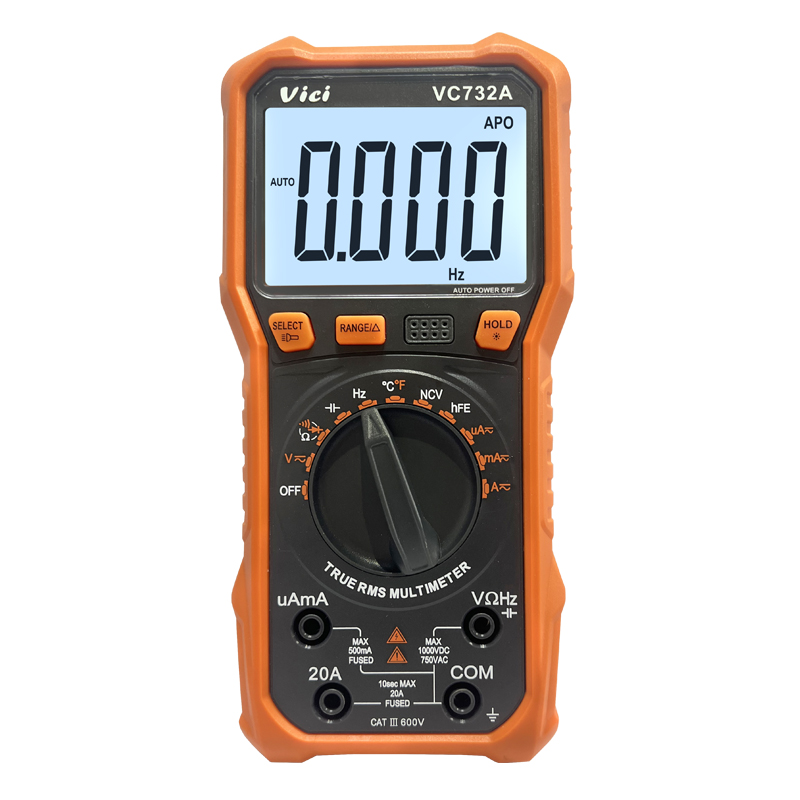

VC732A 3 1/2 Digital Multimeter
New type holster, streamlined design, comfortable handle;
Large LCD display makes reading clear;
Strong antimagnetic and anti-interferential performance; Full function protection;
Auto power off when there is no measurement in 15 minutes;
Unit symbol display, easy to read; Lighting function, backlight display.
True RMS, Non-contact voltage detect (NCV), relative value measurement, frequency/duty cycle and data hold function.
Technical Data :
Basic function | Range | Basic Accuracy |
DCV | 200mV/ 2V/ 20V/ 200V/ 1000V | ± (0.5%+5) |
ACV | 200mV/ 2V/ 20V/ 200V/ 750V | ± (0.8%+10) |
DCA | 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 20A | ± (1.0%+5) |
ACA | 200uA/ 2000uA/ 20mA/ 200mA/ 2A/ 20A | ± (1.5%+10) |
Resistance | 200Ω/ 2kΩ/ 20kΩ/ 200kΩ/ 2MΩ/ 20MΩ | ± (0.8%+2) |
Capacitance | 20nF/ 200nF/ 2uF/ 20uF/ 200uF/2000uF | ± (2.5%+5) |
Frequency | 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz | ± (0.5%+4) |
Temperature | -40℃～1000℃/-40℉～1832℉ | ± (1.0%+5) |
Special function:
Max. display | 2000 |
True RMS | √ |
NCV | √ |
Data hold | √ |
Function protection | √ |
Torch function | √ |
Backlight display | √ |
Duty cycle | 1%~99% |
Triode (hFE) test | √ |
Diode test | √ |
Continuity alarm | Less than 50Ω |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-1kHz |
Operation method | Manual or Auto range |
LCD size | 65x43.5mm |
Battery | 3V (2*AAA battery) |
Power consumption | Quiescent current about 2mA |
General Info:
Meter color | Orange + Grey |
Meter weight | 306g (including battery) |
Meter size | 190×92×50mm |
Standard accessory | Test leads, battery, manual, TP01 temperature probe |
Standard packing | 30pcs |
G.W. per carton | 15kg |
Carton size | 43.5*29.5*42.5cm |
