VC8045 Bench Type Multimeter 20000 Counts True RMS 1000V 20A AC+DC measurements
Model No.:
VC8045
Size:
245×220×82mm
Weight:
1.5kg
Safety level:
CAT. III 600V
Max display:
20000 digits
Voltage:
AC 750V DC 1000V
Current:
AC DC 20A
Capacitance:
200μF
Resistance:
20MΩ
Frequency:
200kHz
Description
Contact Supplier
Description

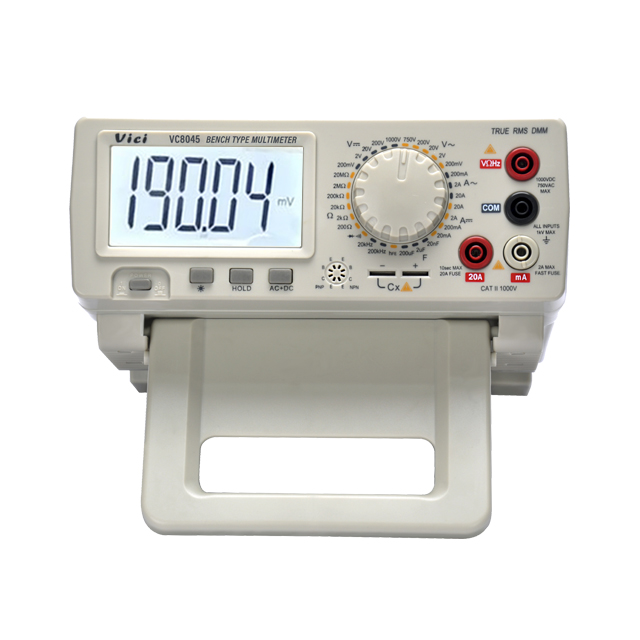

VC8045 4 1/2 Bench type Digital Multimeter
Features:
1. 4 1/2 digit large LCD display with backlight;
2.With the DCV、ACV、DCA、ACA、Ω、CAP、Hz、hFE、diode and continuity test function;
3. Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;
4. Max. current measuring: 20A, polarity automatic switch，data hold，backlight
5. AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring
General Characteristic：
Color | Body: beige |
Weight | 1.5kg |
Meter size | 245×220×82mm |
Standard accessory | Test leads, power cord, manual |
Packing | Gift box |
Standard quantity per CTN | 8pcs |
Carton size | 60*31*64CM |
Standard G.W. per CTN | 18.3kg |
Technical Data:
Basic function | Range | Basic accuracy |
DCV | 200mV/2V/20V/200V/1000V | ±(0.05%+1) |
ACV | 200mV/2V/20V/200V/750V | ±(0.8%+80) |
DCA | 20mA/200mA/2A/20A | ±(0.35%+10) |
ACA | 200mA/2A/20A | ±(0.8%+80) |
Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.1%+5) |
Frequency | 20kHz/200kHz | ±(1.0%+20) |
Capacitance | 20nF/2uF/200uF | ±(3.5%+20) |
Special Function:
Model | VC8045 |
Diode test | √ |
hFE test | √ |
True RMS | √ |
Continuity alarm | √ |
Overload protect | √ |
Input impedance | 10MΩ |
Sampling rate | 3times/s |
AC Frequency response | 40Hz-50kHz |
Operation way | Manual range |
Max. display | 19999 |
Power supply | AC 220V/110V 50Hz/60Hz |
Packaging Info:
Gift box | Gift box | |
Standard qty package | 6pcs | 8pcs |
Standard carton size | 61.0x31.0x49.0cm | 61.0x31.0x64.0cm |
Standard G.W. per carton | 14kg | 18kg |
