VC837A 3 5/6 counts verstile digital multimeter
Model No.:
VC837A
Size:
140*72*37mm
Weight:
195g
Safety level:
CAT. III 300V
Max display:
6000 digits
Voltage:
AC DC 600V
Current:
AC DC 10A
Capacitance:
60mF
Resistance:
60MΩ
Frequency:
10MHz
Temperature:
1000℃， 1832℉
Description
Contact Supplier
Description

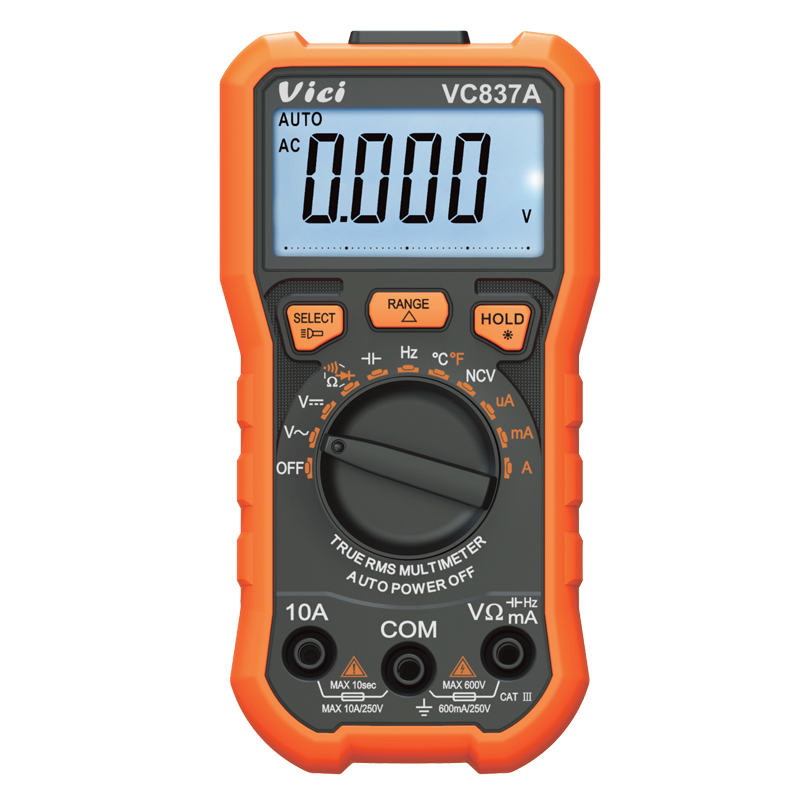

VC837A 3 5/6 Auto Range Digital Multimeter
Features:
New shellpanel, streamlined design, comfortable handle;
Large LCD display makes reading clear;
Strong antimagnetic and anti-interferential performance; Full function protection;
Auto power off when there is no measurement in 15 minutes;
Unit symbol display, Analog bar display, easy to read; Lighting function, backlight display.
True RMS , non-contact voltage detect (NCV), relative value measurement, frequency/duty cycle and data hold function.
Technical Data:
Basic function | Range | Basic Accuracy |
DCV | 600mV/ 6V/ 60V/ 600V | ±(0.5%+4) |
ACV | 6V/ 60V/ 600V/ 600V | ±(0.8%+6) |
DCA | 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A | ±(1.0%+5) |
ACA | 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A | ±(1.5%+5) |
Resistance | 600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ | ±(0.8%+1) |
Capacitance | 60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF | ±(3.5%+8) |
Frequency | 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz | ±(0.5%+4) |
Temperature | -40℃～1000℃ | -40℉～1832℉ | ±(1.0%+5) |
Specific Function:
Model | VC837A |
√ | |
NCV | √ |
Analog bar | √ |
Data hold | √ |
Function protection | √ |
Torch function | √ |
Backlight display | √ |
Duty cycle | 1%~99% |
Diode test | 0V~3.3V, it displays “OL” if over 3.3V |
Continuity alarm | Less than 50Ω, it displays “OL” if over 610Ω |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual or Auto range |
Max. display | 6000 |
LCD size | 61x28mm |
Battery | 3V (1.5V AAA×2) |
Power consumption | Quiescent current about 2mA |
General Info:
Meter color | Orange + Grey |
Meter weight | 195g (including battery) |
Meter size | 140×72×37mm |
Standard accessory | Test leads, battery, manual, TP01 temperature probe |
Standard packing | 40pcs |
G.W. per carton | 15kg |
Carton size | 33x26x48cm |
