VCXO 5032 SMD Voltage Controlled Crystal Oscillator

Brand:

JGHC晶光华

Customised:

Yes

Model No.:

V53

Size:

5.0x3.2x1.2mm

Frequency:

10-200MHz

Voltage:

3.3V or specif

Frequency Difference:

±50ppm or specif

Description

Contact Supplier

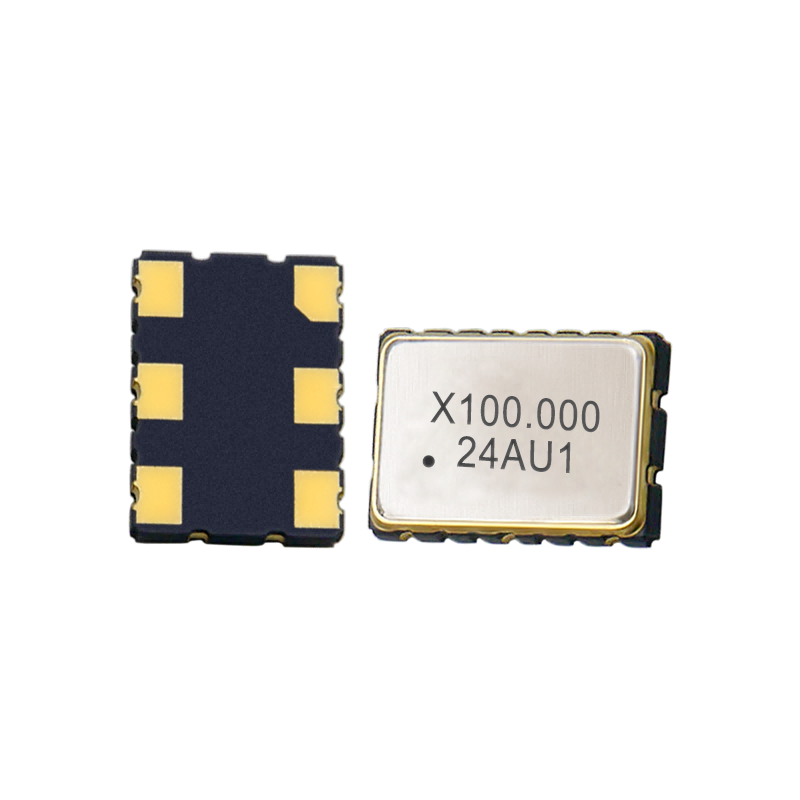

SMD VCXO 5032 Voltage Controlled Crystal Oscillators 5.0x3.2x1.2mm V53 Series

Features

Voltage Controlled Crystal Oscillator (VCXO).

Fundamental solution.

CMOS output, output frequencies 10 MHz to 200 MHz.

Wide pull range and good linearity.

Excellent low phase noise and jitter.

Tri-State function available.

Main applications : SDH/ SONET, Ethernet, Base Stations.

RoHS Compliant / Pb Free.

Crystals specifications

ITEMS/TYPE	V53
Frequency Range	10~200MHz
Oscillation Mode	Fundamental
Output Load	15pF, or specify
Supply Voltage	3.3V, or specify
Output Type	CMOS
Operating Temperature Range	- 40~+85℃, or specify
Storage Temperature Range	- 55 ~ + 125 ℃
Voltage Vol ( Max.) / Voh ( Min.)	0.1 VDD / 0.9 VDD
Rise ( Tr ) / Fall ( Tf ) Time	5ns Max.
Supply Current	60 mA Max.
Symmetry	45 ~ 55 %
Start-up Time	10ms Max.
Frequency Pulling Range	±50ppm, ±100, or specify.
Nominal Control Voltage	0.5 VDD
Control Voltage Range	0 ~ VDD
Linearity	±10% Max.
Phase Jitter(12KHz~20MHz )	1ps Max.
