VHF Marine Portable Radio
Model No.:
RS-36M
Brand:
NAGOYA
Colour:
Black
Size:
65 x 140 x 41mm
Port:
Xiamen, Hong Kong
Type of Payment:
PayPal, T/T, Western Union
Minimum Order Quantity:
2 piece(s)
Customised:
Yes
Storage Channel:
80
Frequency Range:
VHF
Talk Range:
3-10km
Description
Contact Supplier
Description

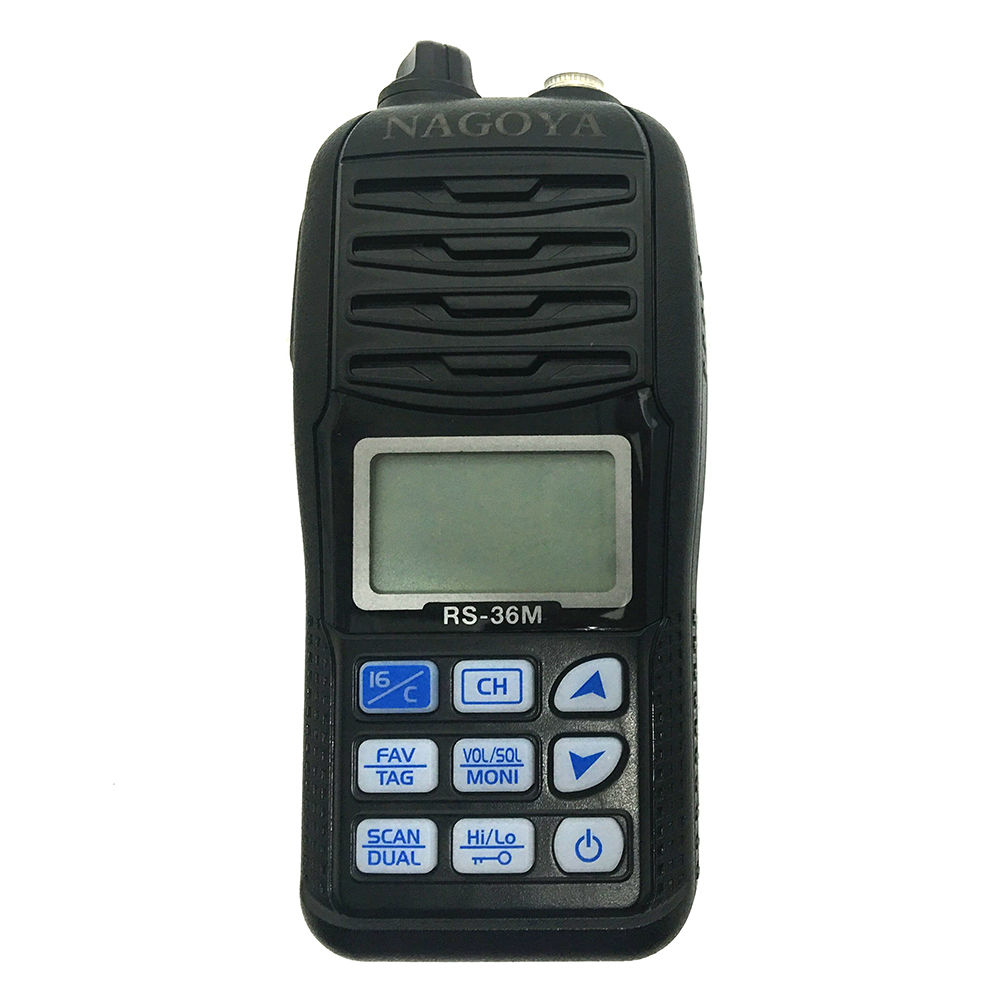

Main Features of VHF Marine Portable Radio RS-36M
Item: NAGOYA handheld vhf marine radio with IP-X7
Item: NAGOYA handheld vhf marine radio with IP-X7
- 1. Float and Flash
- 2. IP-X7 (1meter Depth for 30 Minutes)
- 3. Dual Bands Frequency Watch or Three Bands Frequency Watch
- 4. 3.7V Energy-saving Circuitry
- 5. Large LCD Display Easy To See And Operate
- 6. Built-in Regular Charger Circuitry
- 7. 4-step Battery Life Indicator
- 8. Favorite Channel Can Be Set
- 9. Aqua quake Draining
- 10. Auto Scan
- General
- Frequency RangeTX:156.000-161.450MHz
- RX:156.000-163.425MHz
- Channel No.:80
- Channel Spacing:25KHz
- Work Voltage (V):DC3.6
- Battery:1500mAh(Li-Ion)
- Type of Emission:FM(16K0G3E)
- Dimensions(W×H×D):65×140×41mm
- Weight:247g
- RF Power(W)HI:4W±0.5
- A-HI:2.3±0.2
- LOW:0.8±0.1
- E-LOW:0.5±0.1
- TX Current(A):2.2/1.6/0.9/0.7
- Modulation Sensitivity:2.6±0.1mV
- Maximum Frequency Deviation:±4.8KHz
- TX Audio Distortion:≤5%
- TX Frequency Stabilization:≤ 4 ppm
- Reception Sensitivity
- With 12Db SINAB:≤0.35µV
- Max Audio Power:≥450mW
- Rated Audio Power:≥300mW
- Average Standby Current:≤26
- Max RX Current(mA):≤250
- RX Audio Distortion:≤8%
- Adjacent Channel Selectivity:≥55dB
- Intermodulation Immunity:≥55dB
- Channel Rejection:≥-8dB
- RX Frequency Stabilization:≤ 4 ppm
- Operating Temperature:-20°C~+60°C
- Antenna Impedance:50Ω
