VHF/UHF Two Way Radio
Share this page
Production Lead Time:
3 day(s)
Model No.:
E61
Brand:
TeLT
Colour:
Black
Size:
104 x 52 x 31mm
Port:
Xiamen, Shenzhen, Guangzhou
Type of Payment:
L/C, T/T, Western Union, PayPal
Minimum Order Quantity:
1 piece(s)
Description
Contact Supplier
Description

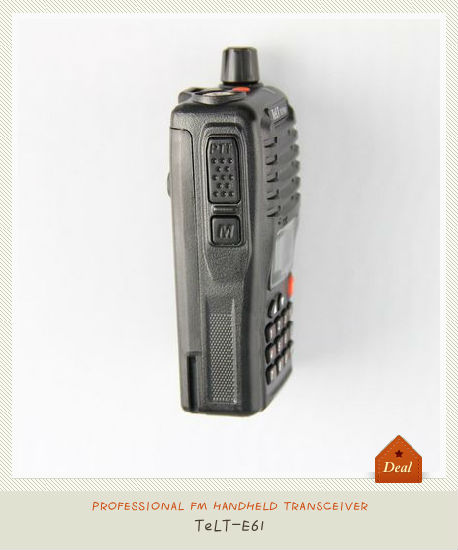

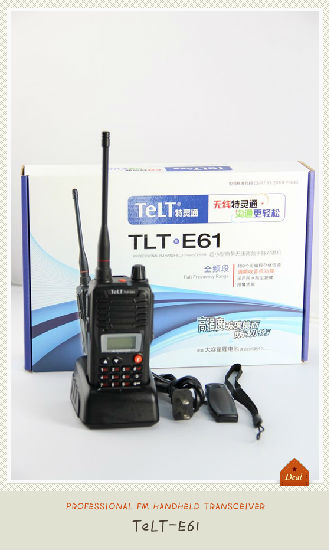

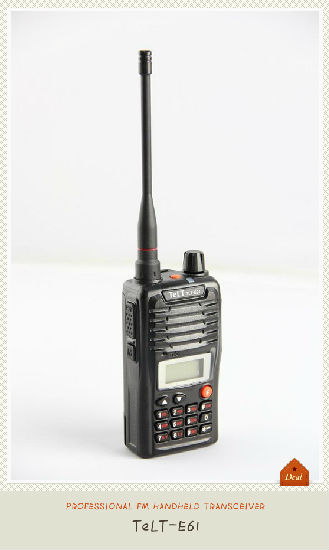

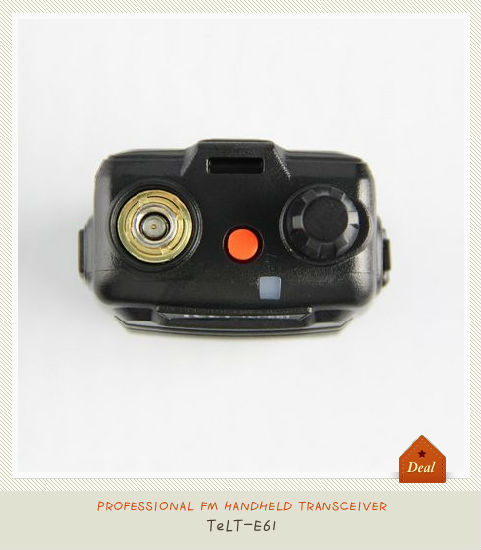

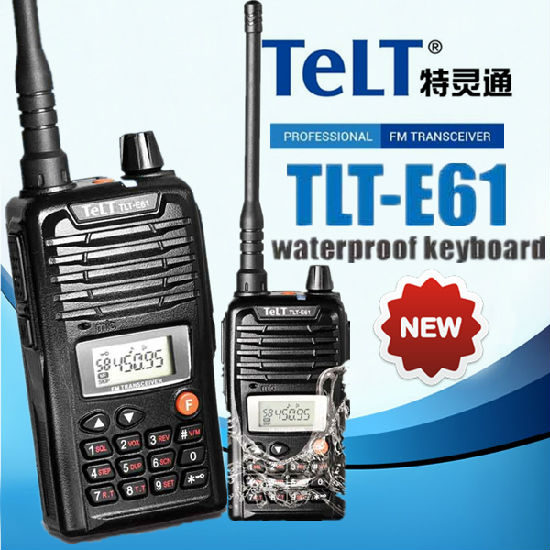

Shown here is a VHF/UHF two way radio.
General:

  • Frequency range: VHF 136~174MHz 244-246MHz; UHF 350~390MHz 400~470MHz.
  • Channel No.: 199 memory channels.
  • Modulated mode: FM(F3E).
  • Frequency interval: 5,6.25 kHz.
  • Operating temperature: -20℃ to +55℃.
  • Antenna impedance: 50Ω.
  • Channel spacing: 12.5kHz / 25kHz.
  • Working voltage: 7.4V DC li-ion battery.
  • Dimension (H x L x W): 104 x 52 x 31mm.
  • Weight: 200g.
  • Transmitter:
  • Output power: 5W.
  • Max.freq.deviation: ±5kHz (wide)/±2.5kHz (narrow).
  • Transmitting current: ≤ 1300 mA.
  • Modulation distortion: < 5% (300kHz –3kHz ).
  • Residual wave radiation: ≤-65dB.
  • Frequency stability: ±2.5ppm.
  • Receiver:
  • Sensitivity: 0.20μV (12dB SINAD).
  • Operating bandwidth: wide.25kHz; narrow.12.5kHz.
  • Adjacent channel selectivity: ≥55dB.
  • Intermodulation Immunity: ≥55dB.
  • Squelch sensitivity: 0.16μV.
  • Audio power output: 500mW.
  • Features:
  • Palm-size for maximum portability.
  • Ultra-clear reception.
  • Long reception range.
  • With keypad for simple operation.
