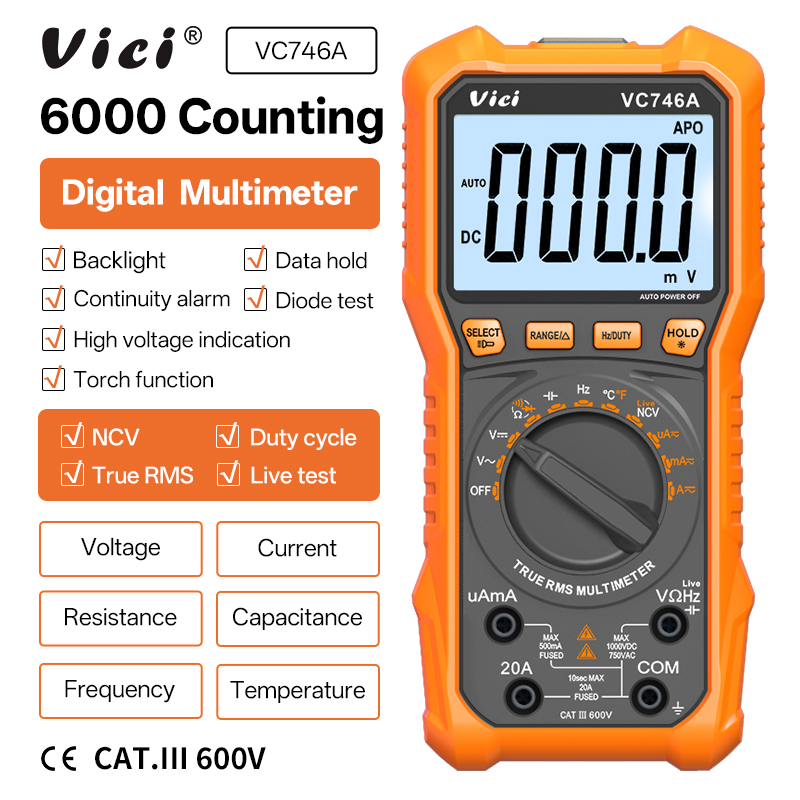

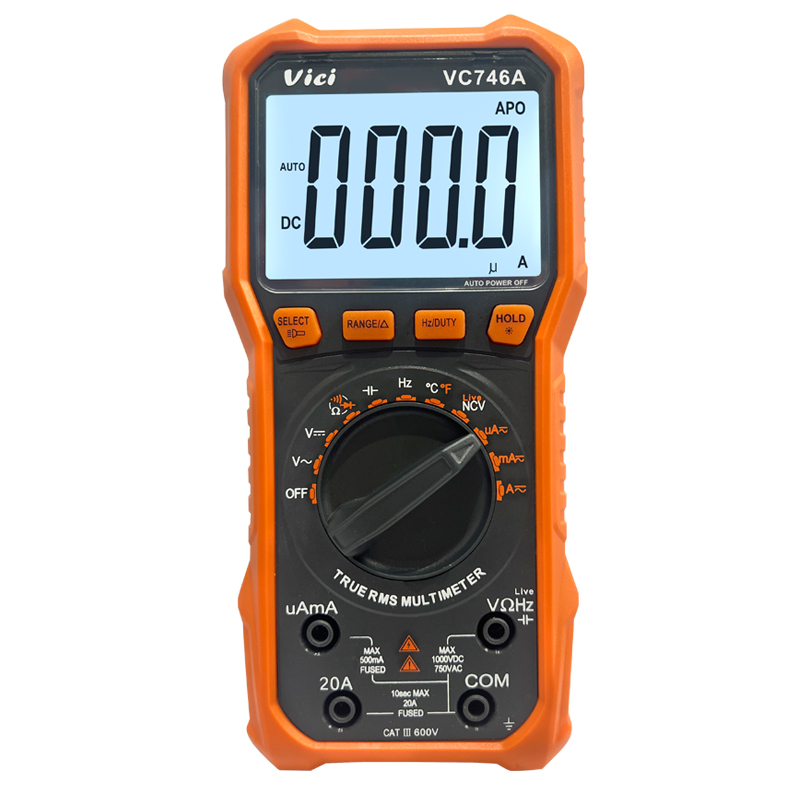

VICI VC746A 6000 Digits TRMS NCV LIVE AC DC Digital Multimeter
Model No.:
VC746A
Size:
190*92*50mm
Weight:
306g
Safety level:
CAT. III 600V
Max display:
6000 digits
Voltage:
AC 750V, DC 1000V
Current:
AC DC 20A
Capacitance:
60mF
Resistance:
60MΩ
Frequency:
10MHz
Temperature:
1000℃， 1832℉
Description
Contact Supplier
Description
VC746A 5999 Counts Digital Multimeter
1. New shell panel, streamlined design, comfortable handle;
2. Large HD LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance; Full function protection;
4. Auto power off when there is no measurement in 15 minutes;
5. Unit symbol display, easy to read; Lighting function, backlight display.
6. True RMS , NCV, Live wire, Relative valuemeasurements, frequency/duty cycle and data hold function.
Technical Data:
Basic function | Range | Basic Accuracy |
DCV | 600mV/ 6V/ 60V/ 600V/1000V | ±(0.5%+5) |
ACV | 6V/ 60V/ 600V/ 750V | ±(0.8%+10) |
DCA | 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A | ±(1.0%+5) |
ACA | 600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 20A | ±(1.5%+10) |
Resistance | 600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ | ±(0.8%+2) |
Capacitance | 60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF | ±(2.5%+5) |
Frequency | 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz | ±(0.5%+4) |
Temperature | -40℃～1000℃ | -40℉～1832℉ | ±(1.0%+5) |
Specific Function:
Model | VC746A |
Max. display | 6000 |
√ | |
NCV | √ |
Live test | √ |
High voltage indication | √ |
Data hold | √ |
Function protection | √ |
Torch function | √ |
Backlight display | |
Duty cycle | 1%~99% |
Diode test | √ |
Continuity alarm | Less than 50Ω |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual or Auto range |
LCD size | 65.0×43.5mm |
Battery | 3V (1.5V AA×2) |
Power consumption | Quiescent current about 2mA |
General Info:
Orange + Grey | |
Meter weight | 306g (including battery) |
Meter size | 190×92×50mm |
Standard accessory | Test leads, battery, manual, TP01 temperature probe |
Standard packing | 30pcs |
G.W. per carton | 15.5kg |
Carton size | 43.5*29.5*42.5cm |
