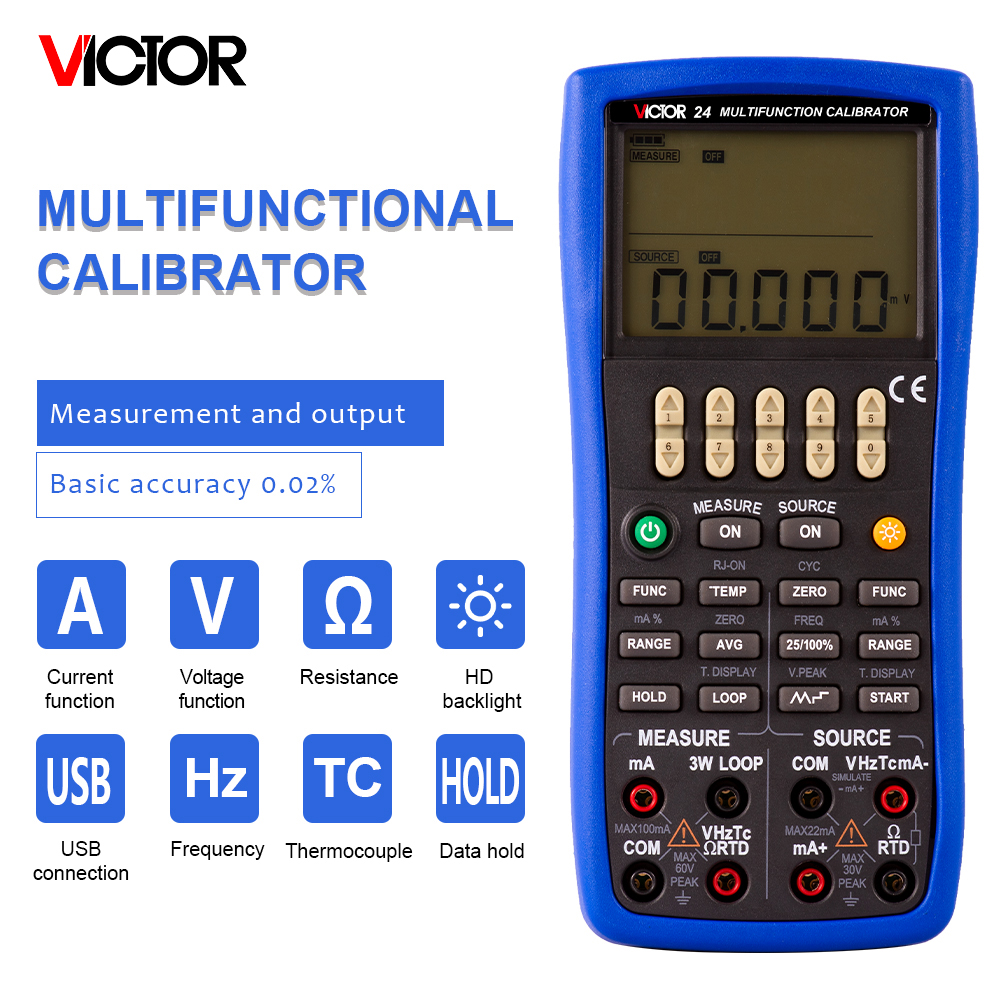

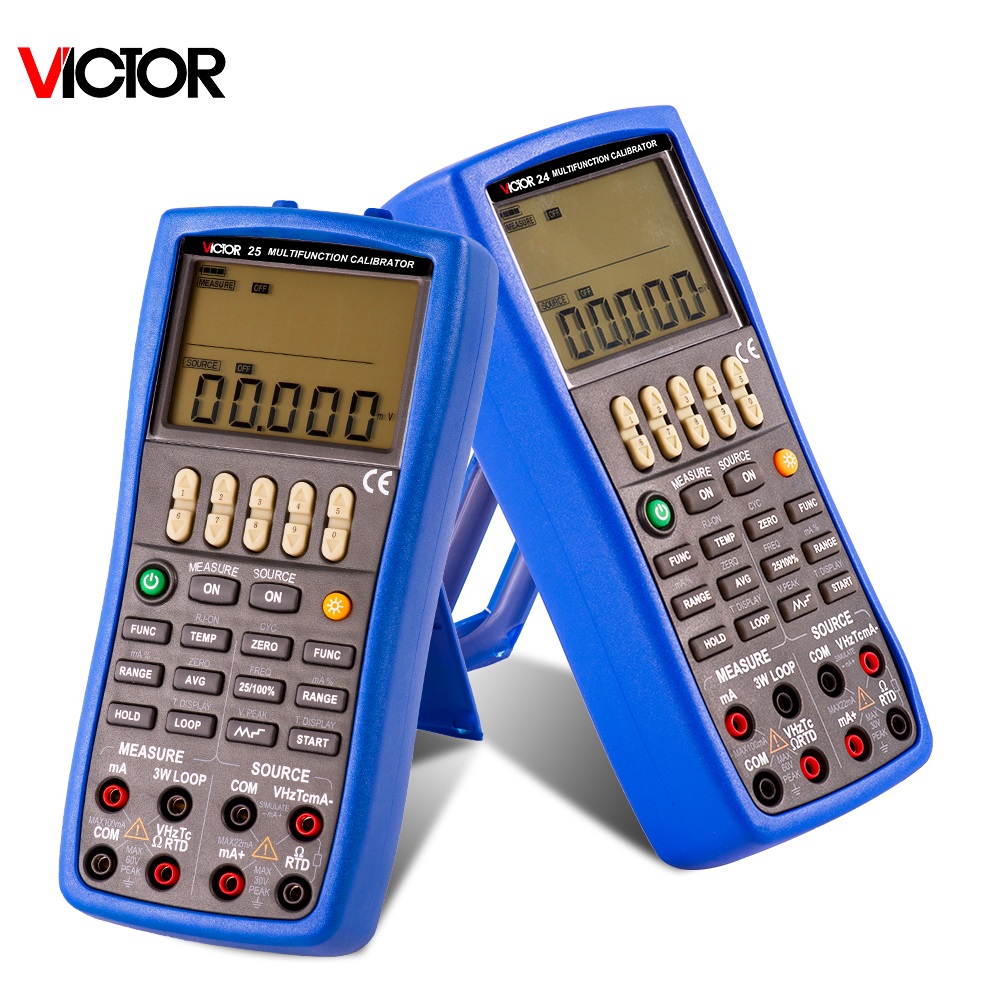

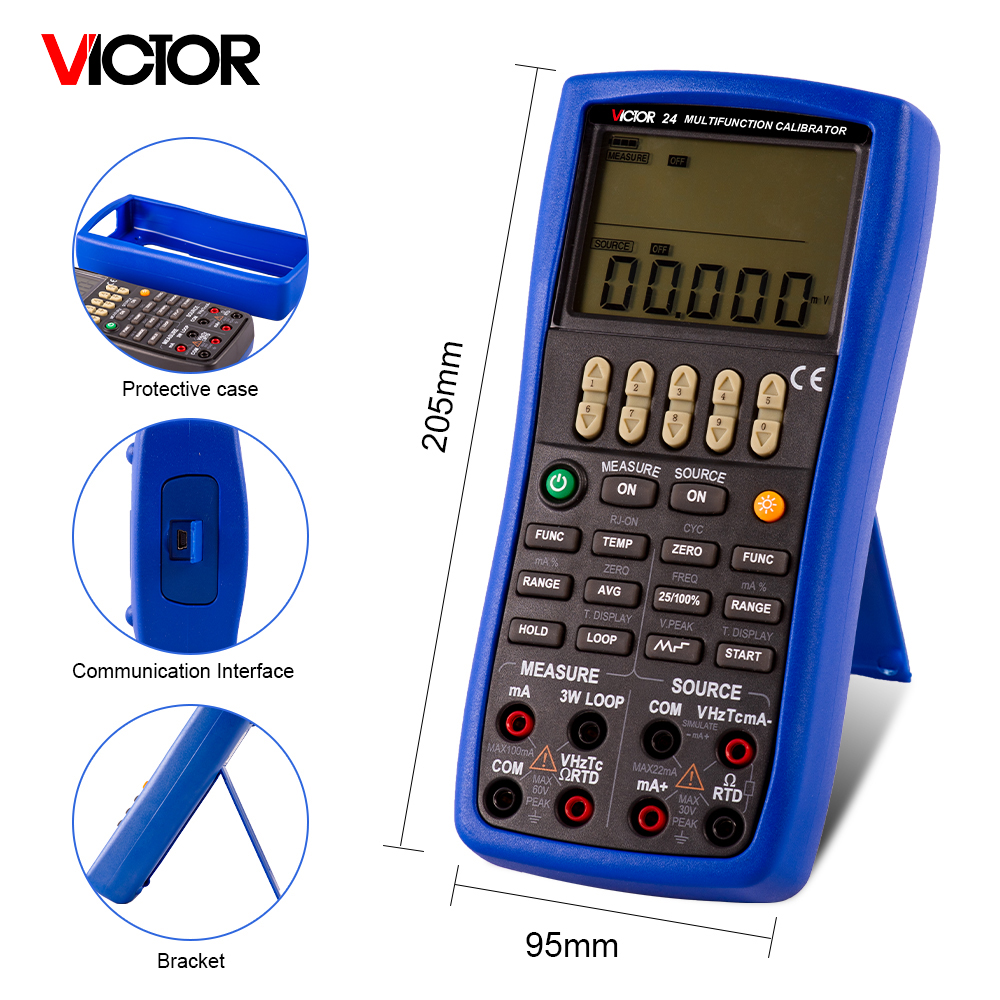

VICTOR 24 Handheld Multifunction Process Calibrator

US $698.25 - US $874.00

US $735.00 - US $920.00

Production Lead Time:

40 day(s)

Shipping Method:

EXW

Model No.:

Brand:

victor

Authentication::

CE: EN61326-1:2006

Size: :

205 *95 * 42 mm

Place of Origin: :

Shaanxi, China

Customized support: :

OEM

Application:

Multifunction Process Calibrator

Description

Contact Supplier

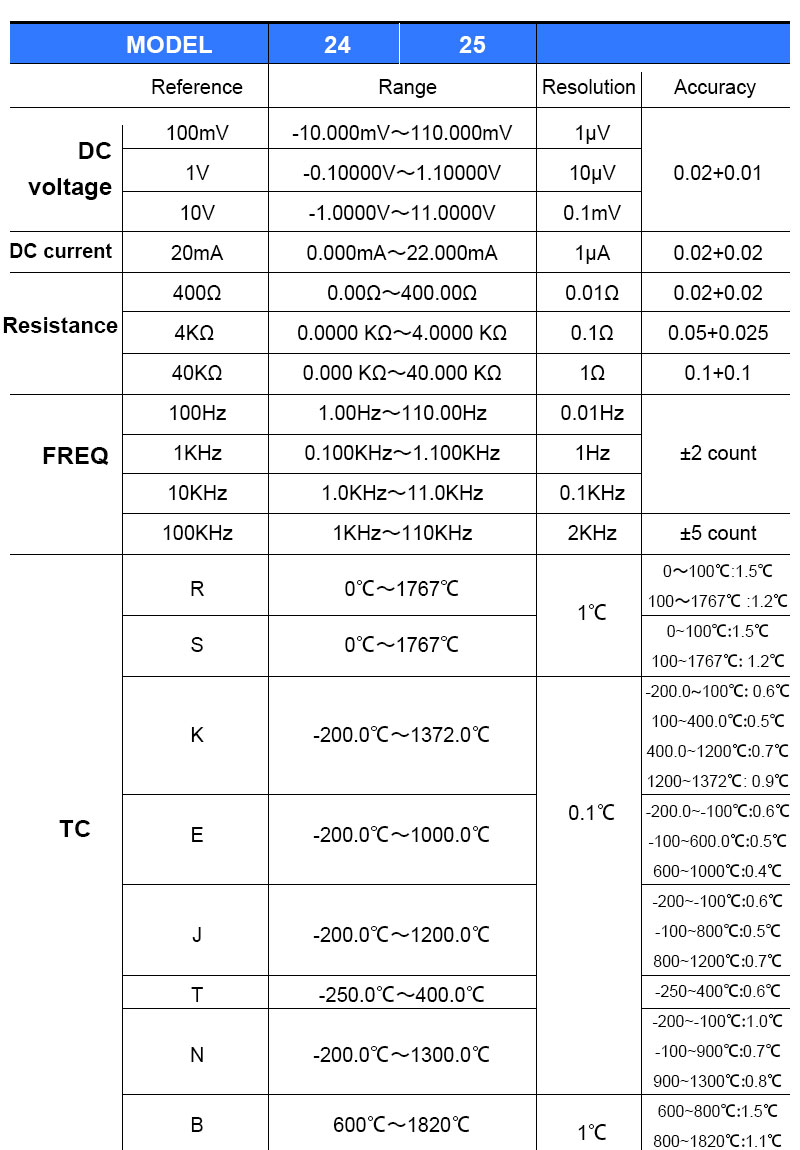

Project		Model Performance parameters	VICTOR 24
Source	DC millivolt	Range	-10 ～ 110mV
		Accuracy= ±(% of the set value+% of range)	0.02%+0.01%
		Resolution	1uV
	DC voltage	Range	-0.1 ～ 11V
		Accuracy= ±(% of the set value+% of range)	0.02%+0.01%
		Resolution	10uV/0.1mV
	DC current	Range	0 ～ 22mA
		Accuracy= ±(% of the set value+% of range)	0.02%+0.02%
		Resolution	1uA
	Sink current	Range	0 ～ 22mA
		Accuracy= ±(% of the set value+% of range)	0.02%+0.02%
		Resolution	1uA
		External power supply	5 ～ 28V
	Resistance	Range	0 ～40KΩ
		Accuracy= ±(% of the set value+% of range)	0.02%+0.02%
		Resolution	0.01Ω/0.1Ω/1Ω

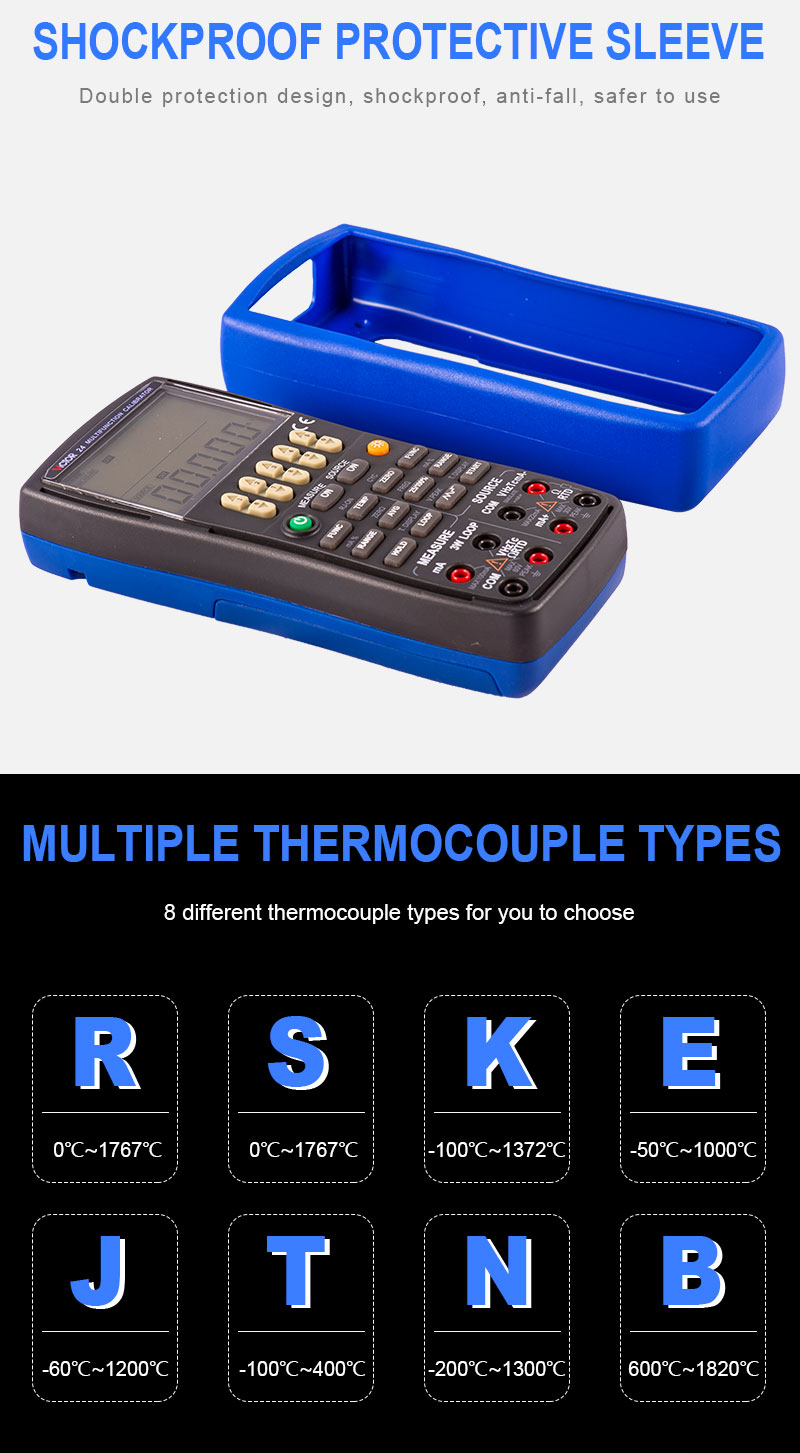

	Thermocouple	Range	R/S/K/E/J/T/B/N
		Accuracy	0.4℃
		Resolution	0.1℃/1℃

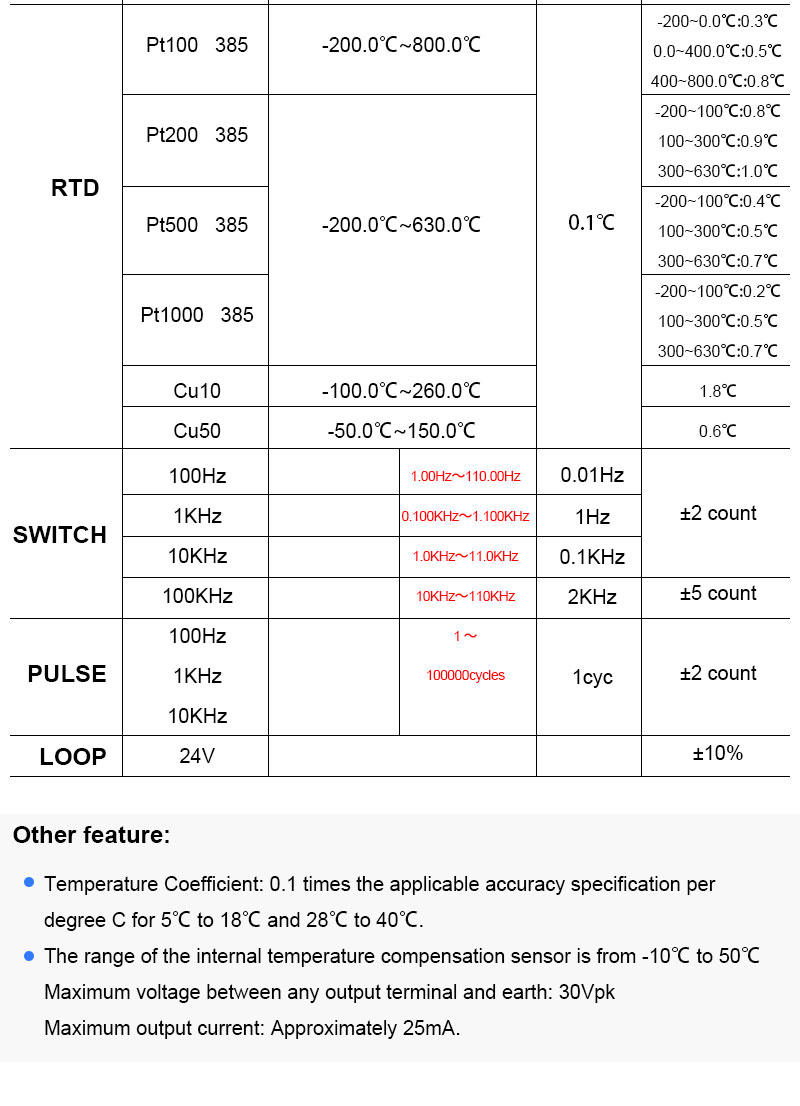

	RTD	Range	Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50
		Accuracy	0.2℃
		Resolution	0.1℃
	Frequency	Range	1Hz ～110KHz
		Accuracy	±2words
		Resolution	0.01Hz/1Hz/0.1KHz/2KHz

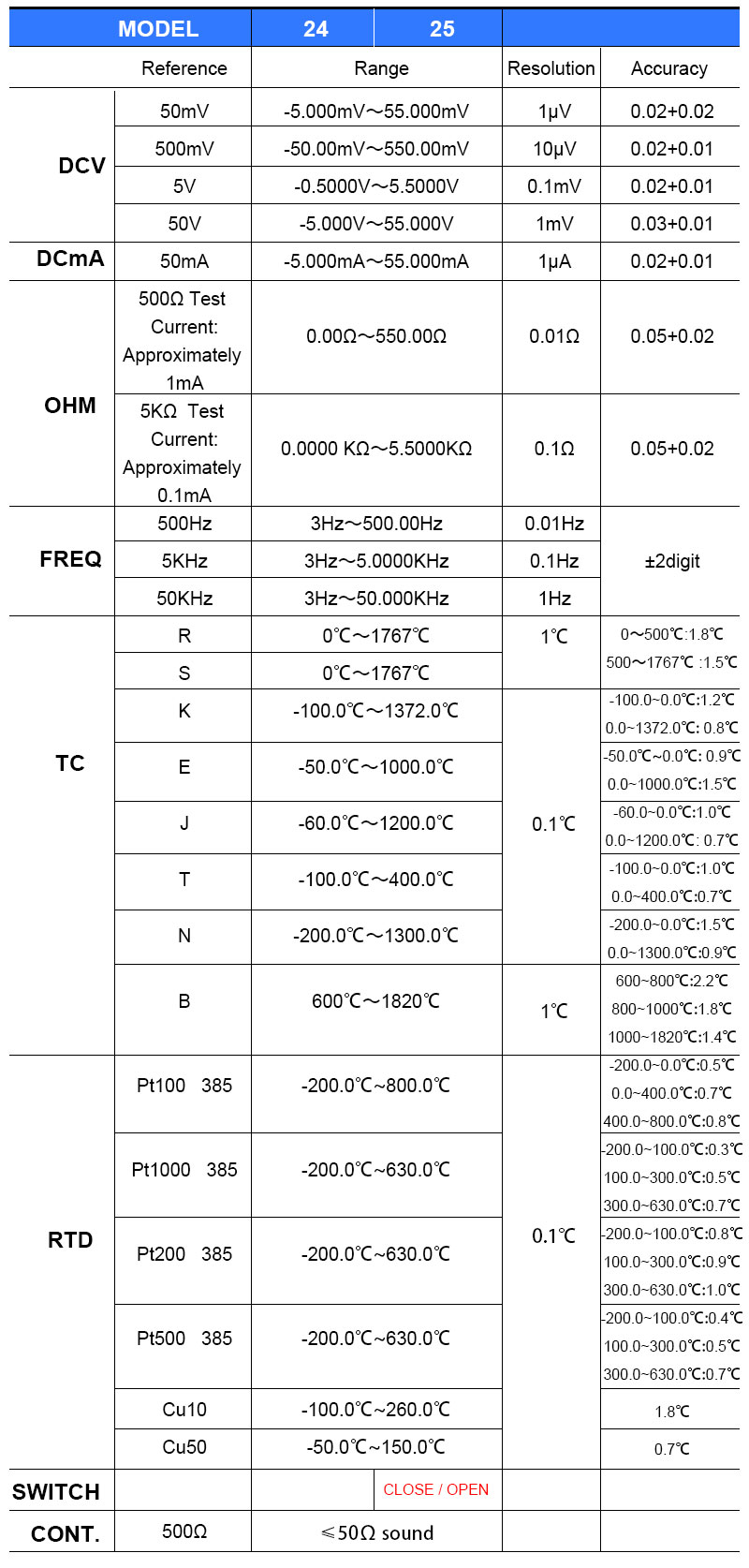

Measure	DC millivolt	Range	-5 ～ 550mV
		Accuracy= ±( % of Reading+ % of Range)	0.02%+0.01%
		Resolution	1uV/10uV
	DC voltage	Range	-0.5 ～ 55V
		Accuracy= ±( % of Reading+ % of Range)	0.02%+0.01%
		Resolution	0.1mV/1mV
	DC current	Range	-5 ～ 55mA
		Accuracy= ±( % of Reading+ % of Range)	0.02%+0.01%
		Resolution	1uA
	Resistance	Range	0 ～5.5KΩ
		Accuracy= ±( % of Reading+ % of Range)	0.05%+0.02%
		Resolution	0.01Ω/0.1Ω
	Thermocouple	Range	R/S/K/E/J/T/B/N
		Accuracy	0.7℃
		Resolution	0.1℃/1℃
	RTD	Range	Pt100/Pt200/Pt500/ Pt1000/Cu10/Cu50
		Accuracy	0.3℃
		Resolution	0.1℃
	Frequency	Range	3 Hz～50KHz
		Accuracy	±2words
		Resolution	0.01Hz/0.1Hz/1Hz
	Continuity beeper	Range	0 ～500Ω
		Accuracy	≤50Ωsound
		Resolution	0.01Ω
	Loop power supply	Range	24V
		Accuracy	±10%
		The maximum current	22mA
Other functions	Backlight		√
	Auto Power-off		√
	Charging function		√
	Room temperature display		√
	Battery detection		√
	The ramp signal		√

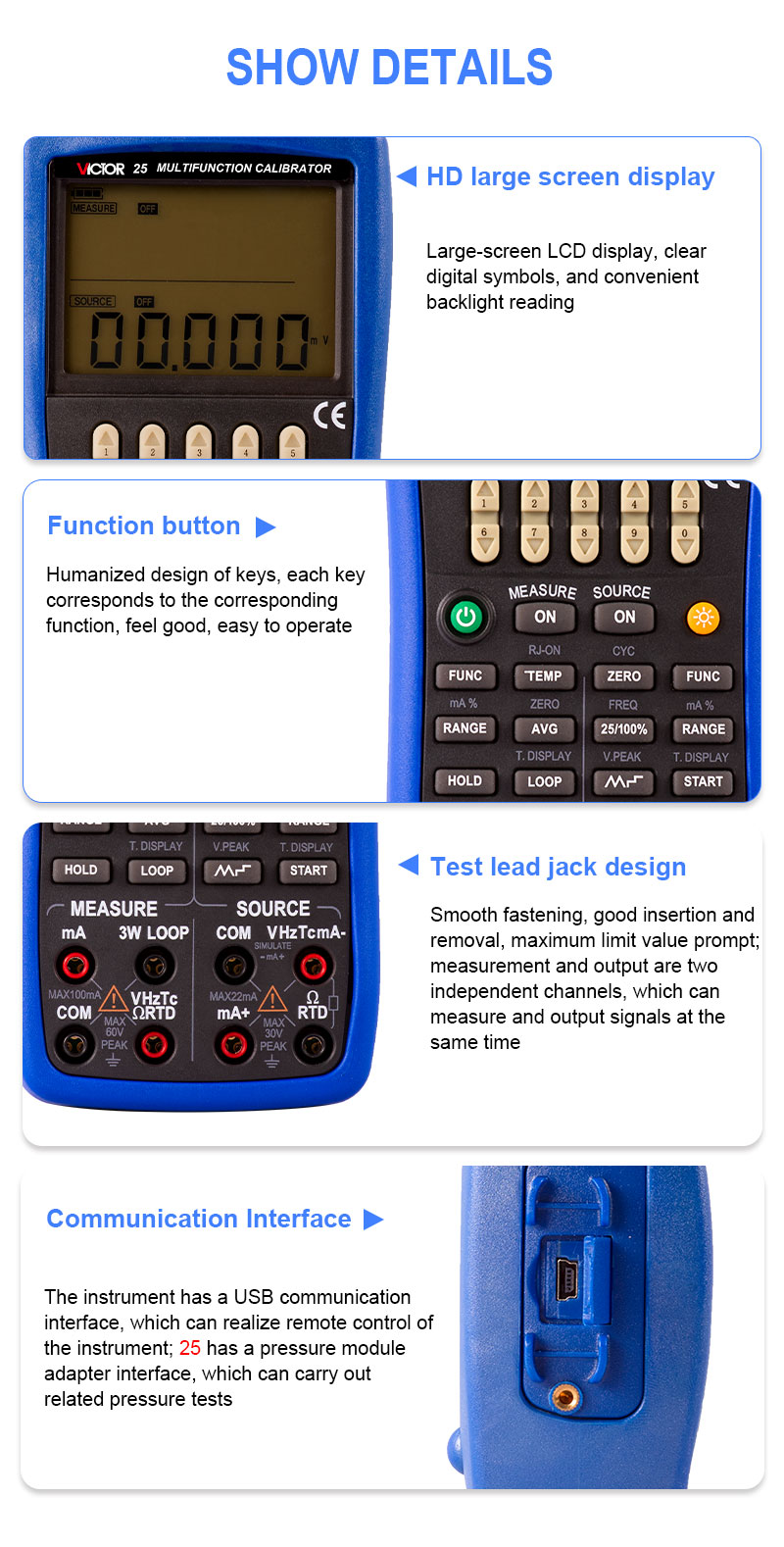

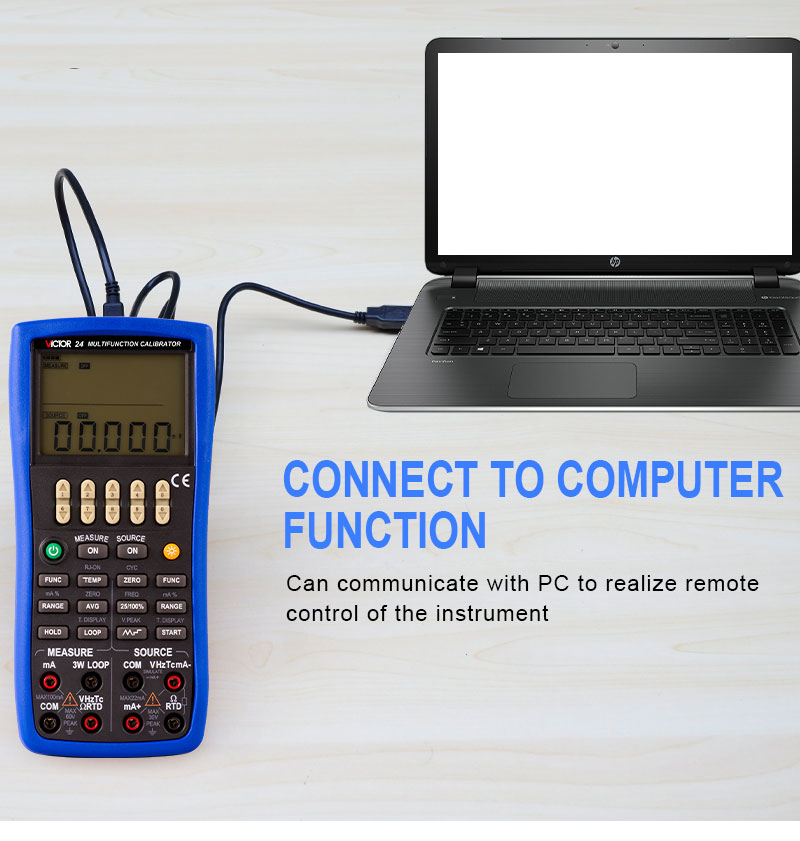

	Communication function		RS232 serial communication, can realize remote control instrument by the device driver software.

Display			Double display on the LCD screen
Power supply			4×1.5V AAA Alkaline battery
Size			205 × 95 × 42 mm
Weight			About 500g
Standard Quantity Per Carton			10pcs
Standard Carton Measurement			395mm385mm260mm
Standard Carton Cross Weight			12.4Kg
