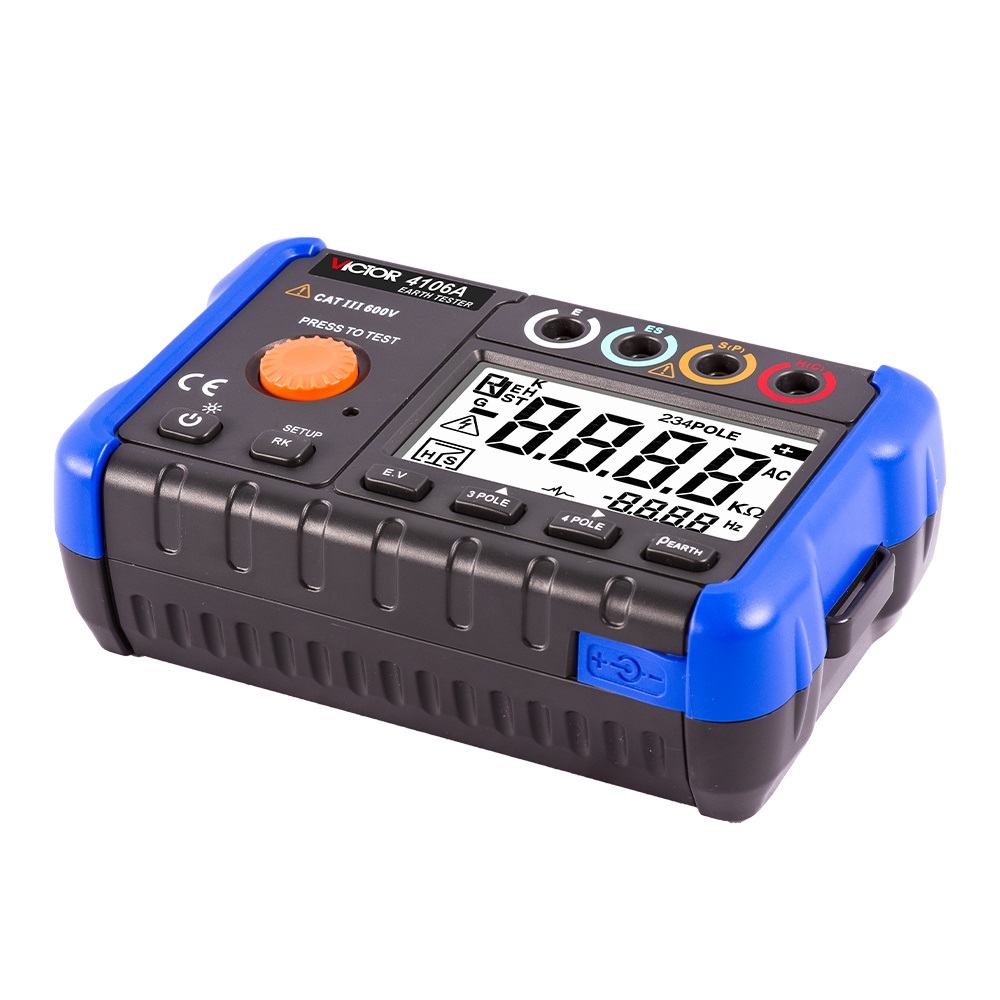

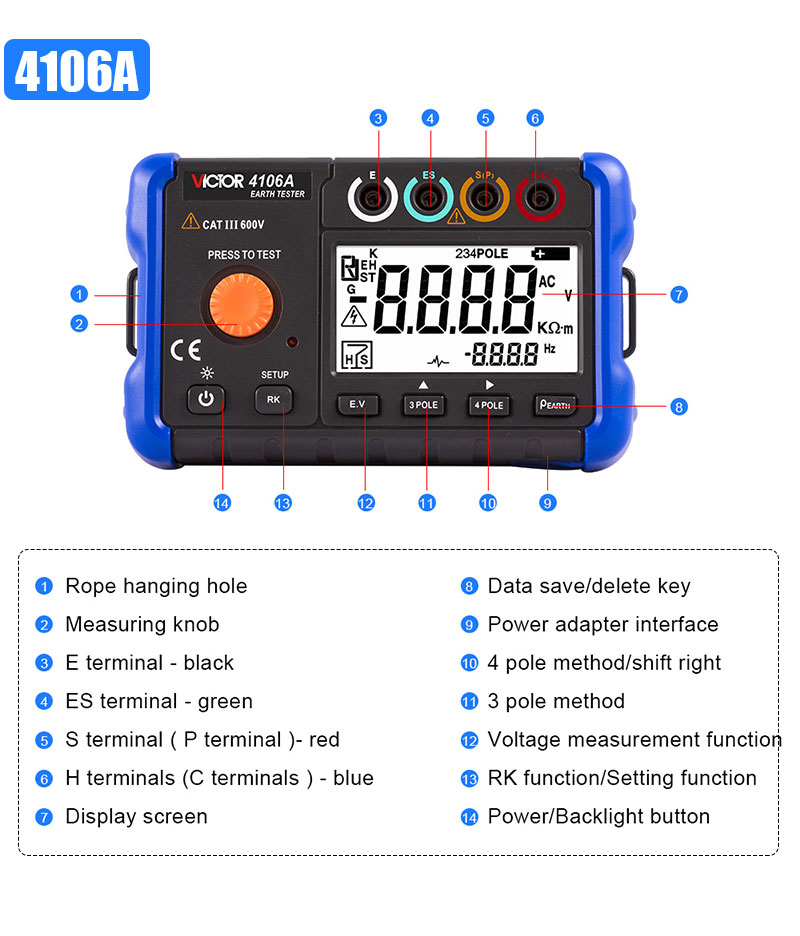

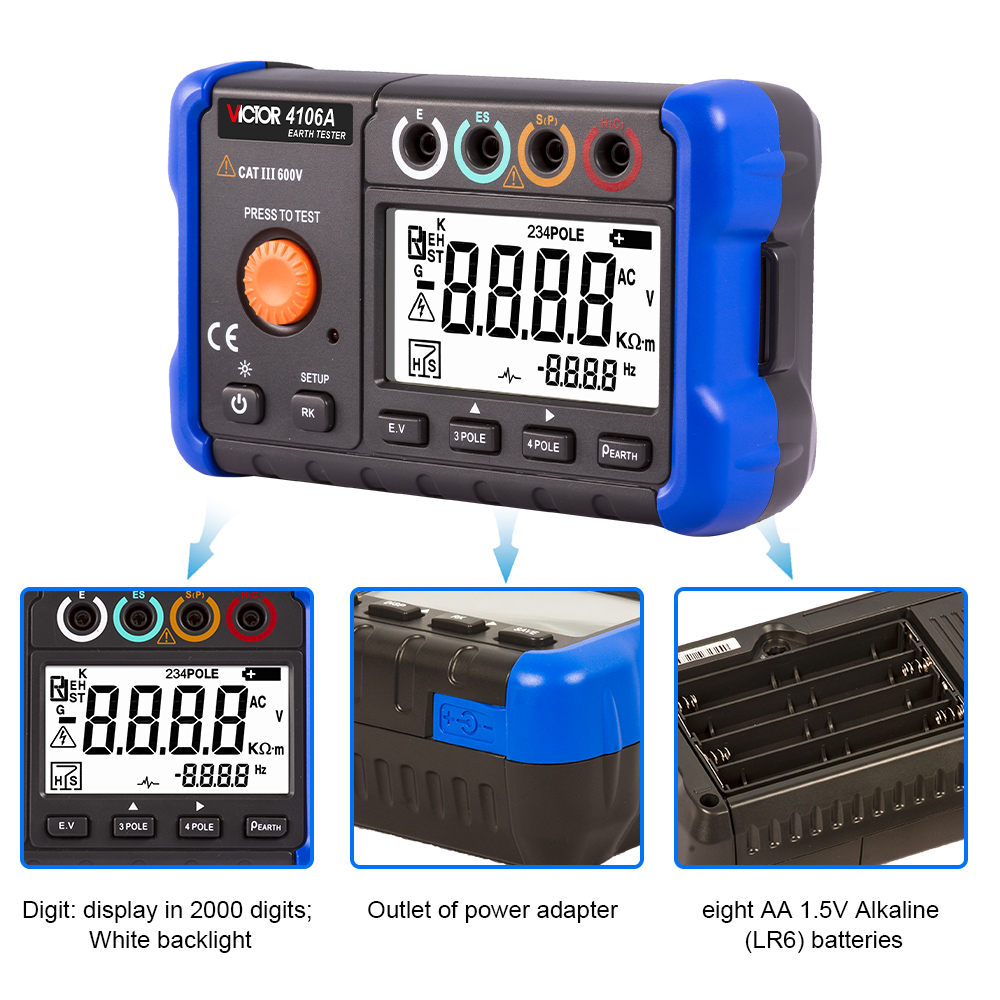

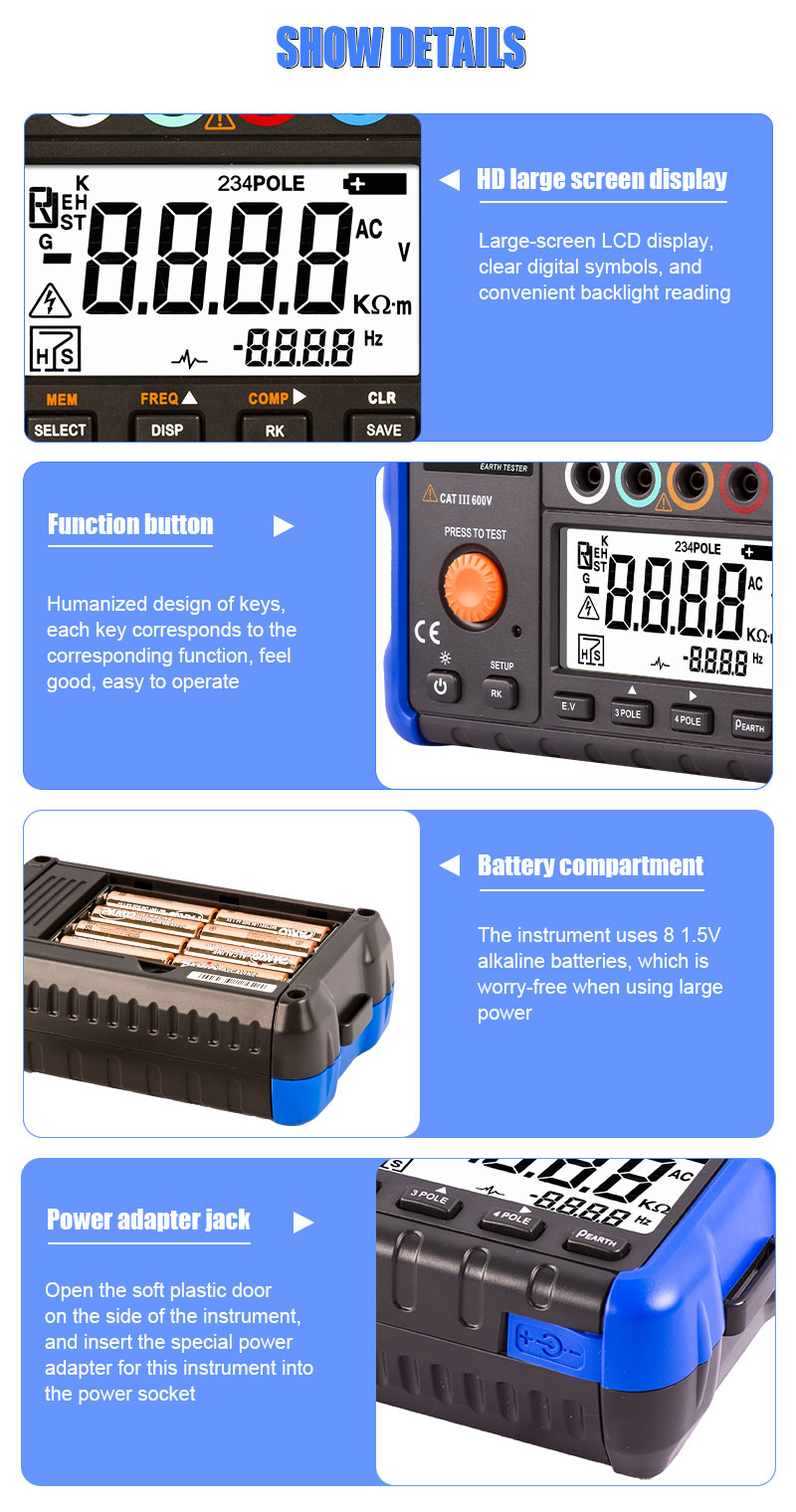

VICTOR 4106A Earth Resistance Tester

US $74.10 - US $89.30

US $78.00 - US $94.00

Production Lead Time:

40 day(s)

Shipping Method:

EXW

Application:

Earth Resistance Tester

Brand:

Victor

Model No.:

4106A

Dimensions::

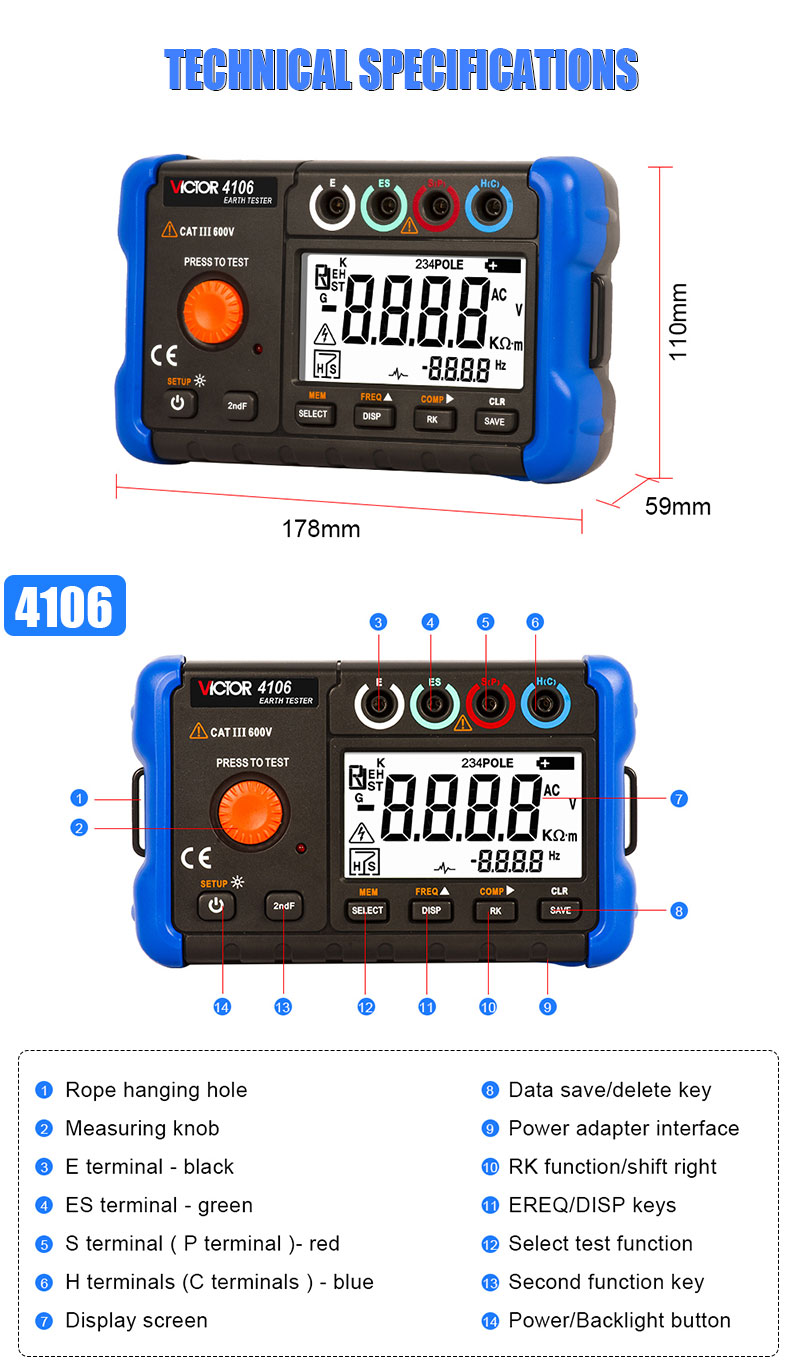

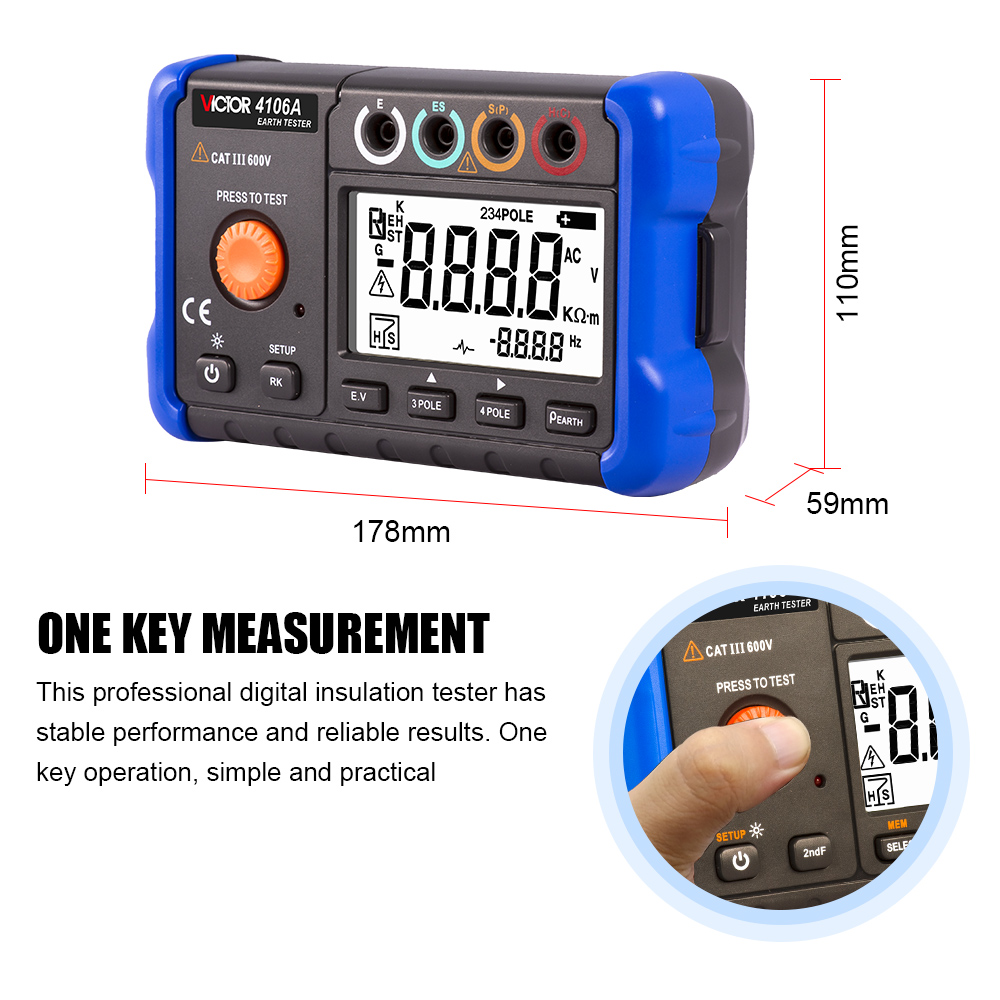

178 * 110 * 59 (mm)

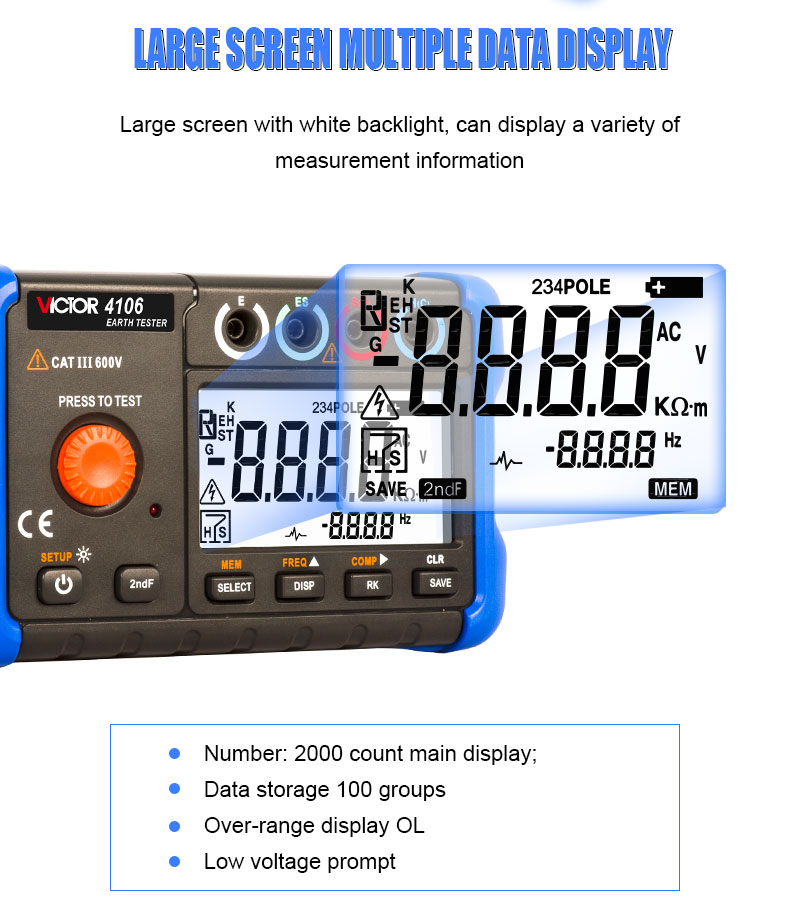

Display: :

LCD display, max display "1999"

Weight: :

680g

Accuracy: :

2% Accuracy

Description

Contact Supplier

AC voltage E.V

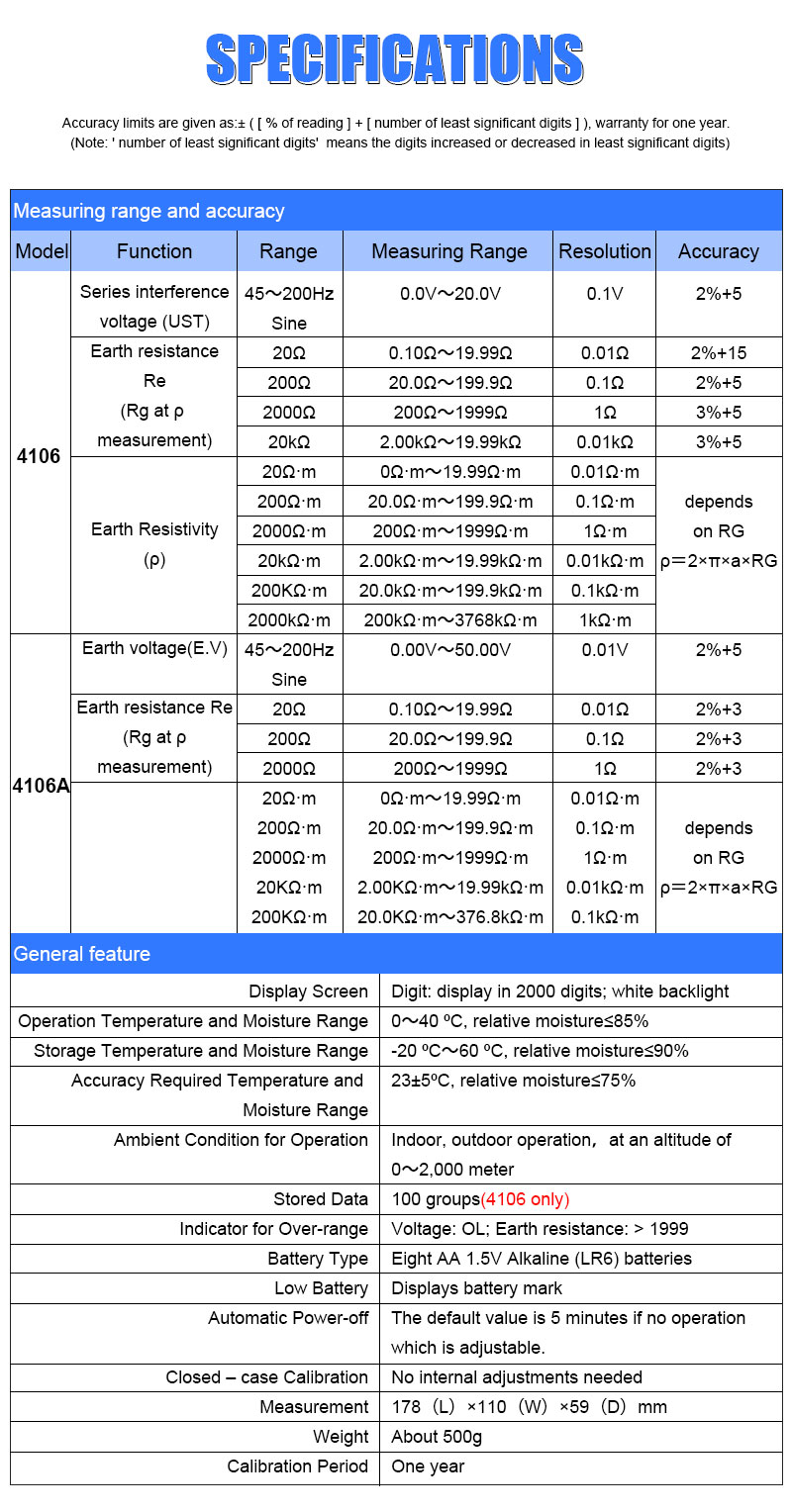

Measurement range	Resolution	Frequency range	Precision
0.00V～50.00V	0.01V	45 ~ 200Hz sine	2%+5
Input resistance: about 1MΩ Measurement rate: 2 times/s .

Earth resistance RE (RG when testing ρ)
Range	Measurement range	Resolution	Precision	Remarks
20Ω	0.10Ω～19.99Ω	0.01Ω	5%+5	0.2 Ω error is added when the resistance is less than 2Ω. RH and RS are 500ΩRk corrected data.
200Ω	20.0Ω～199.9Ω	0.1Ω
2000Ω	200Ω～1999Ω	1Ω
Output features: test open circuit voltage UM, the maximum is around 50Vpp, square wave Test the short circuit current IM, the maximum is around 3mApp, but IM☓(RH +RE)< UM Measurement time: typical 2 seconds. RH MAX: (4K Ω+100RE) or 50KΩ (whichever is lower). RS MAX: (4K Ω+100RE) or 50KΩ (whichever is lower). Additional error at RH MAX or RS MAX: 3%+10. Series interference voltage: 16·2/3Hz, 50Hz, 60Hz, 400Hz and DC 3V (20Ω range does not include DC). Additional error at 3V series interference voltage: 5%+10.

Soil resistivity (ρ) measurement
Range	Measurement range	Resolution	Precision
20Ω·m	0Ω·m～19.99Ω·m	0.01Ω·m	Depends on RG ρ＝2×π×a×RG
200Ω·m	20.0Ω·m～199.9Ω·m	0.1Ω·m
2000Ω·m	200Ω·m～1999Ω·m	1Ω·m
20KΩ·m	2.00KΩ·m～19.99KΩ·m	0.01KΩ·m
200KΩ·m	20.0KΩ·m～376.8KΩ·m	0.1KΩ·m
The distance between the earth rods: a=1.0 m ~ 30.0 m.

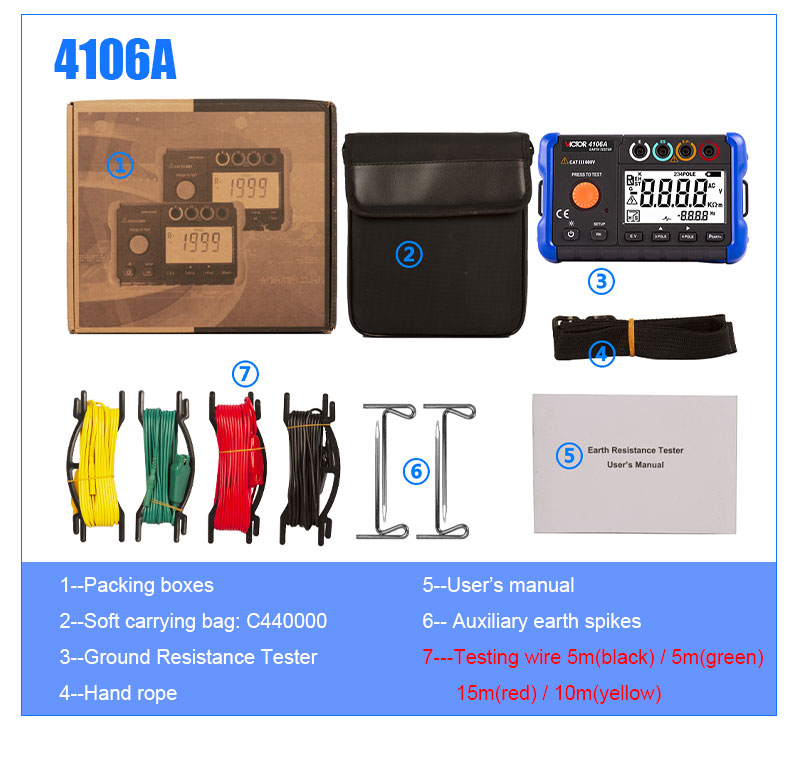

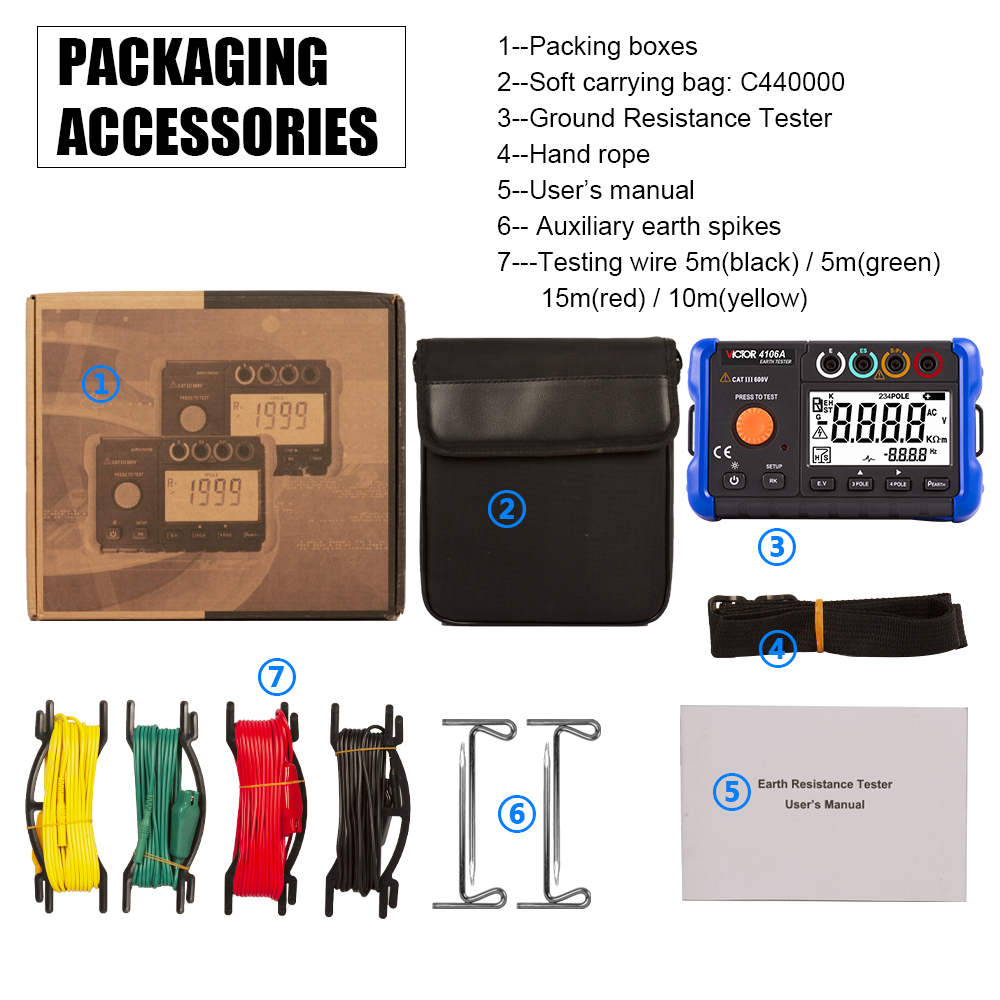

* Product accessories
* Standard configurationTest kit
* (Red:15 m; black/green: 5 m; yellow: 10 m) - 1 set
* Earth steel chisel - 4
* Product manual - 1
* #5 alkaline battery - 8
* Printed box - 1
* Cloth bag - 1
* Handle rope - 1
* Optional accessories
* 15V power adapter - 1

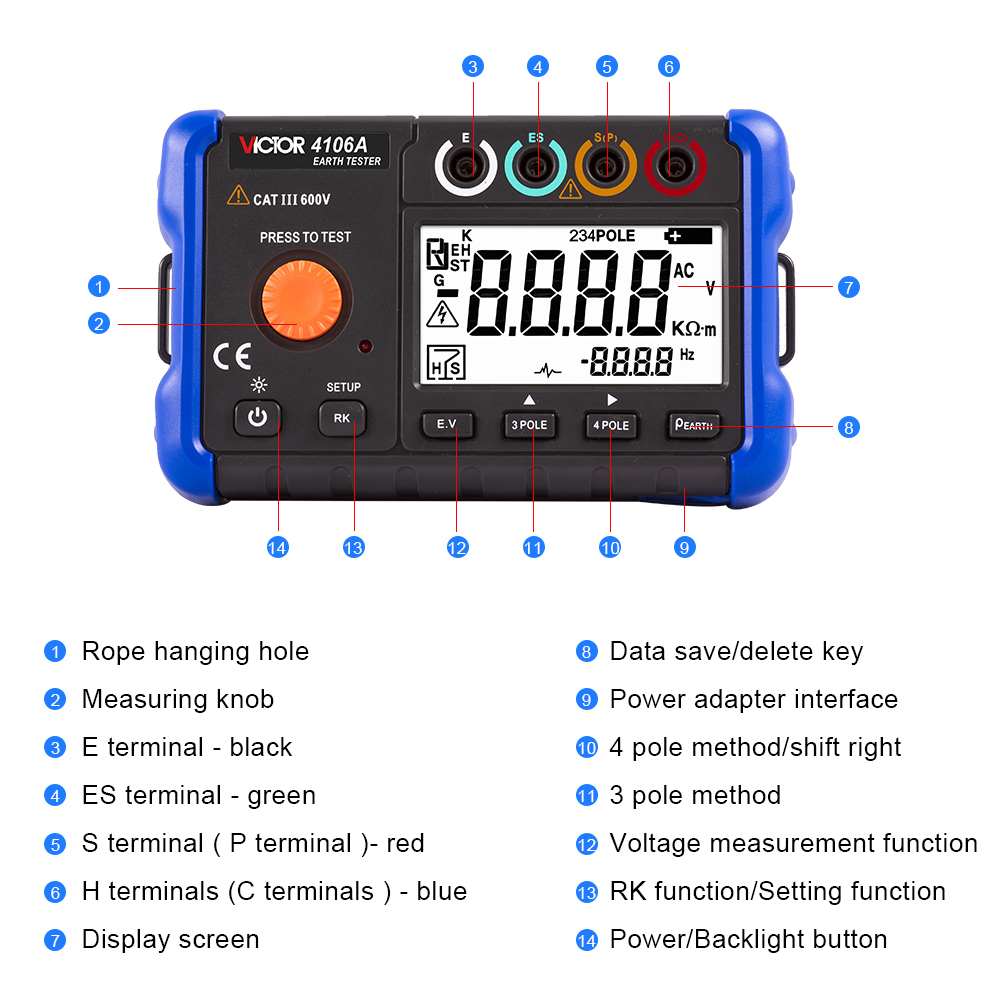

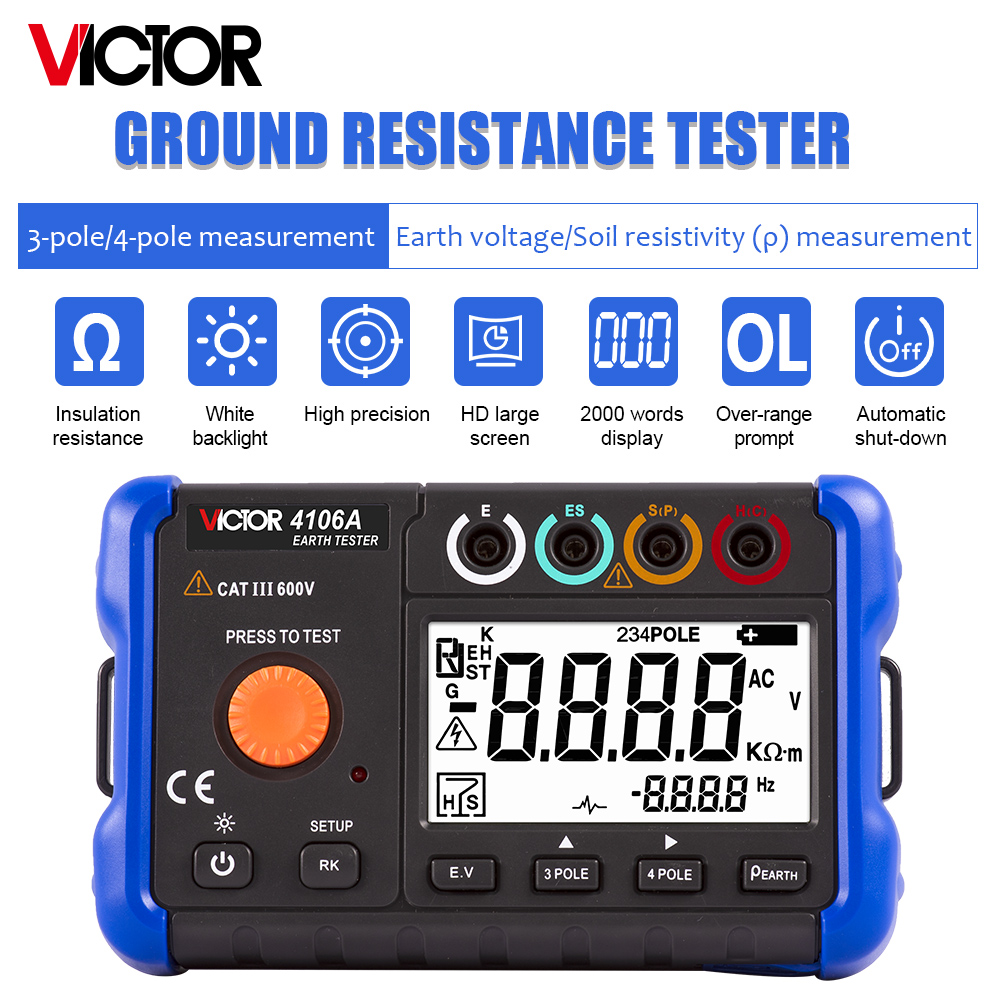

Basic features of the product
Basic measurement functions
Earth resistance measurement (RE)
Measurement method: 3-pole method, 4-pole method
Measuring range: 0.02Ω～1999Ω
Minimum resolution: 0.01 Ω
Basic accuracy: 5%
Soil resistivity measurement (ρ)
Measurement range: 0.01Ω·m～376.8KΩ·m
Interval of auxiliary earth rods, setting range: 1.0 m ~ 30.0 m.
AC true RMS voltage E.V
Measurement range: 0~50V
AC bandwidth: 40Hz ~ 200Hz
Measurement basic accuracy: 2%

General features of the product

Operating temperature and humidity
0 to 40ºC (non-condensing ≤10ºC), ≤85%RH
Storage temperature and humidity: -20ºC to 60ºC,≤90%RH
Working altitude:≤2000m.(Indoor use)
Rated transient overvoltage:6K (1.2*50us) I, II, III measurement peak value
Withstand voltage:AC8320V(50/60Hz)/5 seconds (between the circuit and the outer box)
Insulation impedance:1000MΩ or greater/DC1000V (between the circuit and the outer box)
Vibration and shock:Randomness 2g, 5 to 500Hz 1m drop test
Calibration period and warm-up time
To ensure the accuracy of this table, the calibration period is one year or other
The warm-up time after turned on is 10 minutes or other
Power supply:Powered by 8 x 1.5 V LR6(AA) alkaline batteries
15V power adapter power supply
Automatic shutdown operation: automatic shutdown time 0~90 minutes can be set
Size and weight:178 × 110 × 59 (mm), about 600g (including batteries)
