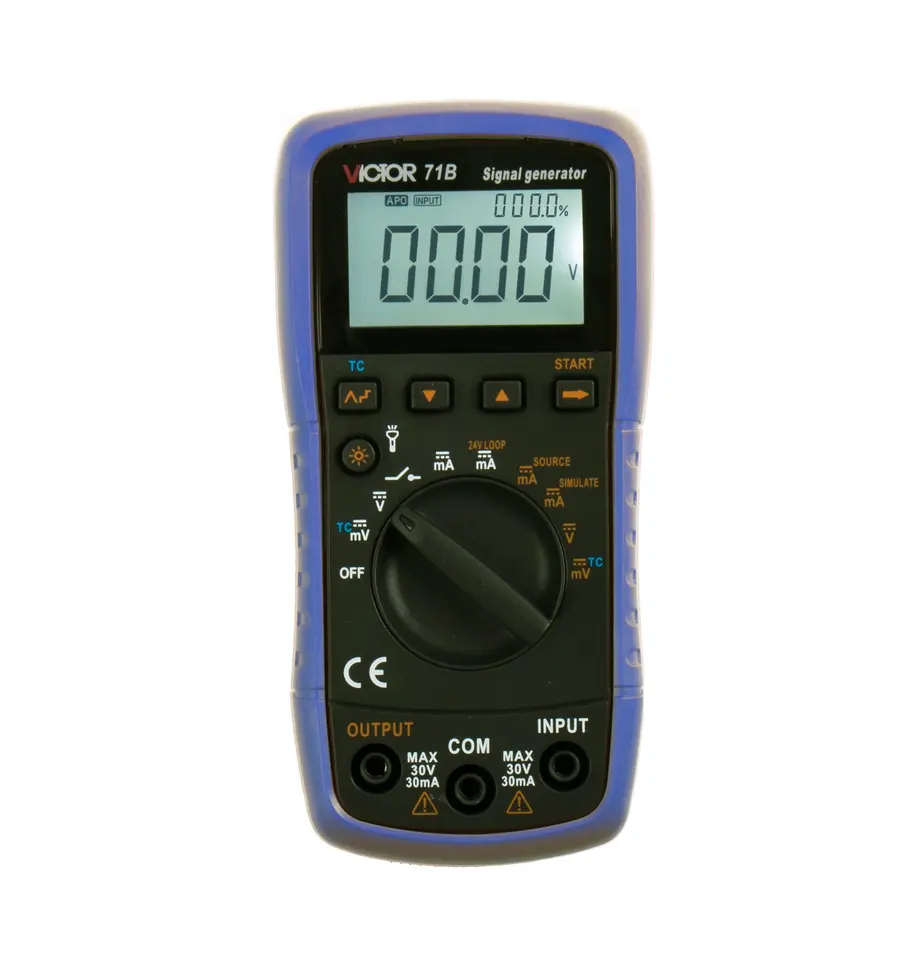

VICTOR 71B Signal Generator

US $57.00 - US $80.75

US $60.00 - US $85.00

Production Lead Time:

40 day(s)

Shipping Method:

EXW

Brand:

victor

Model No.:

71B

Accuracy::

0.2% Accuracy

Power Supply::

One 9 V Alkaline Battery (6LR61)

Measure and source current: :

20mA

Application:

Signal Generator

Description

Contact Supplier

Project			VICTOR 71A	VICTOR 71B
SOURCE	DC millivolt	Range	0～110mV	0～110mV
		Basic accuracy	0.2%+4dgt	0.2%+4dgt
		Resolution	100uV	100uV
	DC voltage	Range	0 ～ 10V	0 ～ 10V
		Basic accuracy	0.2%+4dgt	0.2%+4dgt
		Resolution	10mV	10mV
	DC current	Range	0~22mA	0~22mA
		Basic accuracy	0.2%+4dgt	0.2%+4dgt
		Resolution	0.01mA	0.01mA
	Sink current	Range	0~22mA	0~22mA
		Basic accuracy	0.2%+4dgt	0.2%+4dgt
		Resolution	0.01mA	0.01mA
		External power supply	5 ～ 28V	5 ～ 28V
	Thermocouple	Range		8 types(R/S/K/E/J/T/B/N)
		Basic accuracy		0.2%+4dgt
		Resolution		1℃

MEASURE	DC millivolt	Range	-10~110mV	-10~110mV
		Basic accuracy	0.2%+4dgt	0.2%+4dgt
		Resolution	100uV	100uV
	DC voltage	Range	-5~30V	-5~30V
		Basic accuracy	0.2%+4dgt	0.2%+4dgt
		Resolution	10mV	10mV
	DC current	Range	0~22mA	0~22mA
		Basic accuracy	0.2%+4dgt	0.2%+4dgt
		Resolution	0.01mA	0.01mA
	Loop power	Range	24V	24V
		Basic accuracy	10%	10%
		Limit current	25mA	25mA
	Thermocouple	Range		8types(R/S/K/E/J/T/B/N)
		Basic accuracy		0.2%+4dgt
		Resolution		1℃

Other functions	Manual Step Output	√	√
	Automatic Waveform Output	√	√
Standard Quantity Per Carton		12pcs	12pcs
Standard Carton Measurement		430mm350mm22.50mm	430mm350mm22.50mm
Standard Carton Cross Weight		7Kg	7Kg

VICTOR 71B Generator Thermocouple Current Voltage Portable Signal Process Calibrator V/mA Analog Transmitter Source Simulator

Features:
1. V/mA calibrator
2. 24V loop power supply
3. Simulate transmitter output
4. 8 (R, S, B, K, E, J, T and N) thermocouple output
4. Measurea and source 20mA current
5. Output 10V DC voltage
6. Flash light function

Measurement function:
DC mV range: -10~100mV; resolution: 100uV, accuracy: ±(0.2%+4).
DCV range: -5~30V;resolution: 10mV, accuracy: ±(0.2%+4).
DC mA range: 0~22mA; resolution: 0.01mA, accuracy: ±(0.2%+4).
Loop supply: 24V; Max current: 25mA, accuracy: 10%.
Thermocouple (R, S, B, K, E, J, T and N): 0-1350℃ (K); resolution: 1℃,

Source output function:
DC mV output range: 0~110.0mV, resolution: 100uV, accuracy:±(0.2%+4).
DCV output range: 0~10.00V, resolution: 10mV, accuracy: ±(0.2%+4).
DCA output range: 0~22.00mA, resolution: 0.01mA, accuracy: ±(0.2%+4).
Simulate: 0~22.00mA, resolution: 0.001mA, accuracy: ±(0.2%+4).
Thermocouple output range: R: 0-1760℃, S: 0-1760℃, B: 400-1800℃, K: 0-1350℃, E: 0-700℃, J: 0-950℃, T: 0-400℃, N: 0-1300℃.
Resolution: 1℃., Accuracy: ±0.5%+3℃
Backlight: Yes
Display area: 45mm*26mm
Battery:3 *1.5V 7 battery
Dimensions (with jacket): 147×75 ×42 mm
