VICTOR 78+ Process Signal Source

US $99.75 - US $123.50

US $105.00 - US $130.00

Production Lead Time:

40 day(s)

Shipping Method:

EXW

Brand:

VICTOR

Model No.:

78+

Measuring Resistance Range: :

40MΩ, 0.1Ω~40MΩ

Measuring Current Range: :

400mA, 10uA~400mA

Application:

Process Signal Source

Description

Contact Supplier

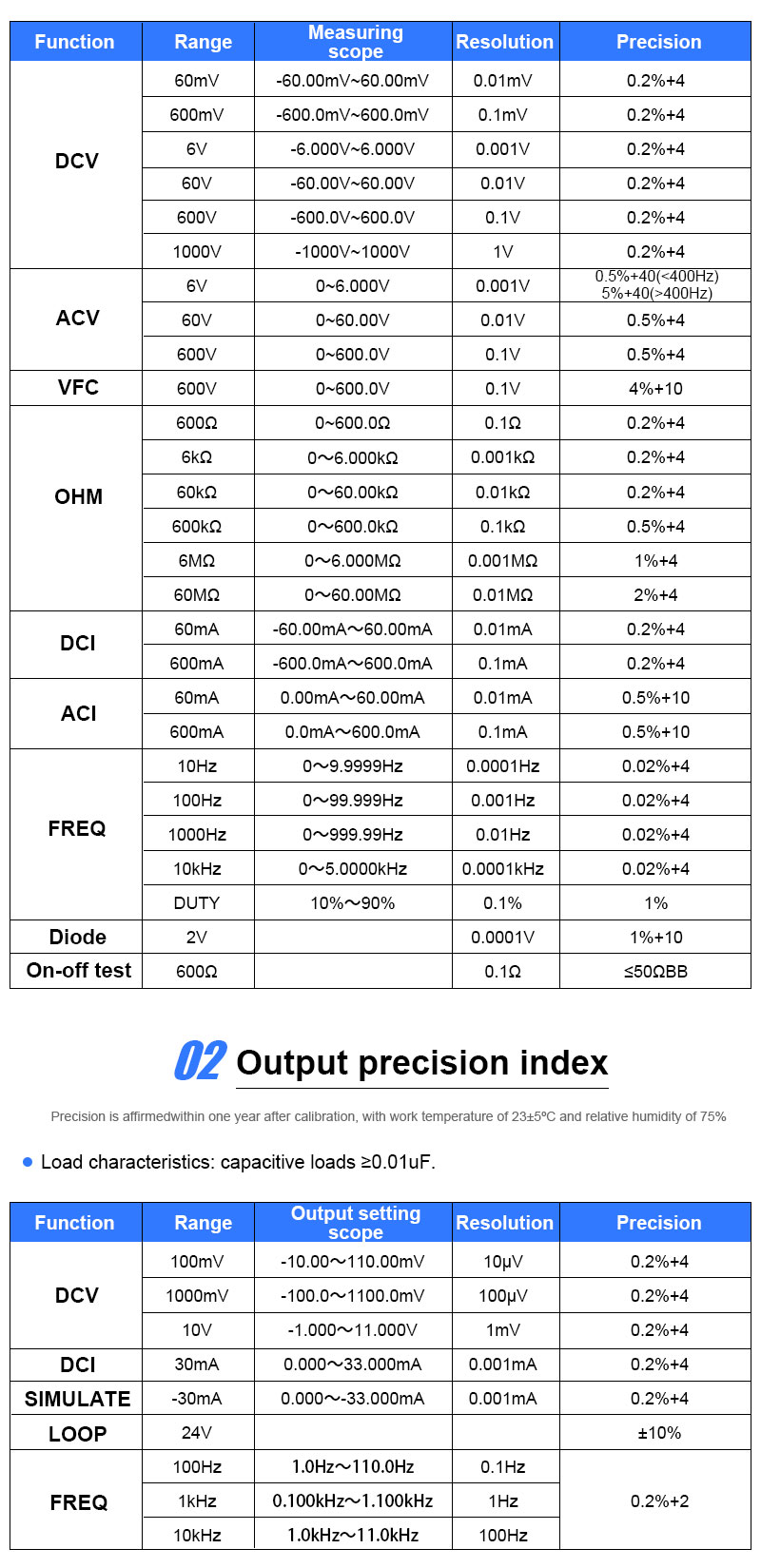

Project			VICTOR 77	VICTOR 78	VICTOR 79
Measurement	DC voltage	Range	±51V	±400V	±400V
		The highest resolution	10mV	0.01mV	0.01mV
		Basic accuracy	0.5%	0.2%	0.2%
	AC voltage	Range	`510V	400V	400V
		The highest resolution	100mV	0.1mV	0.1mV
		Basic accuracy	1.5%	0.5%	0.5%
	Resistance	Range	5kΩ	40MΩ	40MΩ
		The highest resolution	1Ω	0.1Ω	0.1Ω
		Basic accuracy	0.5%	0.2%	0.2%
	DC current	Range	±22mA	±400mA	±400mA
		The highest resolution	1uA	10uA	10uA
		Basic accuracy	0.2%	0.2%	0.2%
	AC current	Range	N/A	400mA	400mA
		The highest resolution		10uA	10uA
		Basic accuracy		0.5%	0.5%
	Thermocouple	Range	N/A	N/A	R,S,B,E,K,J,T,N
		The highest resolution			1°C
		Basic accuracy			0.5%
	RTD	Range	N/A	N/A	Cu50,Pt100
		The highest resolution			1°C
		Basic accuracy			0.5%
	CAP	Range	N/A	N/A	N/A
		The highest resolution
		Basic accuracy
	Frequency		N/A	10Hz～100kHz	10Hz～100kHz
	Diode test		√	√	√
	Continuity beeper		√	√	√
	Data hold		√	√	√
	Relative value measurement		N/A	√	√
Source	DC voltage	Range	N/A	-50.0mV～550.0mV -0.500V～5.500V	-10.00mV～110.00mV -0.5000V～5.5000V
		Resolution		0.1mV,1mV	0.01mV,0.1mV
		Basic accuracy		0.2%	0.2%
	Resistance	Range	N/A	N/A	0～400.0Ω
		Resolution			0.1Ω
		Basic accuracy			0.2%
	DC current	Range	22mA	22mA	22mA
		Resolution	0.001mA	0.01mA	0.001mA
		Basic accuracy	0.2%	0.2%	0.2%
	Simulating transmitter		√	√	√
	25％,100％Step output		√	√	√
	Automatic ramp		N/A	√	√
	Automatic step		N/A	√	√
	Display current and % of span		√	√	√
	Loop power		24V	15V	15V
	Frequency		N/A	1.0Hz～11.0kHz	1.0Hz～11.0kHz
	Thermocouple		N/A	N/A	R,S,B,E,K,J,T,N
	RTD		N/A	N/A	Cu50,Pt100
Loop detection	The 24V loop power supply and measuring the current		√	N/A	N/A
Loop detection	Built in 250 Ω HART loop resistance		√	N/A	N/A
Power Supply			2×1.5V AA Alkaline battery	4×1.5V AAA Alkaline battery	4×1.5V AAA Alkaline battery
Auto Power-off			√	√	√
Backlight			N/A	√	√
Safety			CAT Ⅳ 600V, Pollution degree 2	CAT Ⅲ 600V , Pollution degree 2	CAT Ⅲ 600V, Pollution degree 2
Size			180×90×52	205×95×42	205×95×42
Weight			About 400g	About 500g	About 500g
Accessories			Test line, manual,fuse	Test line, manual,fuse	Test line, manual,fuse
Standard Quantity Per Carton			10pcs	10pcs	10pcs
Standard Carton Measurement			395mm385mm260mm	395mm385mm260mm	395mm385mm260mm
Standard Carton Cross Weight			8.8Kg	9.8Kg	10.2Kg

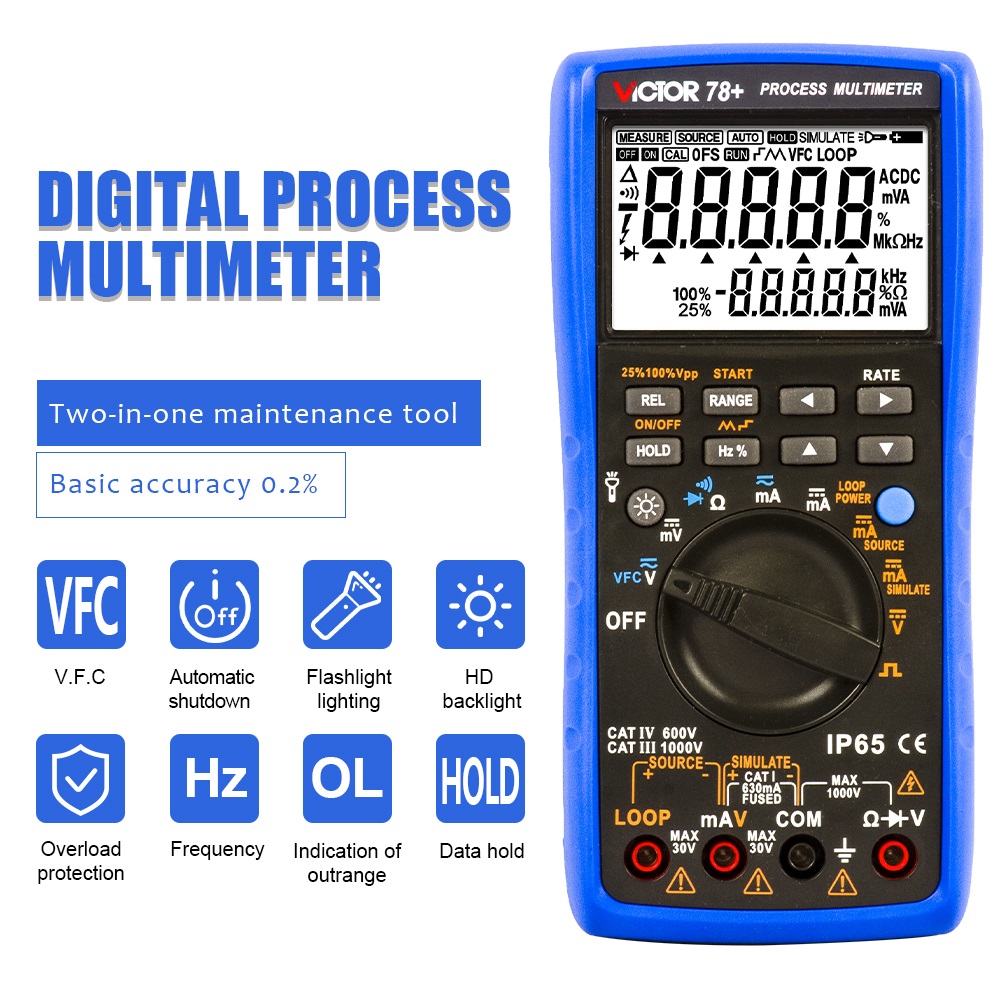

ProcessMeter ( referred to as “the meter ”)is a handheld, battery-operated tool for measuring
electrical parameters. It has all the features of a digital multimeter, it could also output signals of
direct voltage, current and frequency as well.
If the meter is damaged or something is missing, contact the place of purchase immediately.
Contact a distributor for information about DMM (digital multimeter) accessories.
General Specifications

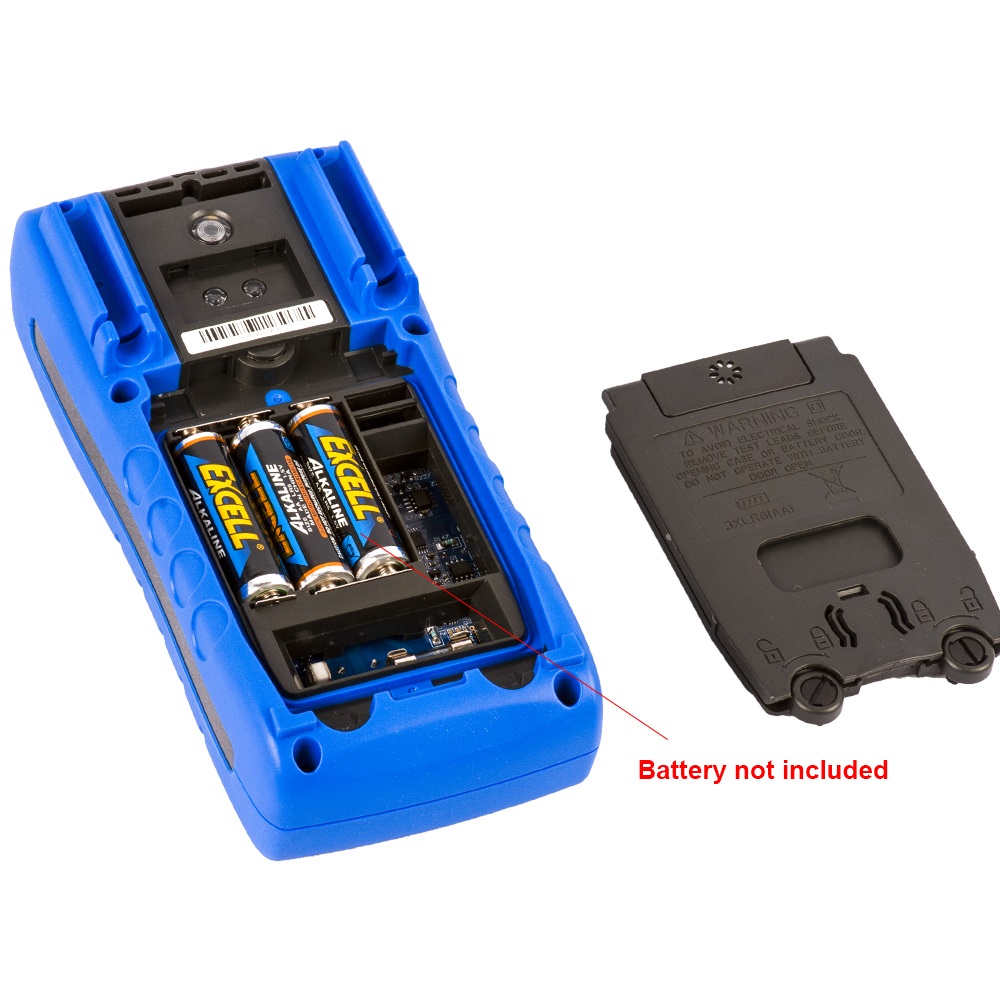

Power supply: 6V batteries(4×1.5 V alkaline AAA batteries or 4×1.5 V Ni-MH AAA
batteries )Maximum Voltage:600Vp-p(Maximum Voltage between all input jacks and earth ground)
30V DC (Maximum Voltage between all output jacks and earth ground)

Operating temperature: 5℃-50℃
Operating relative humidity:≤ 80% RH
Storage temperature: -10 ℃-55 ℃
Storage humidity:≤ 90%RH

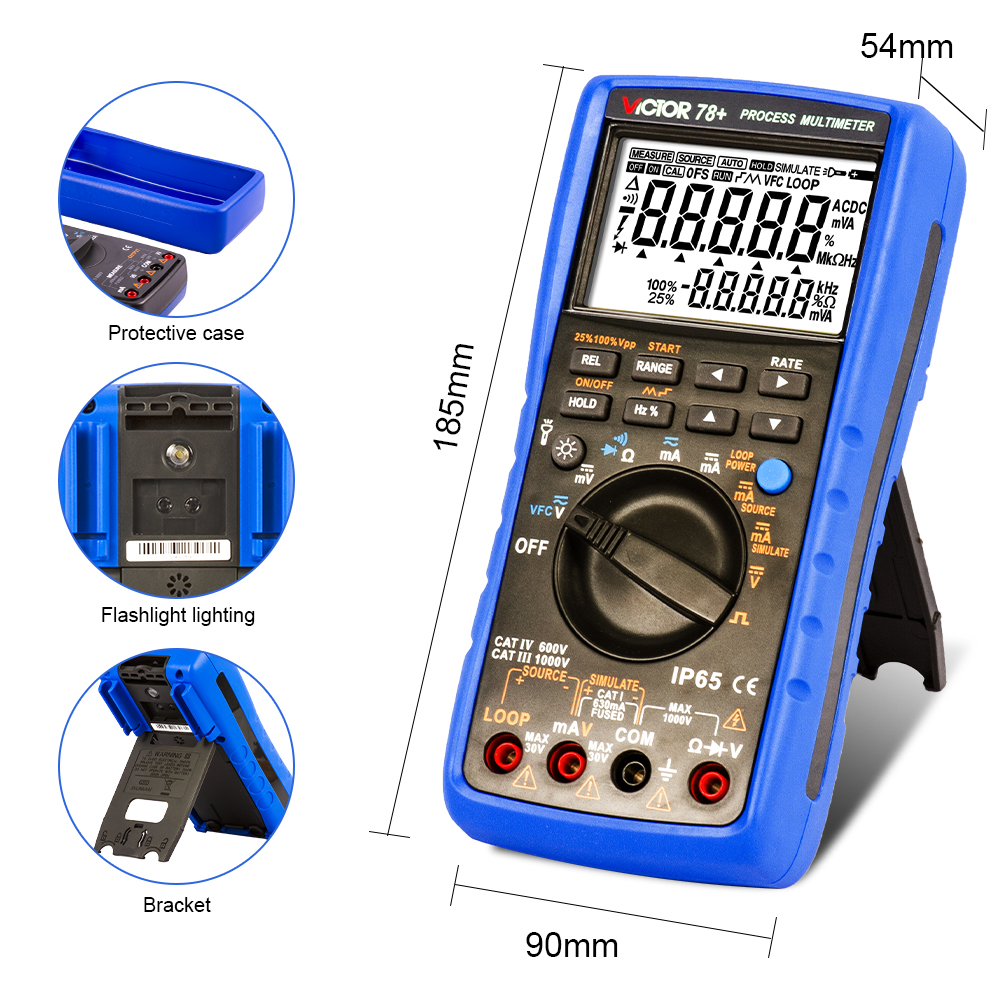

Size : 205 ×95× 42 mm (plus protector)

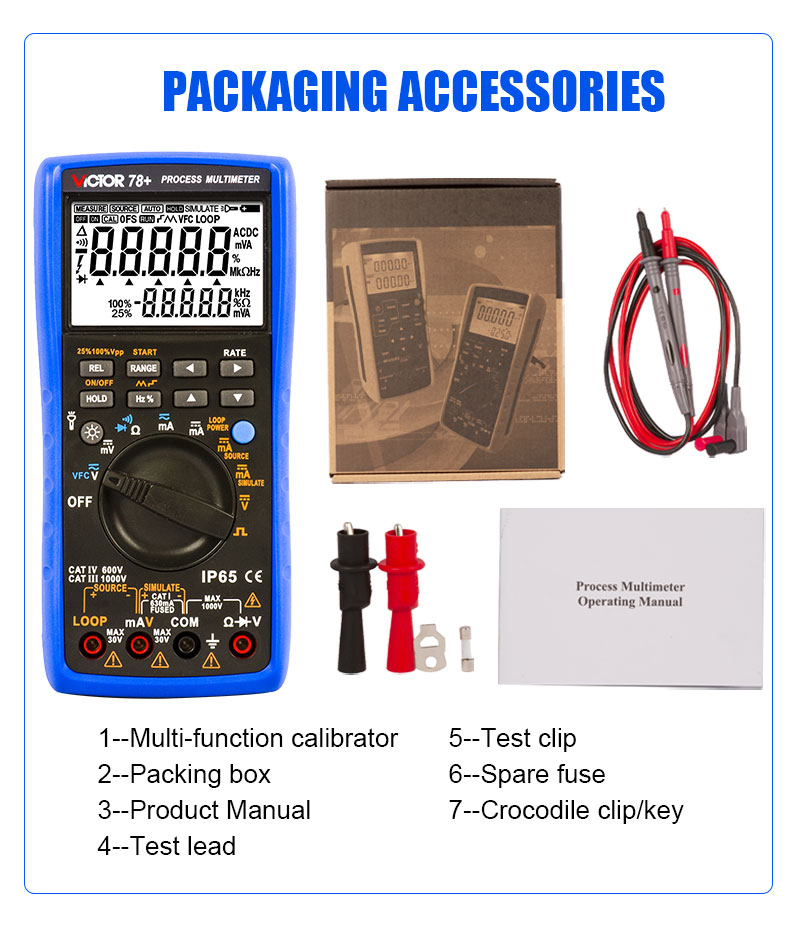

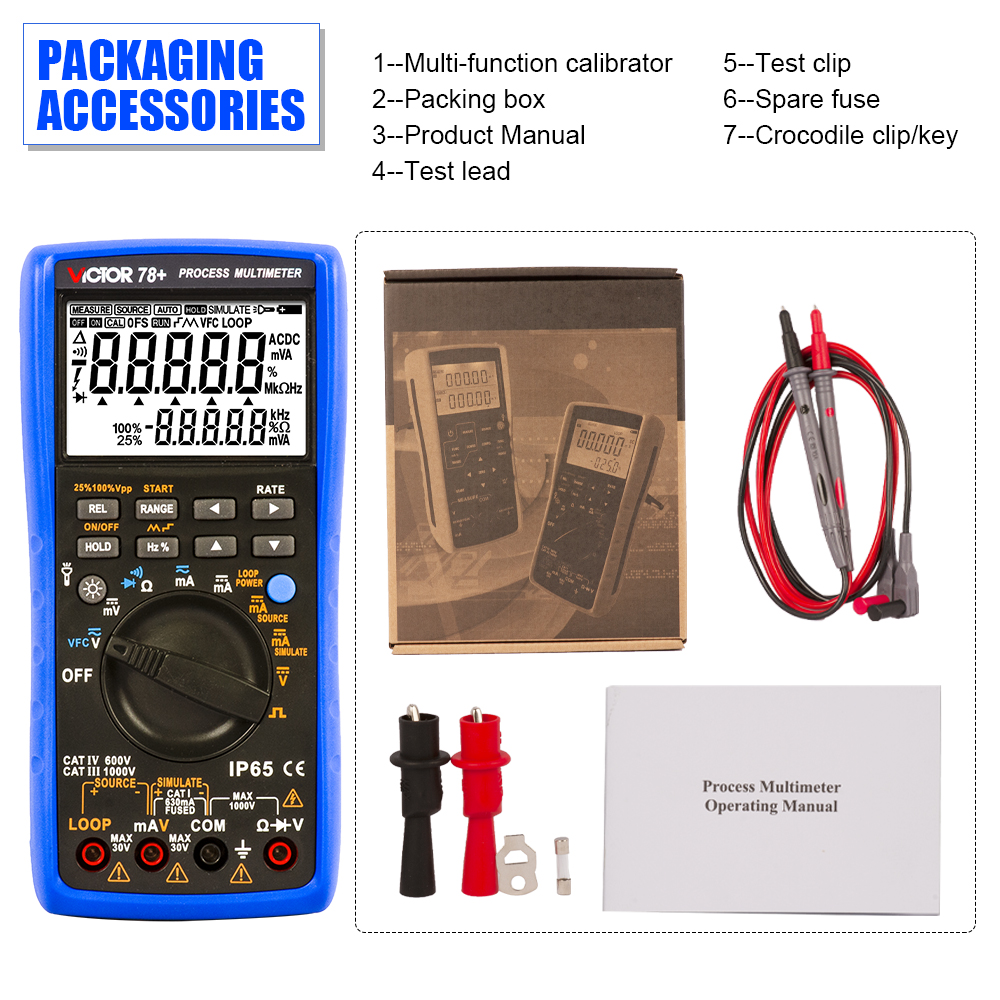

Accessories: a copy of users manual, a set of CF-733370 industrial test lead (with alligator
clips) and two 63mA/250 fast-blow fuses
Options: battery charger
