VICTOR 925 9999 Counts Smart Digital Multimeter
Share this page
US $12.35 - US $14.25
US $13.00 - US $15.00
Production Lead Time:
40 day(s)
Shipping Method:
EXW
Model No.:
925
Brand:
Victor
Measuring Current Range::
600mA
Measuring Voltage Range::
600V
Measuring Capacitance Range::
100mF
Frequency: :
10Hz~1MHz
Max Display: :
9999 counts
Application:
multimeter
Description
Contact Supplier
Description

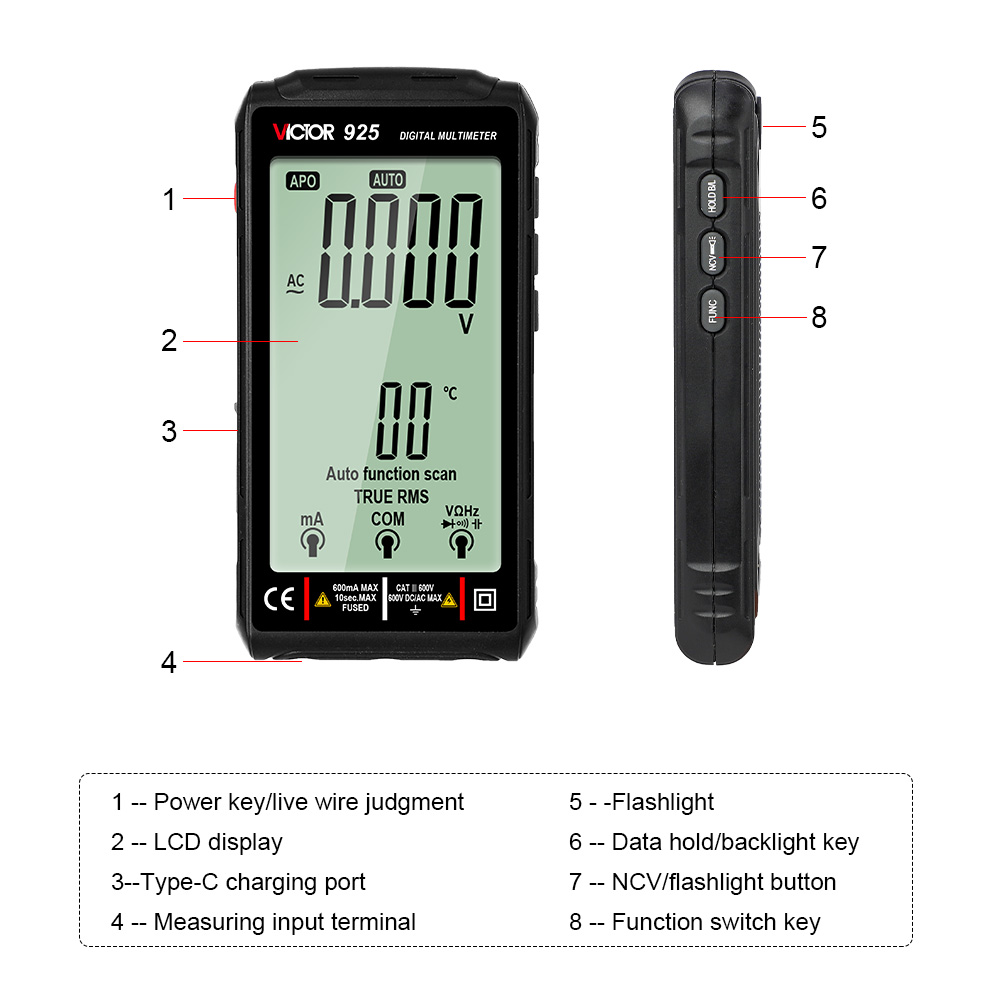

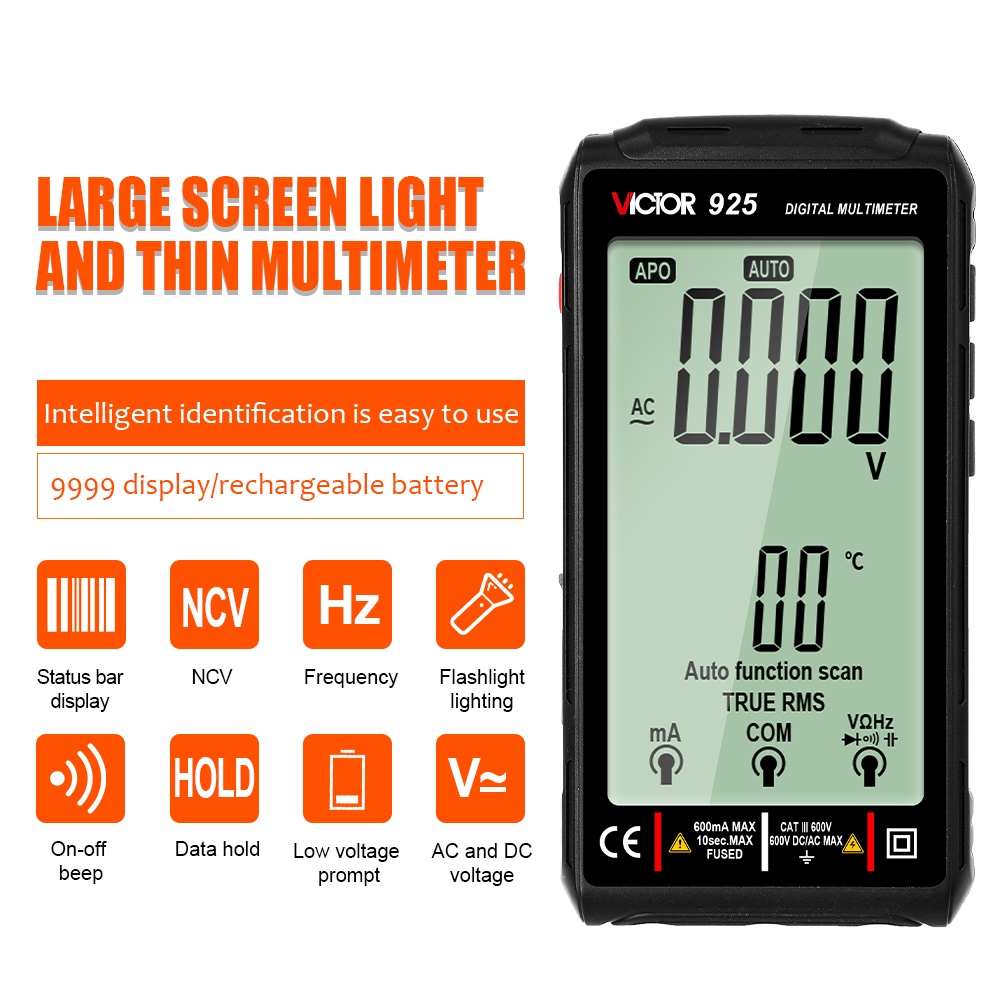

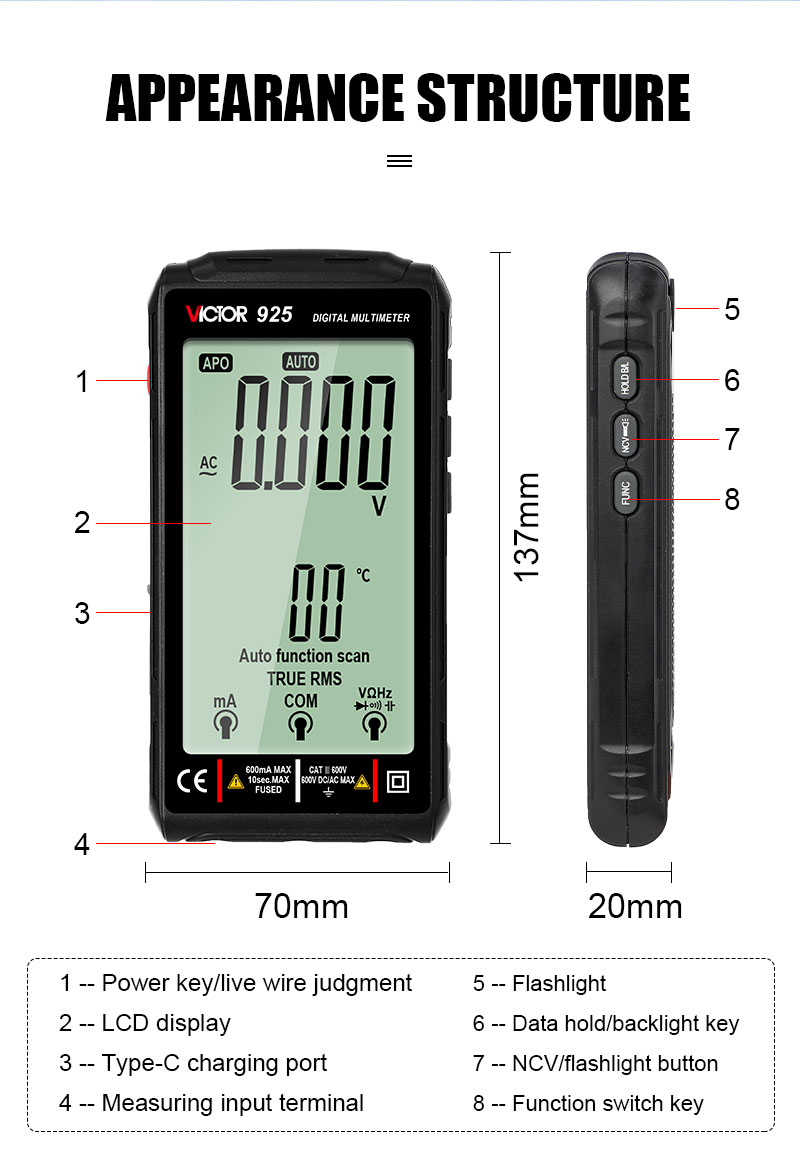

It is an large-screen intelligent multi-purpose meter that can automatically identify functions and ranges according to the input measurement signals, making the operation simpler, more convenient and faster. The product is designed to meet the requirements of safety regulations CAT III 600V, with full functional design overload protection, safe and reliable operation, and innovative patent appearance design and functional configuration logo.

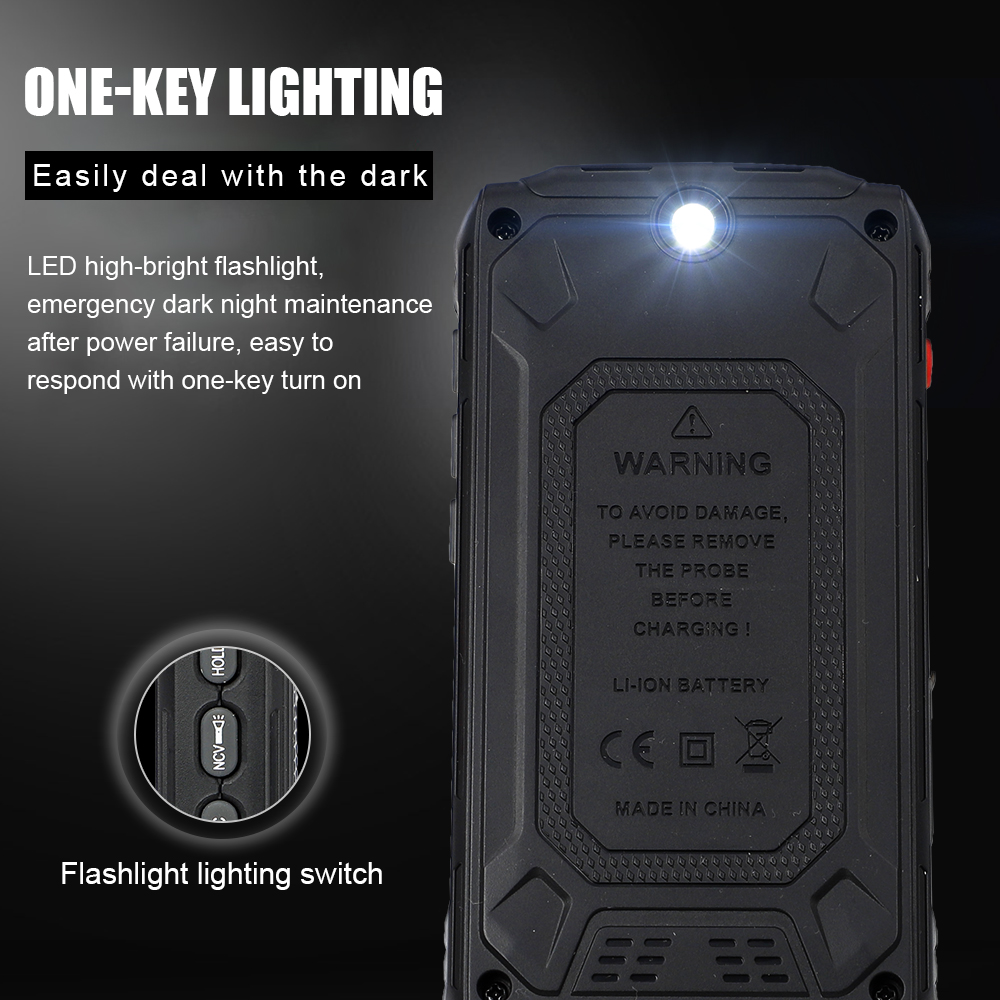

It can be used to measure DCV, ACV, DCA, ACA, resistance and continuity test, NCV (non-contact ACV induction measurement), Live(live line judgment) and torch functions. It is the ideal entry level tools of the electronic hobbyists and home users.

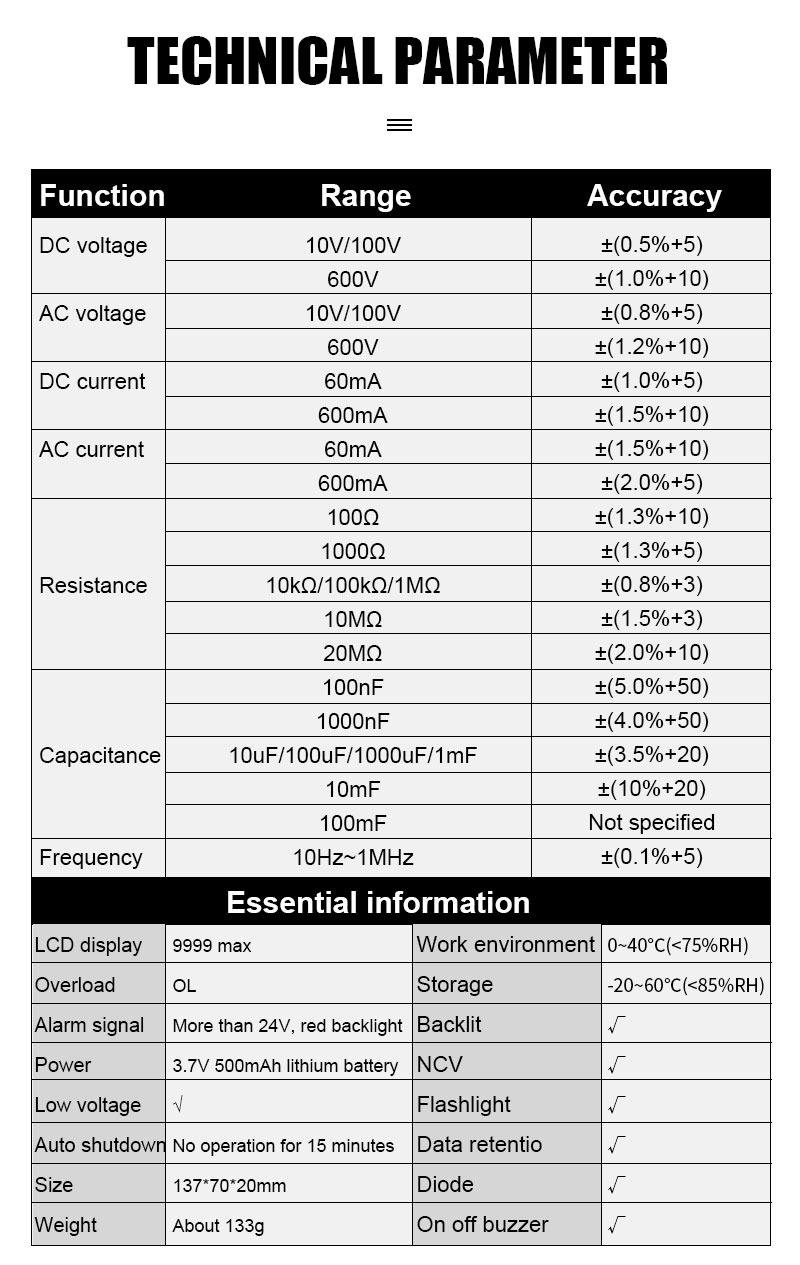

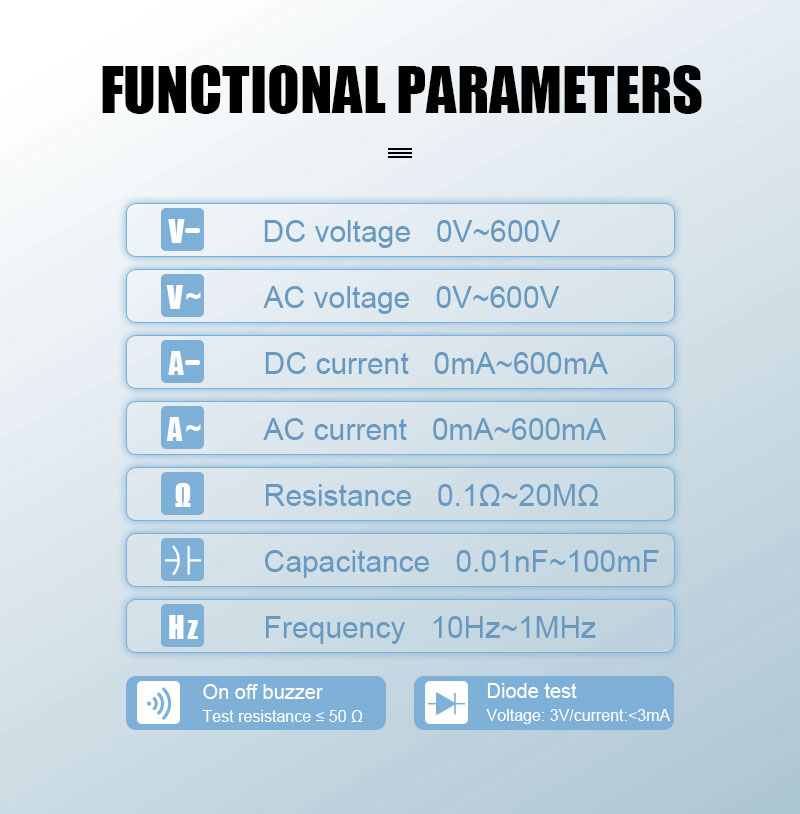

Specification
DCV
Range
Accuracy
Resolution
Input impedance
Overload protection
10V
±(0.5%+3)
0.001V
≥300Ω
600V DV/AC RMS
100V
0.01V
600V
±(1.0%+10)
0.1V
ACV
Range
Accuracy
Resolution
Input impedance
Overload protection
10V
±(0.8%+5)
0.001V
≥300Ω
600V DV/AC RMS
100V
0.01V
600V
±(1.2%+10)
0.1V
DCA
Range
Accuracy
Resolution
Overload protection
60mA
±(1.0%+5)
0.01mA
Fuse600mA/250V
600mA
±(1.5%+10)
0.1mA
ACA
Range
Accuracy
Resolution
Overload protection
60mA
±(1.5%+10)
0.01mA
Fuse600mA/250V
600mA
±(2.0%+5)
0.1mA
Resistance
Range
Accuracy
Resolution
Overload protection
1000Ω
±(1.3%+5)
0.1Ω
250V DV/AC RMS
10kΩ
±(0.8%+3)
0.001kΩ
100kΩ
0.01Ω
1MΩ
0.1kΩ
10MΩ
±(1.5%+3)
0.001MΩ
20MΩ
±(2.0%+10)
0.01MΩ
Capacitance
Range
Accuracy
Resolution
Overload protection
100nF
±(4.0%+20)
0.01nF
250V DC/AC RMS
1000nF
0.1nF
10uF
±(3.5%+20)
0.001uF
100uF
0.01uF
1000uF
0.1uF
1mF
0.001mF
10mF
±(10%+20)
0.01mF
100mF
0.1mF
