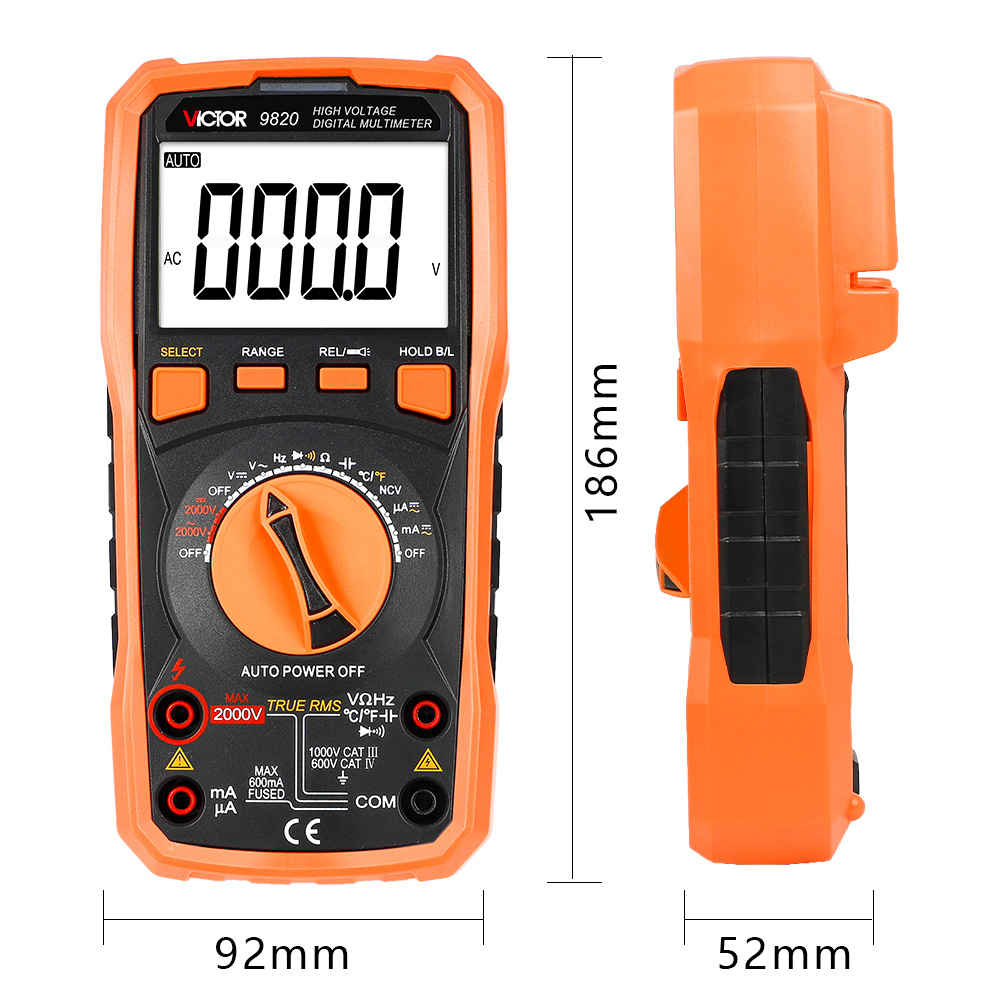

VICTOR 9820 High Voltage Digital Multimeter 2000V
US $14.25 - US $21.85
US $15.00 - US $23.00
Production Lead Time:
40 day(s)
Shipping Method:
EXW
Application:
High Voltage Digital Multimeter
Model No.:
9820
Brand:
Victor
Measuring Voltage Range::
2000V
Measuring Capacitance Range: :
20mF
Operating Temperature: :
0-40℃
Frequency range: :
10MHz
Input resistance: :
10MΩ
Description
Contact Supplier
Description
1. GENERAL
The instrument is a stable and good performance digital multimeter driven by battery. It uses the LCD with 28mm-high figure to make the reading clear, and make the operation more convenient.
The instrument has the function of measuring DCV, ACV, DCA, ACA, resistance, capacitance, AC frequency, diode, triode and continuity test, temperature and automatic power off, backlight. The instrument takes dual-integral A/D converter as key point, it is an excellent tool. The new generation series of products add NCV (non-contact ACV induction measurement) function and include the torch function, it is more convenient for users to use.
2. OPEN PACKING FOR CHECKING
Open the box, take out the meter, checking the items below if they are missing or damaging:
1.5V AAA LR03 Battery 4pcs
Instruction 1pc
Test leads 1pair
3. GENERAL SPECIFICATION
* Displaying: LCD displaying
* Max. indication: 5999(3 1/2), auto polarity indication
* Measuring method: dual slope A/D transfer
* Sampling rate: approx. 3 times/sec
* Over range indication: MSD displays “OL”
* Low battery indication
* Operation: 0～40℃,relative humidity <75%
* Storage environment:-20℃~60℃, relative humidity <85%RH;
* Power:Four 1.5V AAA battery LR03
* Size: 186×92×52 mm
* Weight: approx.395g (including batteries)
Instruction 1pc
Test leads 1pair
3. GENERAL SPECIFICATION
* Displaying: LCD displaying
* Max. indication: 5999(3 1/2), auto polarity indication
* Measuring method: dual slope A/D transfer
* Sampling rate: approx. 3 times/sec
* Over range indication: MSD displays “OL”
* Low battery indication
* Operation: 0～40℃,relative humidity <75%
* Storage environment:-20℃~60℃, relative humidity <85%RH;
* Power:Four 1.5V AAA battery LR03
* Size: 186×92×52 mm
* Weight: approx.395g (including batteries)
