VICTOR 98A+ Thermocouple Tester
Share this page
US $66.50 - US $90.25
US $70.00 - US $95.00
Production Lead Time:
40 day(s)
Shipping Method:
EXW
Model No.:
98A+
Brand:
victor
Feature: :
USB Contact
DIY Supplies: :
ELECTRICAL
RTD Test: :
Pt100
USB Contact: :
Free test leads
Description
Contact Supplier
Description
Project
98A+
DC voltage
Range
200mV/2V/20V/200V/1000V
Basic accuracy
±(0.05%+10)
AC voltage
Range
200mV/2V/20V/200V/1000V
Basic accuracy
±(0.5%+40)
DC current
Range
200uA/2000uA/20mA/200mA/2A/10A
Basic accuracy
±(0.2%+10)
AC current
Range
200uA/2000uA/20mA/200mA/2A/10A
Basic accuracy
±(0.8%+30)
Resistance
Range
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/60MΩ
Basic accuracy
±(0.2%+5)
Capacitance
Range
10nF/100nF/1000nF/10uF/100uF/1000uF/10mF/100mF
Basic accuracy
±(5%+5)
Frequency
Range
10Hz~10MHz
Basic accuracy
±(0.02%+4)
Thermocouple
Range
K indexing:-200.0°C~1372.0°C
Basic accuracy
±(0.5%+3°C)
RTD
Range
Pt100:-200.0°C~800.0°C
Basic accuracy
±(0.5%+3°C)
Display words
22000
The measurement rate
3 times / sec
Analog Bar graph
20 times / sec
Automatic / manual range
Measure the true effective value
Bandwidth
1kHz
The duty ratio
10%~90%
Diode test
Continuity beeper
dBm
AC+DC
MAX/MIN/AVG
Relative value measurement
Data Hold
Auto Hold
Peak Hold
The reference junction compensation
°C/ ° F conversion

1,4-1 / 2 bit resolution, display 22000 words, DC voltage accuracy of 0.05%;
2, The measurement function:
* AC voltage, DC voltage, AC current, DC current, resistance, capacitance
* On / off, diode, frequency / duty cycle measurement
* Temperature measurement, thermal resistance measurement, peak measurement (PEAK)
* AC + DC measurement (AC + DC), AC + frequency (AC + Hz) measurement
*Relative value measurement (REL_%), maximum value, minimum value, average value measurement
 (MAX / MIN / AVG)
3, The display rate: 2.5 to 3 times / second, analog bar refresh rate: 20 ~ 24 times / sec.
4, The AC of true RMS measurement, measurement bandwidth: 20Hz ~ 1kHz.
5, Can choose manual or automatic range measurement.
6, The Display of measurement data hold (DIS_HOLD) and automatic hold (AUTO_HOLD) function.
7, Peak measurement function, 1ms peak sampling capture, can capture spikes pulse.
8, Can choose 1 ~ 24000 reference impedance decibel measurement.
9, Thermocouple measurement: K indexing, built-in temperature sensor, automatic cold junction compensation,
 can be ° C or ° Ftemperature display.
10, Large-screen multi-data display, which can display the measured value and other related measurement information
11, Multi-data parameter recording function: manual recording, regular recording, and easy to query the record data.
12, The instrument built-in large-capacity data storage, can store up to 1000 (group) field measurement data.
Can record data, or send to the user PC.

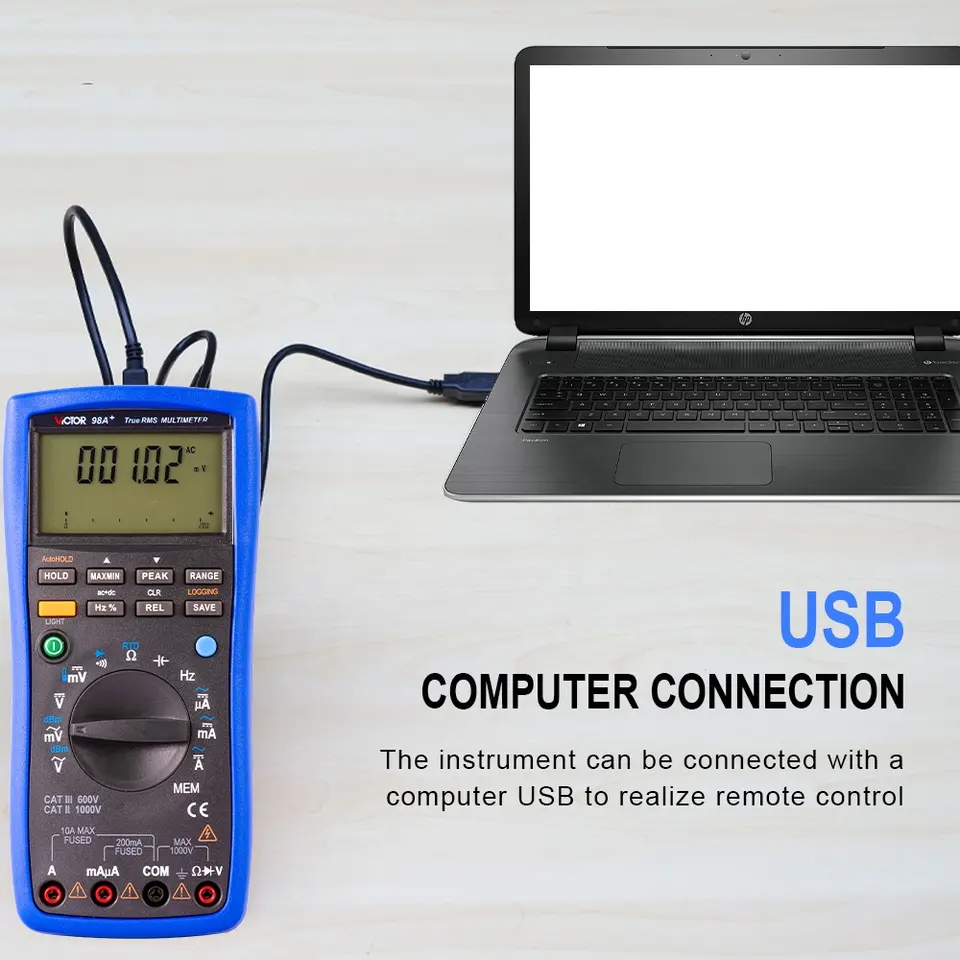

13, Instrument online communication function

* The instrument communicates with the PC using an isolated serial communication module compatible with the USB interface.
* Support industry standard SCPI command, through the device driver software to achieve remote control of the instrument.Through the powerful, friendly man-machine interface, users can easily access the instrument in a number of data parameters ,* Data storage, processing, management, etc., to obtain the data in the form of graphics or forms.
