Valta Retrofit T8 LED Tube for Rolling Stock
Production Lead Time:
7 day(s)
Shipping Method:
Hong Kong or Shenzhen, China Port
Product Name:
Valta Metro-Lite T8 LED Tube
Life Span (Nom.):
>50,000 hours
Rated Power (Nom.):
10W, 16W, 25W, 30W
Efficacy (Nom.):
up to 140lm/W
CRI (Nom.):
≥80
Power Factor:
>0.90 (for 230VAC)
Length:
600mm, 1200mm, 1500mm, 1800mm
Dimmable/ Control:
No
Material/ End Cap:
PC with aluminum, G13 rotatable end cap
Operating Conditions:
-20°C to 50°C, dry indoor areas
Ingress Protection:
IP40
Beam Angle:
180°
Approved Marks:
CE, RoHS
Warranty:
2-year limited warranty
Description
Contact Supplier
Description

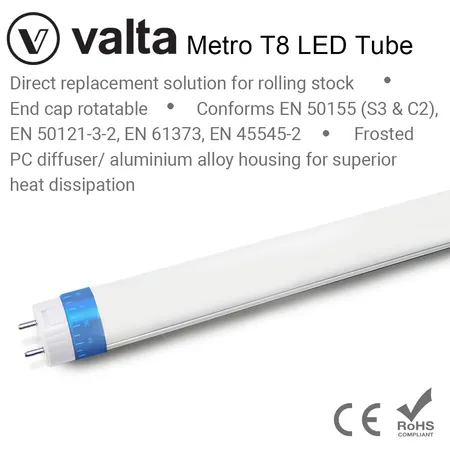

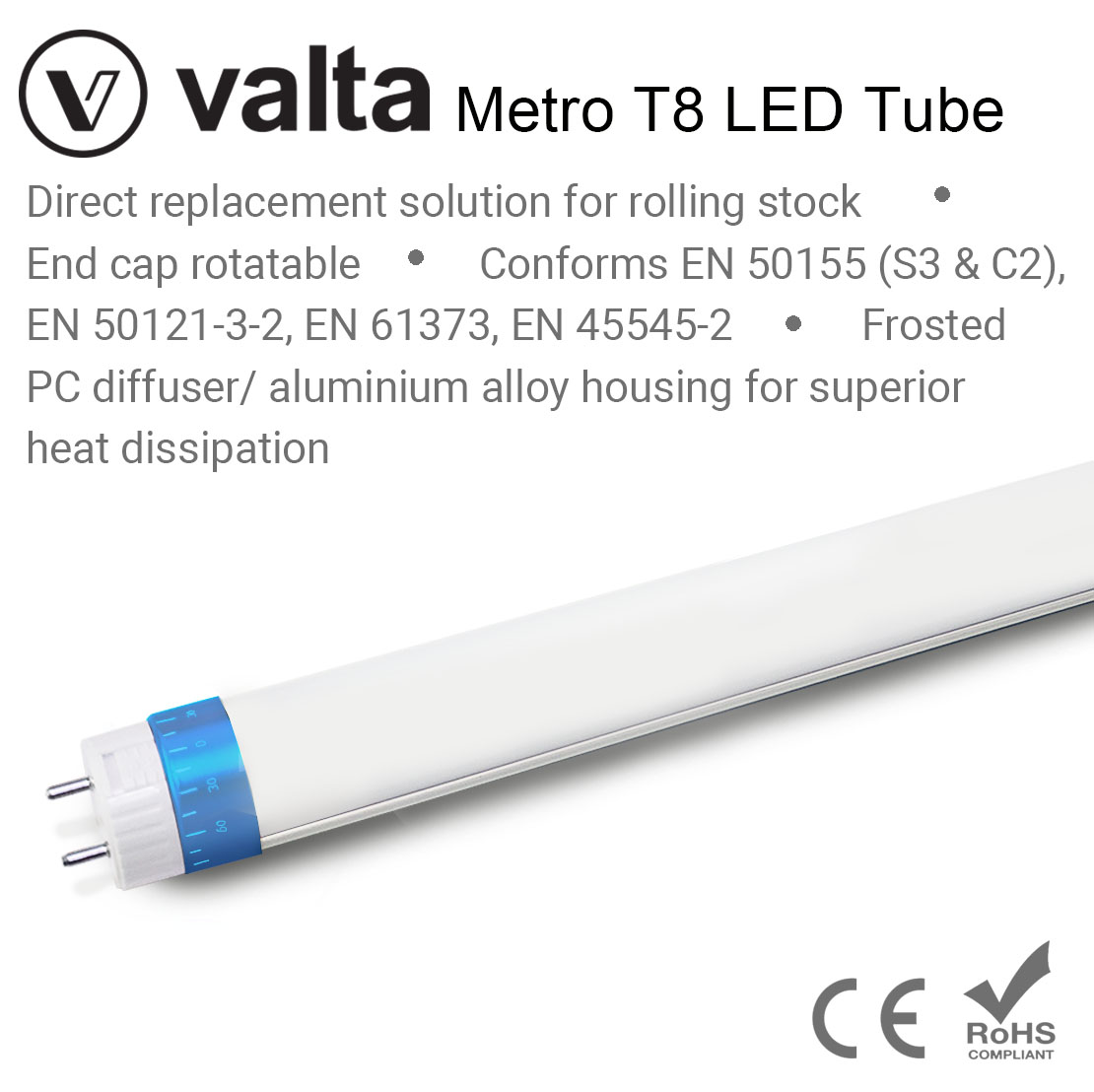

Valta Metro-Lite T8 LED Tube
Plug n Play Replacement Solution For Rolling Stock
Product Description:
- Plug n Play LED tube to replace fluorescent T8 Tube in rolling stock
- Highly reliable LED and driver
- Frosted PC and aluminum alloy housing for superior heat dissipation
- Available in 24Vdc, 110Vdc and 230Vac
- Flicker-free with instant start
- End caps with adjustable orientation
- Conforms to the following standards:
- EN 50155
- EN 50121-3-2
- EN 61373
- EN 45545-2
- Available in 4 lengths and 3 color temperatures
Safety Features:
- Fool proof installation (non-destructive when ends reversed)
- Input transient protection
- Under voltage protection
- Built-in LED circuit redundancy
- Protected against power supply interruptions (EN 50155 Class S2 and C2)
- Cable: Low Smoke Zero Halogen (LSZH)
- No mercury content, environmentally friendly
Product Data:
| Model No | Product Name | Length | CCT | Power** | Lumens | Cap | Dimmable |
|---|---|---|---|---|---|---|---|
| 1221-20-02-41 | Valta Metro-Lite T8 LED 600 10W 830 | 600mm | 3000 K | 10 W | 1200 lm | G13 | No |
| 1221-20-02-61 | Valta Metro-Lite T8 LED 600 10W 840 | 600 mm | 4000 K | 10 W | 1200 lm | G13 | No |
| 1221-20-02-A1 | Valta Metro-Lite T8 LED 600 10W 860 | 600 mm | 6000 K | 10 W | 1200 lm | G13 | No |
| 1222-20-02-41 | Valta Metro-Lite T8 LED 1200 16W 830 | 1200 mm | 3000 K | 16 W | 2240 lm | G13 | No |
| 1222-20-02-61 | Valta Metro-Lite T8 LED 1200 16W 840 | 1200 mm | 4000 K | 16 W | 2240 lm | G13 | No |
| 1222-20-02-A1 | Valta Metro-Lite T8 LED 1200 16W 860 | 1200 mm | 6000 K | 16 W | 2240 lm | G13 | No |
| 1223-20-02-41 | Valta Metro-Lite T8 LED 1500 25W 830 | 1500 mm | 3000 K | 25 W | 3500 lm | G13 | No |
| 1223-20-02-61 | Valta Metro-Lite T8 LED 1500 25W 840 | 1500 mm | 4000 K | 25 W | 3500 lm | G13 | No |
| 1223-20-02-A1 | Valta Metro-Lite T8 LED 1500 22W 860 | 1500 mm | 6000 K | 25 W | 3500 lm | G13 | No |
| 1224-20-02-41 | Valta Metro-Lite T8 LED 1800 30W 830 | 1800 mm | 3000 K | 30 W | 3900 lm | G13 | No |
| 1224-20-02-61 | Valta Metro-Lite T8 LED 1800 30W 840 | 1800 mm | 4000 K | 30 W | 3900 lm | G13 | No |
| 1224-20-02-A1 | Valta Metro-Lite T8 LED 1800 30W 860 | 1800mm | 6000 K | 30 W | 3900 lm | G13 | No |
Logistical data:
| Product Name | Packaging Unit | Dimension (L x W x H) | Gross Weight |
|---|---|---|---|
| Valta Metro-Lite T8 LED 600 | Single pack, 25 units in a Carton box | 650 mm x 190 mm x 190 mm | 8 kg |
| Valta Metro-Lite T8 LED 1200 | Single pack, 25 units in a Carton box | 1250 mm x 190 mm x 190 mm | 13 kg |
| Valta Metro-Lite T8 LED 1500 | Single pack, 25 units in a Carton box | 1550 mm x 190 mm x 190 mm | 16 kg |
| Valta Metro-Lite T8 LED 1800 | Single pack, 25 units in a Carton box | 1850 mm x 190 mm x 190 mm | 19 kg |
Additional data:
Visit www.valta.com for more product information
