Valta Retrofit T8 LED Tube in Frosted PC/ Aluminum Housing
Production Lead Time:
7 day(s)
Shipping Method:
Hong Kong or Shenzhen, China Port
Product Name:
Valta Faci-lite T8 LED Tube
Life Span (Nom.):
>50,000 hours
Rated Power (Nom.):
9W, 18W, 25W
Efficacy (Nom.):
up to 140lm/W
CRI (Nom.):
≥80
Power Factor:
>0.90 (AC mains), >0.80 (ECG ballast), >0.60 (CCG ballast)
Length:
600mm, 1200mm, 1500mm
Dimmable/ Control:
No
Material/ End Cap:
PC and aluminum alloy, G13
Operating Conditions:
-20°C to 60°C, dry indoor area
Type of Protection:
IP 20
Beam Angle:
180°
Approved Marks:
CE, RoHS
Warranty:
2-year limited warranty
Description
Contact Supplier
Description

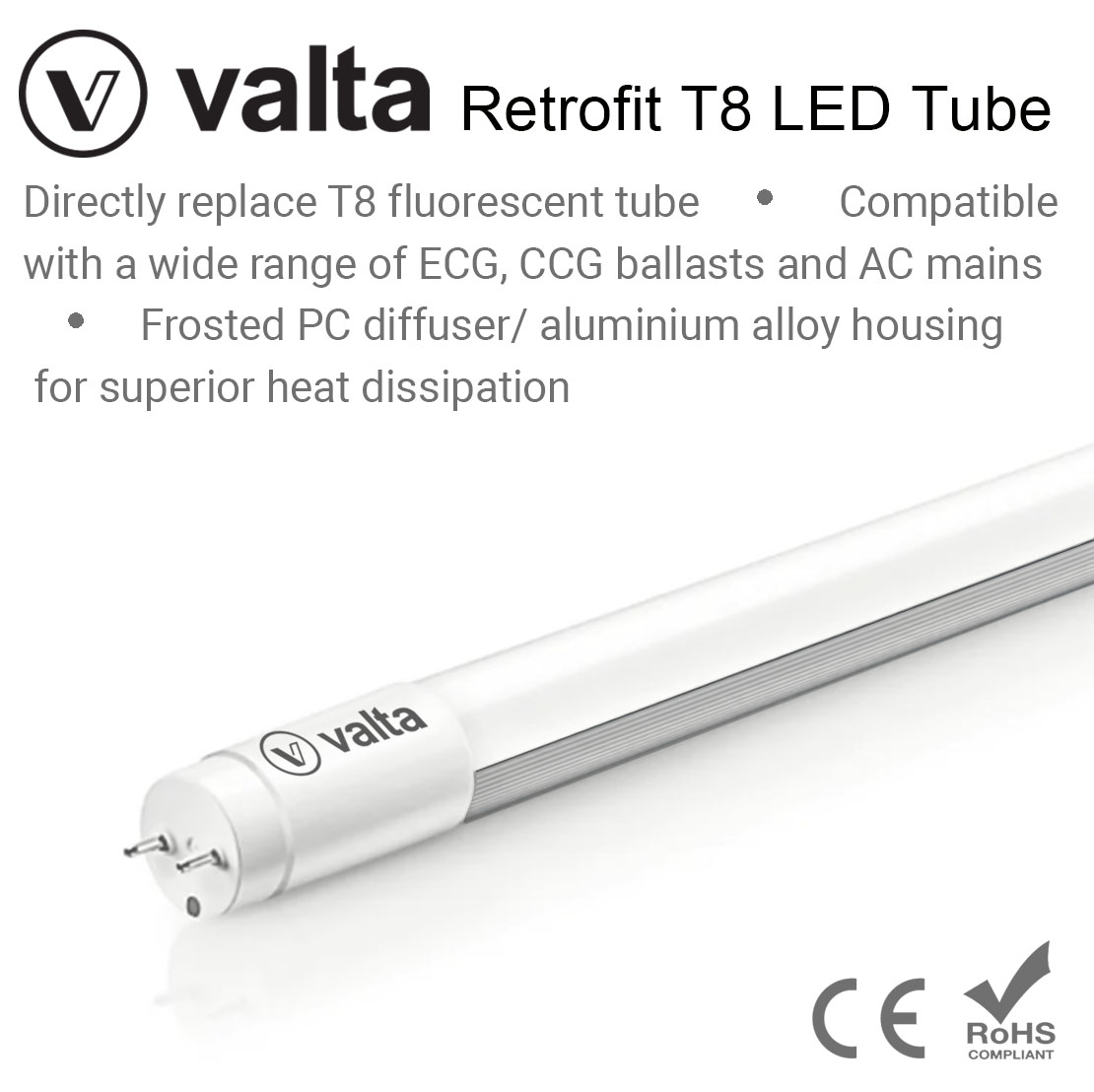

Valta Faci-Lite T8 LED Tube
For Direct Replacement of T8 Fluorescent Tube
Product Description:
- Quick and easy replacement of T8 fluorescent tube without re-wiring
- Compatible with a wide range of CCG and ECG ballasts, and AC mains
- Frosted PC and aluminum alloy housing for superior heat dissipation
- High efficiency: Up to 140lm/W
- Life span >50,000 hours
- Fool proof installation (non-destructive when ends reversed)
- Available in 3 power ratings and 3 color temperatures
- Flicker-free with instant start
- RoHS Compliant
Ideal Use Cases:
- Carparks
- Production facilities and warehouses (low rise)
- Supermarkets and shops
- Public areas such as staircases, corridors, hallways, lobbies, entrances etc.
Product Data:
| Model No | Product Name | Length | CCT | Power** | Lumens | Cap | Dimmable |
|---|---|---|---|---|---|---|---|
| 1221-20-01-61 | Valta Faci-Lite T8 LED 600 9W 840 | 600mm | 4000 K | 9 W | 1242 lm | G13 | No |
| 1221-20-01-81 | Valta Faci-Lite T8 LED 600 9W 850 | 600mm | 5000 K | 9 W | 1242 lm | G13 | No |
| 1221-20-01-A1 | Valta Faci-Lite T8 LED 600 9W 860 | 600mm | 6000 K | 9 W | 1242 lm | G13 | No |
| 1222-20-01-61 | Valta Faci-Lite T8 LED 1200 18W 840 | 1200 mm | 4000 K | 18 W | 2520 lm | G13 | No |
| 1222-20-01-81 | Valta Faci-Lite T8 LED 1200 18W 850 | 1200 mm | 5000 K | 18 W | 2520 lm | G13 | No |
| 1222-20-01-A1 | Valta Faci-Lite T8 LED 1200 18W 860 | 1200 mm | 6000 K | 18 W | 2520 lm | G13 | No |
| 1223-20-01-61 | Valta Faci-Lite T8 LED 1500 25W 840 | 1500 mm | 4000 K | 25 W | 3450 lm | G13 | No |
| 1223-20-01-81 | Valta Faci-Lite T8 LED 1500 25W 850 | 1500 mm | 5000 K | 25 W | 3450 lm | G13 | No |
| 1223-20-01-A1 | Valta Faci-Lite T8 LED 1500 25W 860 | 1500 mm | 6000 K | 25 W | 3450 lm | G13 | No |
** Actual power consumption of the LED Tube depends on the specification of the ballasts. As a rule of thumb, Valta Faci-Lite consumes about 50% of the fluorescent tube it replaces. Please check with your distributor on the actual power consumption for the ballast you intend to use with.
Additional data:
Visit www.valta.com for more product information
