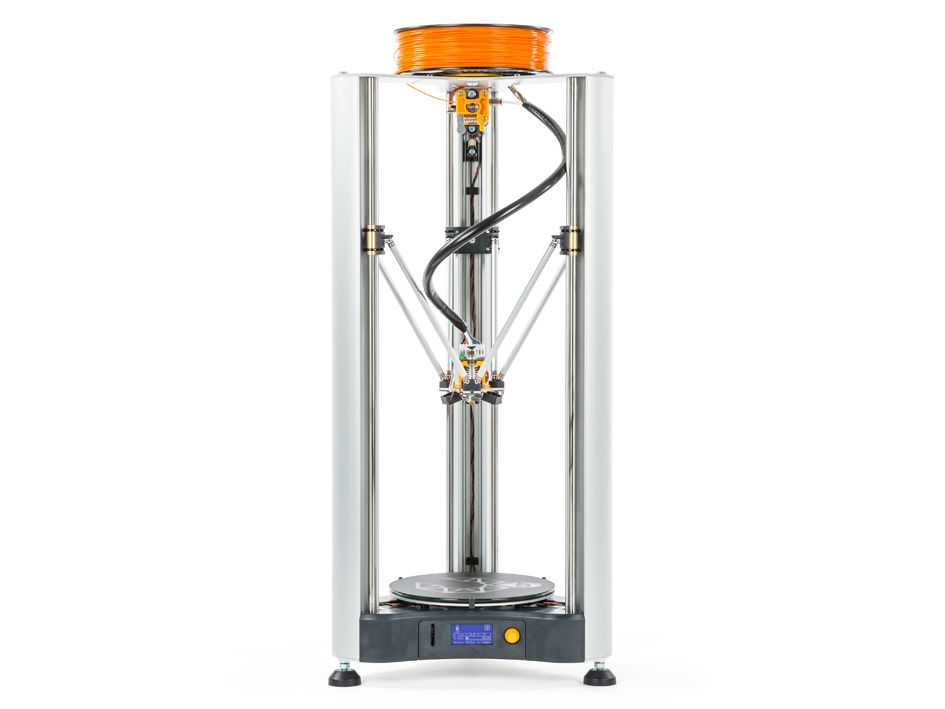

Vertex Delta 3D Printer

Production Lead Time:

7 day(s)

Model No.:

K8800

Brand:

Vertex

Colour:

Aluminum

Size:

35 x 35 x 77 cm

Products Status:

Stock

Description

Contact Supplier

Print technology: Fused Filament Fabrication (FFF - FDM)
Layer resolution: standard 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
Large build volume: 200 mm build platform diameter (0/- 5 mm), 225 mm build height (0/+75 mm) (depends on object diameter)
Print speed: 20-50 mm/s (can go up to 75 mm/s)
Travel speed: 180-200 mm/s
Build plate surface: removable layer of BuildTak (K8800-BT)
Filament diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm)
Open filament policy - prints: PLA, ABS, TPU, PET and others
Nozzle: E3D compatible
Nozzle diameter: 0.35 mm (one nozzle supplied)
Maximum nozzle operating temperature: 295°C
Bed compensation: automatic bed compensation performed by the nozzle (no manual calibration needed)
Calibration: automatic first-time set-up calibration
Couplers: backlash free magnetic effector-couplers
Advanced safety features: auto shutdown when print head detaches or temperature is incorrect (most unlikely)
Filament run out detector: automatic pause and reload when printer runs out of filament
Change filament function while printing: this means that you can print objects with multiple filaments/colours
Effective pause function: pause your print job without nozzle leakage
End stops: infrared based end stops
