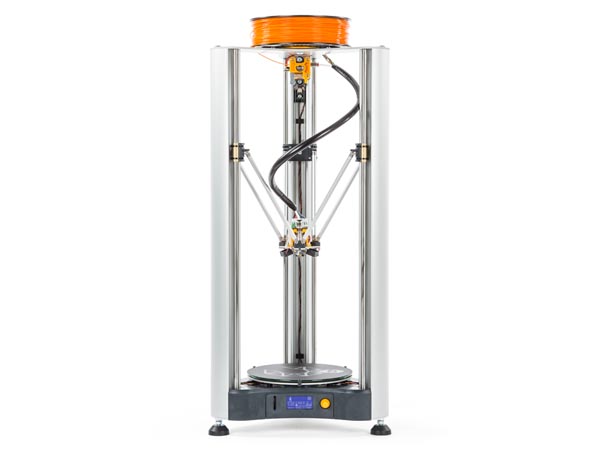

Vertex Delta 3D Printer

Model No.:

K8800

Brand:

Delta

After-Sales Service Provided:

Overseas third-party support available

Use:

Filament

Voltage (v):

220V

Warranty (Year):

Description

Contact Supplier

Print Technology: Fused Filament Fabrication (FFF - FDM)
Layer Resolution: Standard 0.1 mm (maximum: 0.2 mm - minimum: 0.05 mm)
Large Build Volume: 200 mm build platform diameter (0/- 5 mm), 225 mm build height (0/+75 mm) (depends on object diameter)
Print Speed: 20-50 mm/s (can go up to 75 mm/s)
Travel Speed: 180-200 mm/s
Build Plate Surface: Removable layer of K8800-BT: BUILDTAK 3D PRINT BED SURFACE FOR VERTEX DELTA (Ø 210 mm) (K8800-BT)
Filament Diameter: 1.75 mm (accepts all filament spools with a mounting hole = 53 mm) - open filament policy
Prints: PLA, ABS, TPU, PET and others
Nozzle: E3D compatible
Nozzle Diameter: 0.35 mm (one nozzle supplied)
Maximum Nozzle Operating Temperature: 295°C
Bed Compensation: Automatic
Bed compensation performed by the nozzle (no manual calibration needed)
Calibration: Automatic first-time set-up calibration
Couplers: Backlash free magnetic effector-couplers
Advanced Safety Features: Auto shutdown when print head detaches or temperature is incorrect (most unlikely)
Filament Run Out Detector: Automatic pause and reload when printer runs out of filament
Change filament function while printing: this means that you can print objects with multiple filaments / colours
Effective pause function: pause your print job without nozzle leakage
End Stops: Infrared based end stops
