Vertical-Angle Connector
Production Lead Time:
7 day(s)
Model No.:
CNJST F1006A
Port:
Shanghai
Minimum Order Quantity:
1,000 piece(s)
Description
Contact Supplier
Description

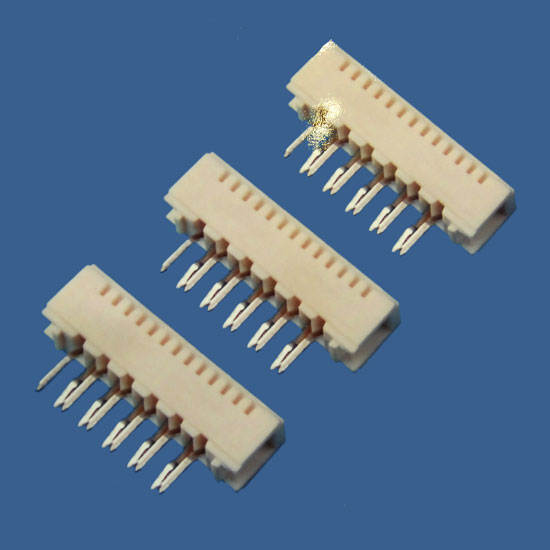

These vertical-angle connectors offer reliable connection for flat flexible cable (FFC) and flexible printed circuitry (FPC). The robust connectors offer easy actuation and secure cable retention. The reliable connectors are heat and cold resistant.
- Pitch: 1.0mm.
- Pole: 6-30.
- Current rating: 0.5A AC, DC.
- Voltage rating: 50V AC, DC.
- Temperature range: -25-85 degree Celsius.
- Contact resistant: 30m Omega Max.
- Insulation resistance: 500M omega Min.
- Withstanding voltage: 500V AC/minute.
