Vici 19999 Counts Bench Type Digital Multimeter VC8045

产品型号:

VC8045

Brand:

Vici

DC AC current:

20A

AC voltage:

750V

DC voltage:

1000V

Resistance:

20MΩ

Capacitance:

200μF

Frequency:

200kHz

Diode/hFE/Continuity:

√

Description

Contact Supplier

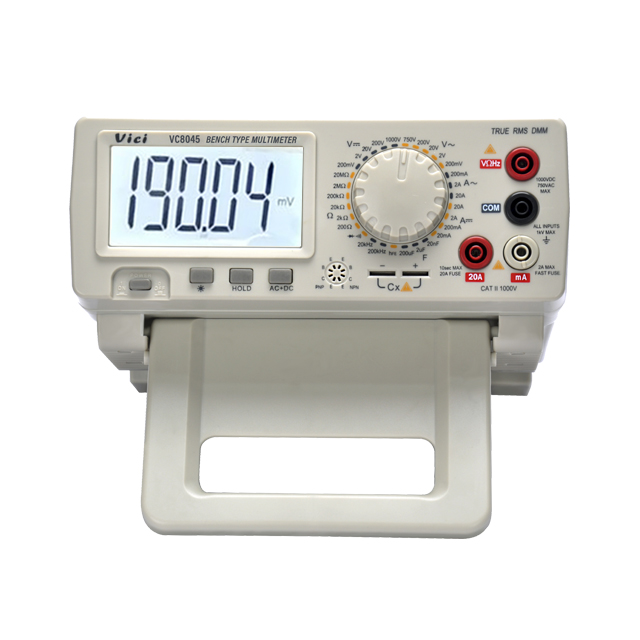

VC8045 4 ¹/₂ Bench Type Digital Multimeter

Features:

1. 4 1/2 digit large LCD display with backlight;

2.With the DCV、ACV、DCA、ACA、Ω、CAP、Hz、hFE、diode and continuity test function;

3. Max. voltage measuring: DC 1000Vor AC value, resolution:10uV;

4. Max. current measuring: 20A, polarity automatic switch，data hold，backlight;

5. AC measuring adopt high accuracy true RMS, with bandwidth and AC+DC measuring.

Technical Data:

Basic function	Range	Basic accuracy
DCV	200mV/2V/20V/200V/1000V	±(0.05%+1)
ACV	200mV/2V/20V/200V/750V	±(0.8%+80)
DCA	20mA/200mA/2A/20A	±(0.35%+10)
ACA	200mA/2A/20A	±(0.8%+80)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	±(0.1%+5)
Frequency	20kHz/200kHz	±(1.0%+20)
Capacitance	20nF/2uF/200uF	±(3.5%+20)

Special Function:

Model	VC8045
Diode test	√
hFE test	√
True RMS	√
Continuity alarm	√
Overload protect	√
Input impedance	10MΩ
Sampling rate	3times/s
AC Frequency response	40Hz-50kHz
Operation way	Manual range
Max. display	19999
Power supply	AC 220V/110V 50Hz/60Hz

General Characteristic：

Color	Body: beige
Weight	1.5kg
Meter size	245×220×82mm
Standard accessory	Test leads, power cord, manual
Packing	Gift box
Standard quantity per CTN	8pcs
Carton size	603164CM
Standard G.W. per CTN	18.3kg
