Vici AC-3 12V to 1000V AC Voltage Detector Pen with LED indication signal strength

Model No.:

AC-3

Size:

165(L) x 40(W) x 20(D) mm

Weight:

58g

Safety level:

CAT. III 1000V

Range:

12V~1000V (available to select high/low sentivity)

Description

Contact Supplier

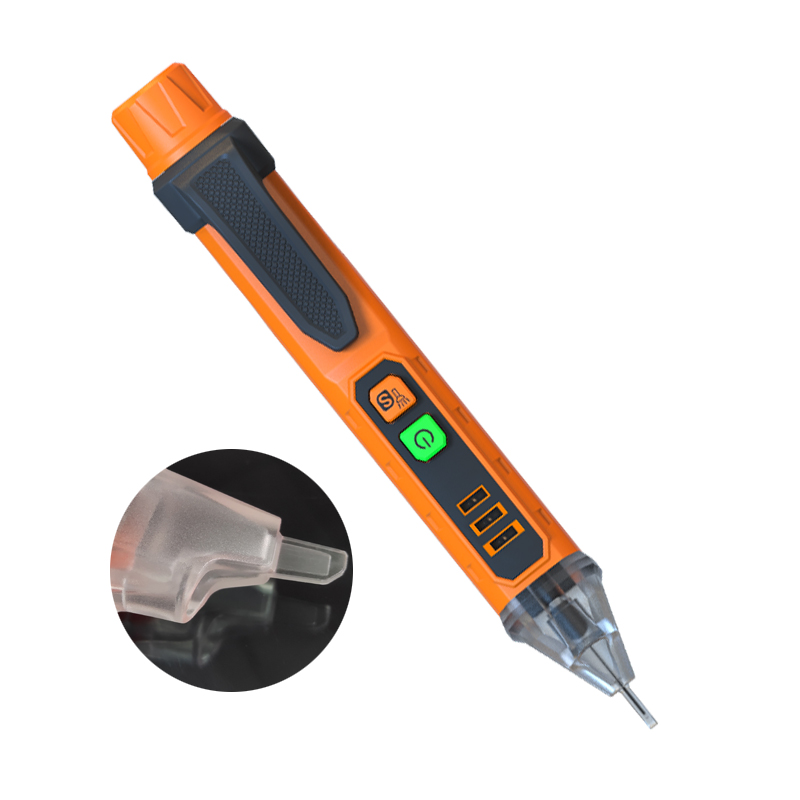

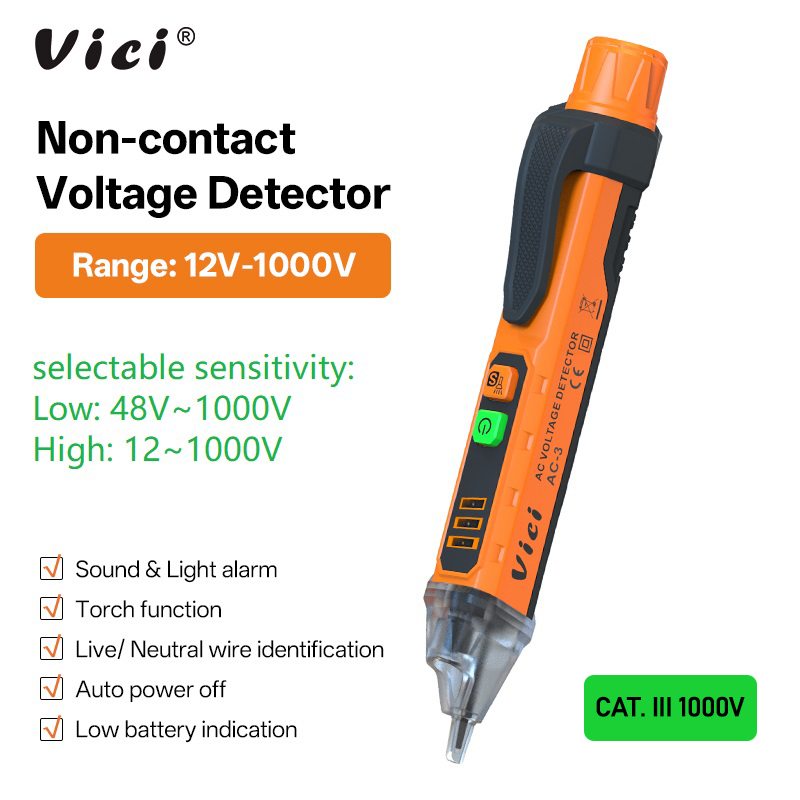

AC-3 Non Contact AC Voltage Detector

Feature:

Specification:

AC voltage range	The default range is 48~1000V; Press the “S” key to switch to 12~1000V
Frequency	50Hz/60Hz
Alarm type	Sound & Light alarm
Torch function	White LED torch light
Auto power off	Auto shut down when no operation for 5 minutes & no voltage signal is detected
Low battery indication	3-times light flashes and once beeps sound when the voltage is＜2.6V
Zero/Fire line recognition	According to the signal strength, the fire wire is with strongest signal
NCV sensitivity	3 sensitivity indicators
NCV sensitivity indication method	Sound & Light alarm function: with different decibel alarm sounds, red/orange LED light shows the strength of the signal
Working temperature	0 ~ 40℃
Storing temperature	-10~50℃
Safety level	CAT.III 1000V / CAT.IV 600V
Power supply	2* 1.5V AAA battery

General Info:

Tester color	Orange + Gray
Tester weight	58g
Tester size	165(L) x 40(W) x 20(D) mm
Standard packing including	AC-3 voltage tester, blister-card, battery
Individual packing style	Blister-card
Master packing	200pcs/carton
G.W. per carton	18kg
Carton size	65.5x29.0x45.5cm
