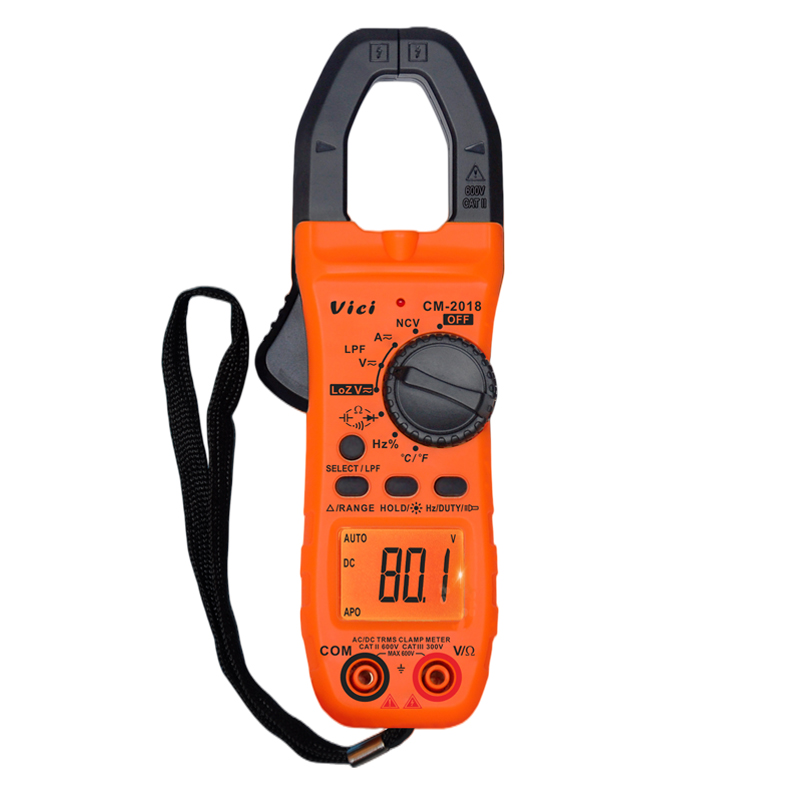

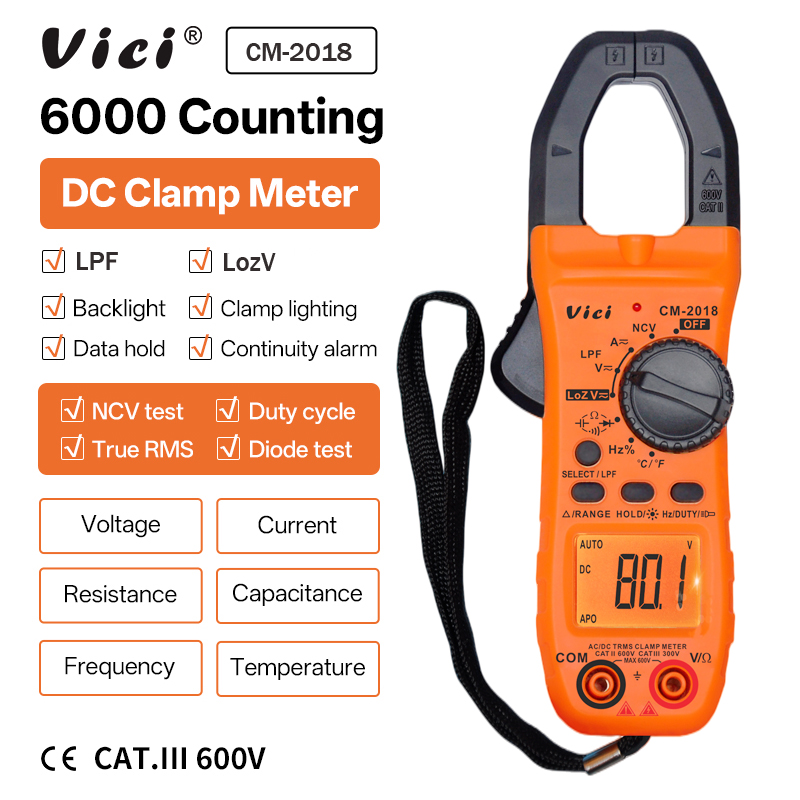

Vici CM-2018 Loz LPF AC DC 800A Clamp Meter with Orange display alarm and Live test function
Model No.:
CM-2018
Size:
185*65*32mm
Weight:
200g
Safety level:
CAT. III 600V
Max display:
6000 digits
Voltage:
600V
Current:
800A
Capacitance:
60mF
Resistance:
60MΩ
Frequency:
10MHz
Temperature:
1000℃， 1832℉
Description
Contact Supplier
Description
CM-2018 AC/DC 3 5/6 Digital Clamp Multimeter
Features:
1. Clamp opens 28mm
2. AC DC T-RMS, NCV, LPF（VFC）, LoZ V function
3. Clamp light, Backlight, Flash light
4. Max. 6000 digits large LCD display
5. CE standard design, improves the safety of the test
6. Full function protection, strong anti-interferential performance
7. Duty cycle test, REL test, data hold, Auto power off function
Technical Data:
Basic function | Range | Accuracy |
DCV | 600mV/6V/60V/600V | ±(0.5%+5) |
LoZ 0V~600V | ±(2.0%+10) | |
ACV | 6V/60V/600V | ±(0.8%+5) |
LPF 0V ~ 600V | ±(4.0%+5) | |
LoZ 0V ~ 600V | ±(2.0%+10) | |
DCA | 60A/600A/800A | ±(1.5%+5) |
ACA | 60A/600A/800A | ±(1.5%+5) |
Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±(0.8%+1) |
Capacitance | 6nF/60nF/600nF/6uF/60uF/600uF/6MF/60MF | ±(2.5%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
Temperature | (-40 to 1000 )℃, (-40 to 1832 ) ℉ | ±(1.0%+5) |
Special Function:
Model | CM-2018 |
NCV test | √ (clamp & red test lead detecting) |
True RMS test | √ |
LPF (VFC) function | √ |
LoZ function | √ |
Low battery indicator | Approx. less than 2.6 V |
Data hold function | √ |
Auto power off | About 15 minutes |
Diode test | √ |
Continuity test | Less than 50Ω |
Duty-cycle test | √ |
REL test | √ |
Clamp light function | √ |
Backlight display | √ |
Orange backlight display for high volt | √ |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40-2kHz |
Operation method | Auto or manual range |
Max display | 6000 |
Clamp opens | 28mm |
Battery | 3V (2*AAA battery) |
Power consumption | Quiescent current approx. 2mA |
General Characteristic：
Meter color | Orange and Black |
Meter weight | About 200g (including battery) |
Meter size | 185*65*32mm |
Standard accessory | Test leads, battery, manual, temperature probe, carrying bag |
Standard packing | Gift box |
Carton size | 41.5*28*46.5CM |
Standard QTY per carton | 40pcs |
G.W per carton | 15kg |
Note: for the NCV detecting function, this clamp meter is not only can detect the NCV by clamp, but also can be directly touched by the red stylus probe to detect cable that could not be reached by the clamp.
