Vici CM-3000 AC Smart Clamp Meters with Full Large Colorful 6000 Digits Display
US $14.88 - US $27.56
Application:
electric basic measurements
Brand:
Vici
Model No.:
CM-3000
Customised:
Yes
Size:
185*65*32mm
Weight:
200g (battery included)
Description
Contact Supplier
Description

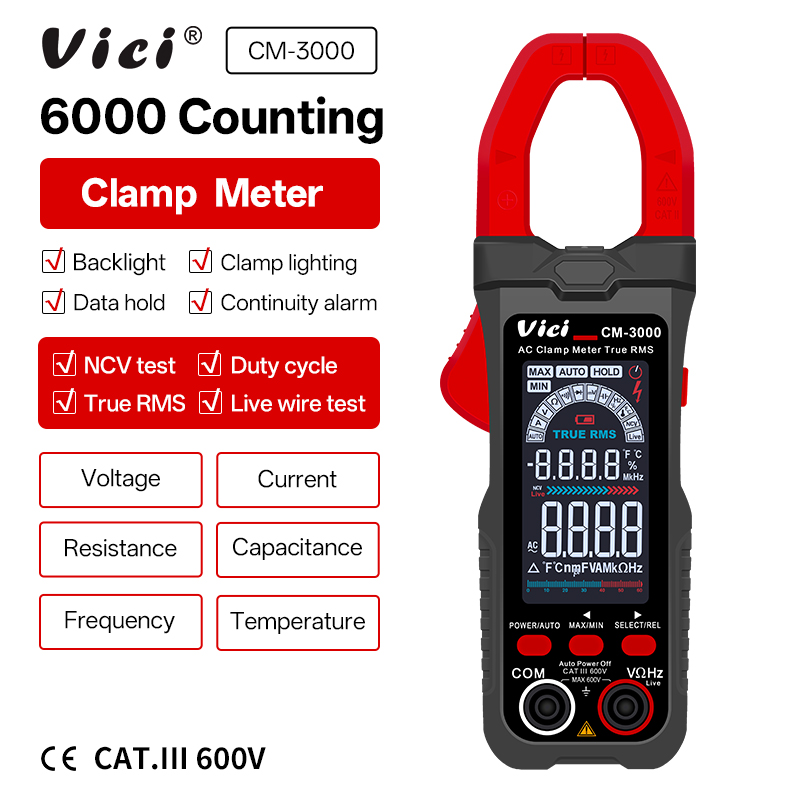

Vici CM-3000 Smart AC 600V 800A Clamp Meter with Full Large Colorful LCD
Features:
1. Auto identification smart;
2. Large colorful LCD;
3. Max. clamp open28mm;
4. Clamp light, Backlight, Flash light;
5. CE standard design, improves the safety of the test;
6. Full function protection, strong anti-interferential performance;
7. Duty cycle test, REL test, NCV, TRMS test, data hold, APO function.
Technical Data:
Basic function | Range | Accuracy |
DCV | 600mV/6V/60V/600V | ±(0.5%+5) |
ACV | 600mV/6V/60V/600V | ±(0.8%+5) |
ACA | 60A/600A/800A | ±(1.5%+5) |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+2) |
Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±(2.5%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
Temperature | (-40 to 1000 )℃, (-40 to 1832 ) ℉ | ±(1.0%+5) |
Special Function:
Model | CM-3000/CM-3002 |
Max display | 6000 |
NCV | √ |
TRMS test | √ |
Live test | √ |
Continuity test | Less than 50Ω |
Low battery indicator Low battery indicator | Approx. less than 2.6 V |
Data hold | √ |
Auto power off | About 15 minutes |
Diode test | √ |
Function protection | √ |
Clamp light | √ |
Backlight display | √ |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz to 2000Hz |
Operation method | Auto range |
Clamp opens | 28mm |
Battery | 4.5V (3*AAA battery) |
General Characteristic：
Meter color | Red and Black |
Meter weight | About 200g (including battery) |
Meter size | |
Standard accessory | Test leads, battery, manual, TP01 temperature probes |
Standard packing | Gift box |
Carton size | 41.5×28×47 CM |
Standard QTY per carton | 40pcs |
G.W per carton | 15KG |
