Vici Capacitance Resistance Inductance Measurement LCR Meter DM4070

Production Lead Time:

30 day(s)

Shipping Method:

by sea/land/air/express

Brand:

VICI

是否可定制:

Yes

Operating Temperature:

0～40℃

显示方式:

2000 digits

Description

Contact Supplier

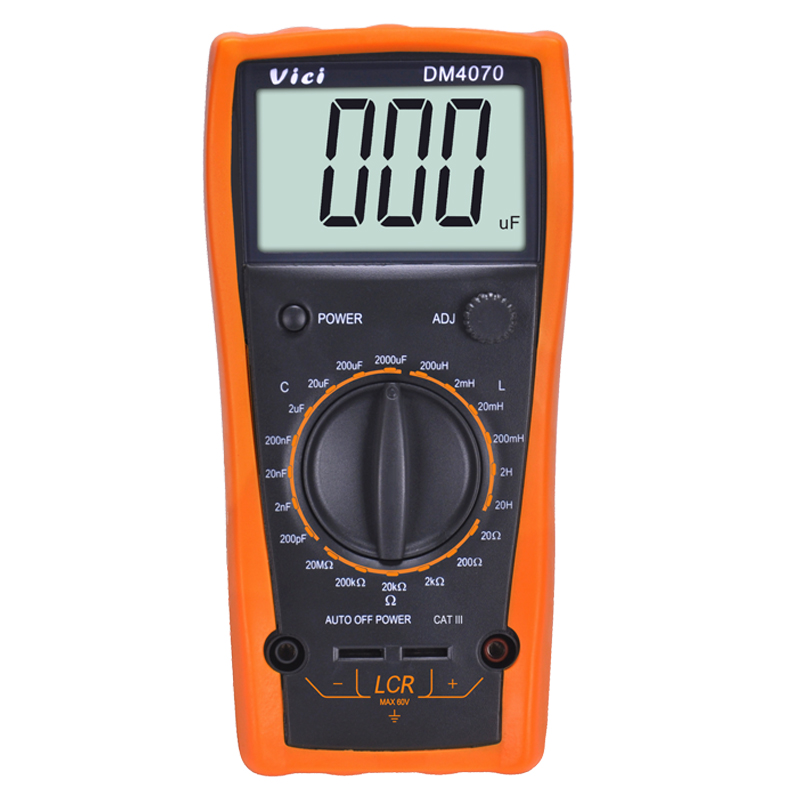

DM4070 Digital 3 1/2 LCR Mete

Test your home’s wiring and repair an electric appliance with this reliable and easy-to-operate multimeter. Coming in a compact and sturdy design, this multimeter is equipped with a large marked knob and a bright display screen, so it ensures effortless operation and an easy read. Offering a balance of high accuracy and easy control, this all-round multimeter is ideal for home use.

Features:

1. New type holster, streamline design.

2. Large LCD makes the reading clearly.

3. Strong antimagnetic and anti-jamming performance.

4. Full protect function, capacitor with the function of self discharge.

5. Unit symbol display, easy to operate.

6. CE certified, OEM available.

Technical Data:

Basic function	Range	Accuracy
Capacitance	200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF	±(2.0%+5)
Inductance	200uH/2mH/20mH/200mH/2H/20H	±(2.0%+5)
Resistance	20Ω/200Ω/2kΩ/20kΩ/200kΩ/20MΩ	±(0.8%+2)

Special Function:

Model	DM4070
Low battery indication	Approx. less than 7.5V
Capacitor discharge protection	√
Auto power off	It will power down about 30 minutes if no any measure.
Function protection	√
Anti-shock protection	√
Sampling rate	3times/s
Operation way	Manual range
Max. display	1999
LCD size	65×41mm
Battery	9V (6F22)
Power consumption	Quiescent current approx. 6mA

General Characteristic:

Color	Orangeand Grey
Weight	290g(including battery)
Meter size	185×93×35mm
Standard accessory	Test leads, battery, manual
Packing	Gift box
Standard packing per carton	30pcs
Carton size	43.529.540.5CM
Standard G.W per carton	16kg
