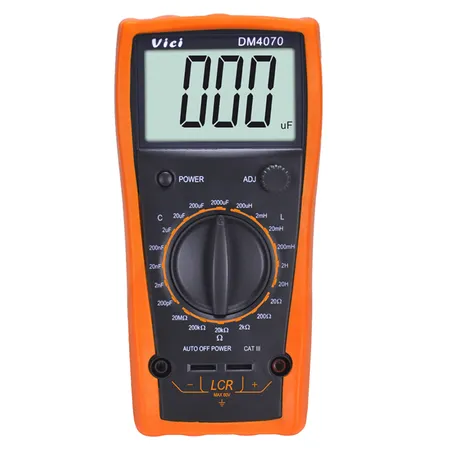

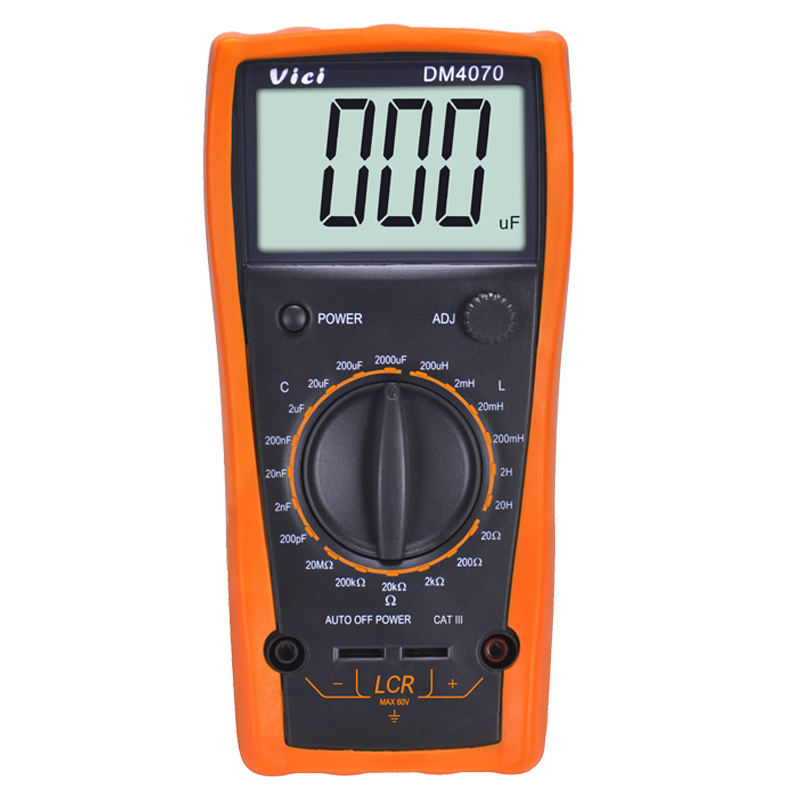

Vici DM4070 Capacitance Resistance Inductance LCR Meter
Model No.:
DM4070
Size:
185×93×35mm
Weight:
290g
Safety level:
CAT. II
Max display:
2000 digits
Capacitance:
0.1pF~2000uF
Inductance:
0.1uH～20H
Resistance:
0.01Ω～20MΩ
Description
Contact Supplier
Description
DM4070 LCR Meter
Features:
1. New type holster, streamline design.
2. Large LCD makes the reading clearly.
3. Strong antimagnetic and anti-jamming performance.
4. Full protect function, capacitor with the function of self discharge.
5. Unit symbol display, easy to operate.
6. CE certified, OEM available.
Technical Data:
Basic function | Range | Accuracy |
Capacitance | 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF | ±(2.0%+5) |
Inductance | 200uH/2mH/20mH/200mH/2H/20H | ±(2.0%+5) |
Resistance | 20Ω/200Ω/2kΩ/20kΩ/200kΩ/20MΩ | ±(0.8%+2) |
Special Function:
Model | DM4070 |
Low battery indication | Approx. less than 7.5V |
Capacitor discharge protection | √ |
Auto power off | It will power down about 30 minutes if no any measure. |
Function protection | √ |
Anti-shock protection | √ |
Sampling rate | 3times/s |
Operation way | Manual range |
Max. display | 1999 |
LCD size | 65×41mm |
Battery | 9V (6F22) |
Power consumption | Quiescent current approx. 6mA |
General Characteristic:
Color | Orange and Grey |
Weight | 290g(including battery) |
Meter size | 185×93×35mm |
Standard accessory | Test leads, battery, manual |
Packing | Gift box |
Standard packing per carton | 30pcs |
Carton size | 43.5*29.5*40.5CM |
Standard G.W per carton | 16kg |
