Vici DM6803A+ Digital Thermocouples Thermometer Alarm Function

Production Lead Time:

5 - 15 day(s)

Model No.:

DM6803A+

品牌名称:

Vici

Colour:

Orange, Grey

Size:

130 x 95 x 28mm

Port:

Shenzhen

Minimum Order Quantity:

60 pieces

Type:

Temperature Sensor

Customised:

Yes

Description

Contact Supplier

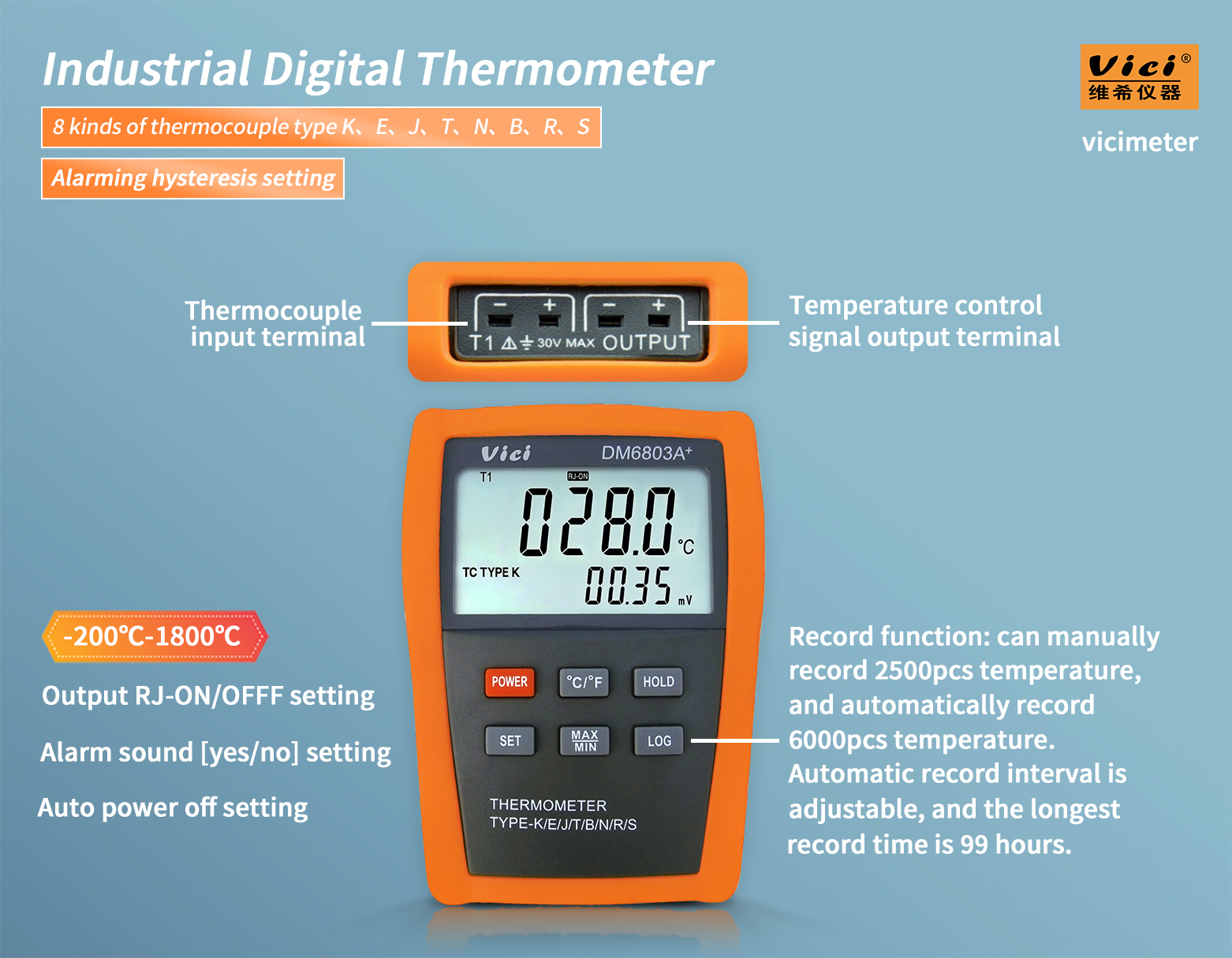

Vici DM6803A+ Digital Thermocouples Thermometer Alarm Function

Features:

1.Temperature measuring (accuracy±0.3%) and alarming output function；

2.Support K、E、J、T、N、B、R、S thermocouples；

3.It may set cold temperature automatic saving;

4.℃ and ℉ display；

5.Dual display：display max .min and relative mV value of input temperature；

6.The beeper could be set to sound if the set value of alarm is higher than or is lower than the set point of

Alarm and could be set alarming loop difference as well; Besides, the alarming jack can also be set to close

or open, sound or in silence when the meter alarms; the alarming jack adopts photocoupler isolated output.

7.Record function：Support manual record 2500pcs temperature, automatic record 6000pcs temperature，

Automatic record interval is adjusted，the longest continuity record time is 99 hours.

Technical Data:

Thermocouple type	Input range	Resolution	Accuracy	Remark
R	-40～1760℃	1℃	-40～500℃: ±(0.5%+2℃) 500℃～1760℃: ±(0.4%+2℃)	Input resistance 1GΩ adopts ITS-90 thermometric scale
S	-20～1760℃	1℃	-40～500℃: ±(0.5%+2℃) 500℃～1760℃: ±(0.4%+2℃)
B	400～1800℃	1℃	400℃～800℃: ±(0.5%+2℃) 800℃～1000℃: ±(0.4%+2℃) 1000℃～1800℃:±(0.3%+2℃)
E	-200～1000℃	0.1℃	-200℃～0℃: ±(0.3%+1℃) 0℃～500℃: ±(0.3%+2℃)
K	-200～1370℃	0.1℃	-200～0℃: ±(0.3%+2℃) 0℃～800℃: ±(0.3%+1℃) 800℃～1370℃: ±(0.5%+2℃)
J	-200～1200℃	0.1℃	-200～0℃: ±(0.3%+1℃) 0℃～1200℃: ±(0.3%+2℃)
T	-200～400℃	1℃	-200～0℃: ±(0.3%+1℃) 0℃～400℃: ±(0.3%+2℃)
N	-200～1300℃	0.1℃	-200～0℃: ±(0.5%+2℃) 0℃～1300℃: ±(0.3%+2℃)
