Vici VC108PV Solar Power MPPT Meter
品牌:
Vici
型号:
VC108PV
是否可定制:
是
Description
Contact Supplier
Description

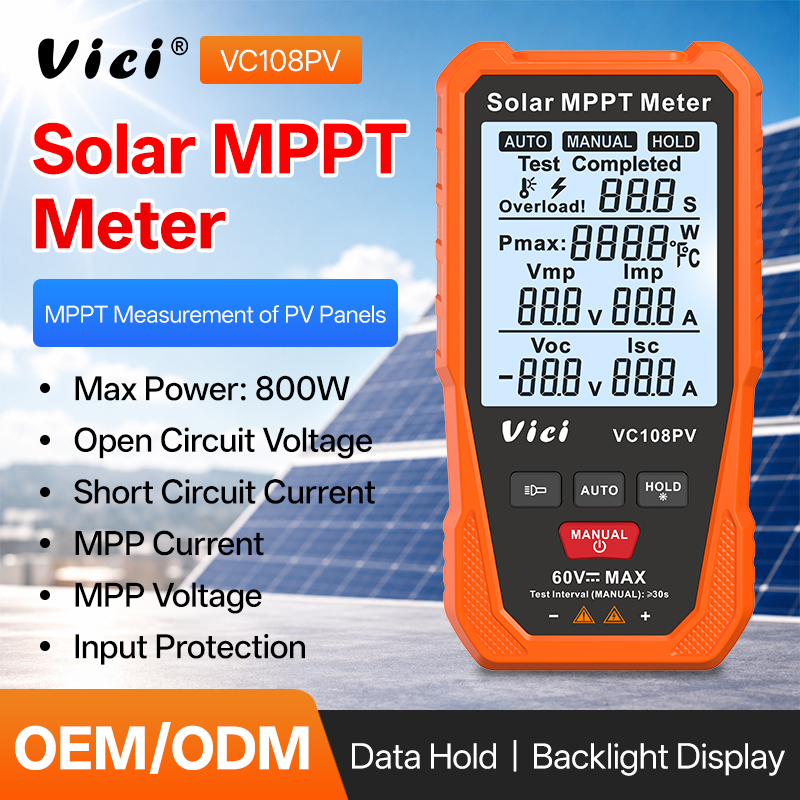

Vici VC108PV Solar MPPT Meter
Features:
- The C4 Connector wench for quick, effortless testing in the field.
- No need battery, powered by solar panel.
- Measures max power (Pmax), peak power voltage (Vmp),peak power current (lmp), open-circuit voltage (Voc) and short-circuit current (lsc).
Technical Data:
Basic function | Range | Accuracy |
Pmax | 5~800W | ±(1.5%+5) |
Imp | 0~35A | ±(1.5%+5) |
Vmp | 12~60V | ±(1.5%+5) |
Voc | 12~60V | ±(1.5%+5) |
Isc | 0~35A | ±(1.5%+5) |
General Characteristic:
Model | VC108PV |
Measure way | Auto/Manual range |
Reverse polarity connect protection | √ |
Over voltage protection | √ |
Over current protection | √ |
Over temperature protection | √ |
Over power protection | √ |
Manual MPPT test | √ |
Data hold | √ |
Torch Function | √ |
Backlight display | √ |
Sound Alarm | √ |
LCD display size | 50×65mm |
Power supply | (battery-free) solar panel |
Category | CAT.I 60V |
