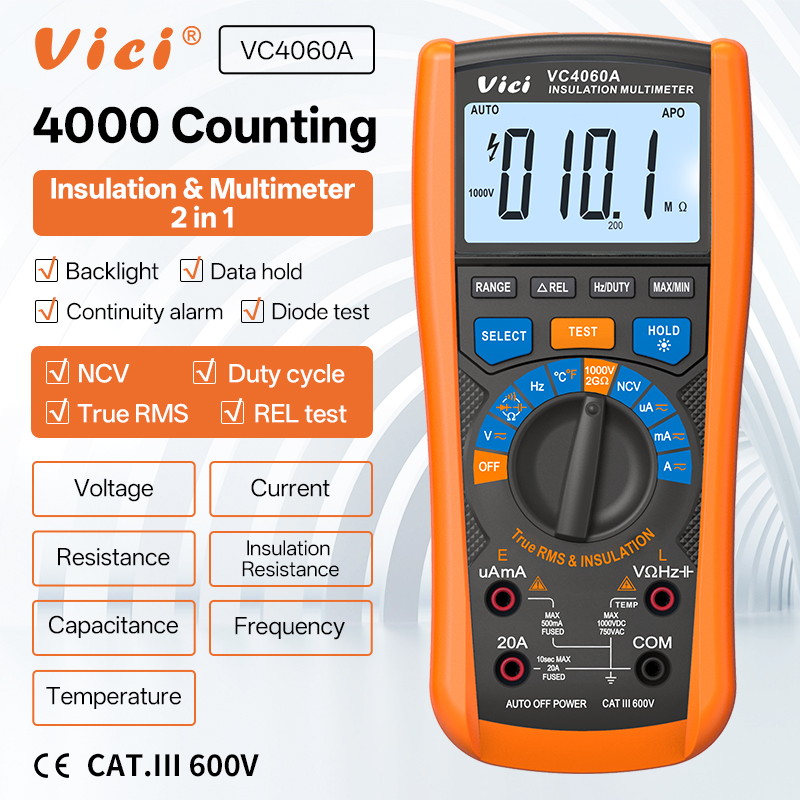

Vici VC4060A New Energy Motor Cable Checking Insulation Multimeter
Application:
new energy vehicle repair, motor cable, electronic equipment, electric power installation, etc.
Model No.:
VC4060A
Size:
200*92*50mm
Weight:
480g
Safety level:
CAT. III 600V
Max display:
4000 digits
Voltage:
AC 750V, DC 1000V
Current:
AC DC 20A
Capacitance:
40mF
Resistance:
40MΩ
Frequency:
10MHz
Temperature:
1000℃， 1832℉
Insulation:
1000V/2000MΩ
Description
Contact Supplier
Description

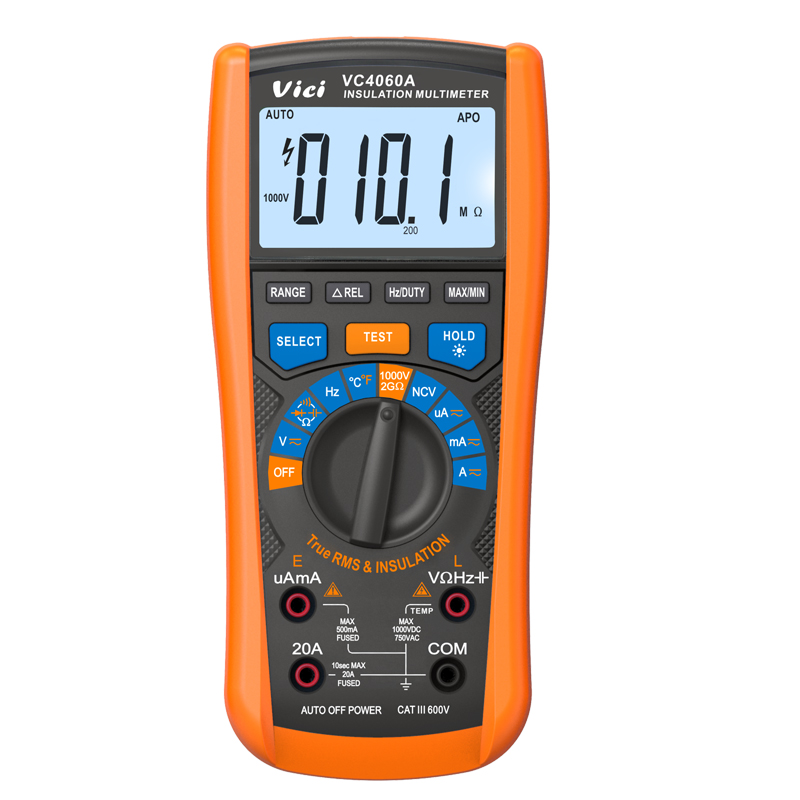

VC4060A Insulation Multimeter
Features:
1. New type holster, streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance, Full function protection;
4. Auto power off when there is no measurement in 15 minutes;
5. Unit symbol display, easy to read; backlight display;
6. Insulation Resistance Test, True RMS, non-contact voltage detection, frequency/duty cycle, and data hold function.
Basic function | Range | Basic accuracy |
DCV | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
ACV | 4V/40V/400V/750V | ±(0.8%+10) |
DCA | 400uA/4000uA/40mA/400mA/4A/20A | ±(1.0%+5) |
ACA | 400uA/4000uA/40mA/400mA/4A/20A | ±(1.5%+5) |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) |
Capacitance | 40nF/400nF/4uF/40uF/400uF/4mF/40mF | ±(2.5%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
Insulation | 2000MΩ for 1000V | ±(4.0%+2) |
Temperature | -40℃～1000℃/-40℉～1832℉ | ±(1.0%+5) |
Special function:
Max. display | 4000 |
Safety level | CAT.III 600V |
True RMS | √ |
NCV | √ |
Function Protect | √ |
Diode test | √ |
Continuity test | Warning sound when less than 50Ω |
Duty cycle measuring | √ |
Data hold | √ |
Backlight display | √ |
Max-Min | MAX., MIN. value and difference value between MAX and MIN |
Auto power off | Approx.15minutes |
Low battery indication | Approx. less than 7.6V |
Input impendence | 10MΩ |
Sampling rate | 3times/s |
AC frequency response | 40Hz-2kHz |
Operation way | Manual or auto range |
LCD size | 65×40mm |
Power | 6x1.5V AA battery |
Power dissipation | Quiescent current approx. 6mA |
General Info:
Color | Orange holster and Grey device |
Weight | 480g (including battery) |
Meter size | 200x92x50mm |
Standard accessory | Test leads, crocodile clips, battery, manual, TP01 temperature probe |
Packing | Gift box |
Quantity per carton | 20pcs |
Carton size | 46.5*31.5*29cm |
GW per carton | 15kg |
