Vici VC833A 1999 Digits Most Cheap Mini Digital Multimeter | Hand Tools | Industrial Machinery, Parts & Raw Materials

Vicimeter Technology (Hong Kong) Co., Ltd.

Enquire

Compare & Bulk Enquire

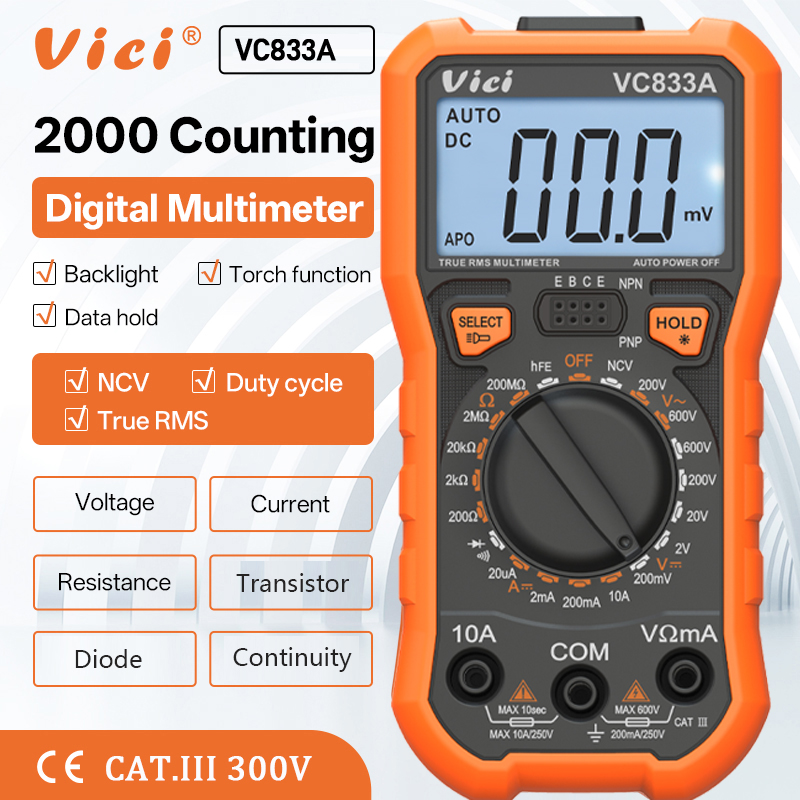

Vici VC833A 1999 Digits Most Cheap Mini Digital Multimeter

US $5.59 - US $8.86

Production Lead Time:

7 day(s)

Shipping Method:

Express transportation

Mode:

VC833A

NCV:

Yes

Data hold:

Yes

True RMS:

Yes

Function protection:

Yes

Backlight display:

Yes

Diode test:

0V~2V, it displays “OL” if over 2V

hFE test:

0~2000

Continuity alarm:

Less than 50Ω, it displays “OL” if over 200Ω

Low battery indicator:

Approx. less than 2.4 V

Auto power off:

About 15 minutes

Input impedance:

10MΩ

Sampling rate:

3 times/s

AC frequency response:

40Hz-2kHz

Operation method:

Manual range

Max. display:

2000

LCD size:

61x28mm

Battery:

3V (1.5V AAA×2)

Power consumption:

Quiescent current about 2mA

Description

Contact Supplier

Vici VC833A 1999 Digits Most Cheap Mini Digital Multimeter

Features:

Streamlined design, comfortable handle;

2000 digits LCD display with Unit symbol;

Full function protection; Torch-light function;

True RMS, NCV, Backlight and Data hold function;

Auto power off when no measurement in 15 minutes;

Strong anti-magnetic & anti-interferential performance.

Technical Data:

Basic function	Range	Basic Accuracy
DCV	200mV/2V/20V/200V/600V	±(0.5%+4)
ACV	200V/600V	±(0.8%+6)
DCA	20uA/2mA/200mA/10A	±(1.0%+5)
Resistance	200Ω/2kΩ/20kΩ/2MΩ/200MΩ	±(0.8%+1)

Special Function:

Model	VC833A
Safety Level	CAT III 300V
Data hold	√
True RMS / NCV	√
Function protection	√
Backlight display	√
Torch lighting function	√
Diode test	0V~2V, it displays “OL” if over 2V
hFE test	0~2000
Continuity alarm	Less than 50Ω, it displays “OL” if over 200Ω
Low battery indicator	Approx. less than 2.4 V
Auto power off	About 15 minutes
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	40Hz-2kHz
Operation method	Manual range
Max. display	2000
LCD size	61x28mm
Battery	3V (1.5V AAA×2)
Power consumption	Quiescent current about 2mA

General characteristic:

Meter color	Orange and Grey
Meter weight	195g（including battery）
Meter size	140×72×37mm
Standard accessory	Test leads, battery, manual
Standard packing	Gift box
Quantity per carton	40pcs
GW per carton	12.5kg
Carton size	32.5×25×47.5cm
