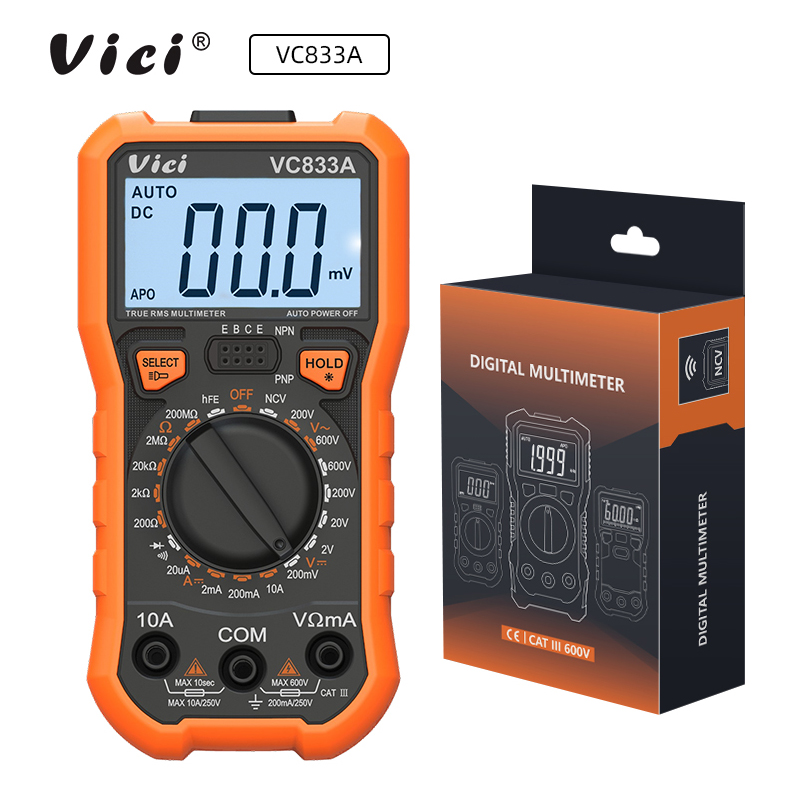

Vici VC833A Ampere Voltage Resistance Digital Multimeter Tester with Flashlight function
Model No.:
VC833A
Size:
140*72*37mm
Weight:
195g
Safety level:
CAT. III 300V
Max display:
2000 digits
Voltage:
AC DC 600V
Current:
DC 10A
Resistance:
20MΩ
Description
Contact Supplier
Description
VC833A 3 1/2 Manual Range Digital Multimeter
Features
1. New type holster, streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance;
4. Auto power off when there is no measurement in 15 minutes;
5. Full function protection;
6. Unit symbol display, easy to read;
7. Non-contact voltage detect (NCV) function, data hold;
8. Backlight display; Flashlight torch function.
Technical Data
Basic function | Range | Basic Accuracy |
DCV | 200mV/2V/20V/200V/600V | ±(0.5%+4) |
ACV | 200V/600V | ±(0.8%+6) |
DCA | 20uA/2mA/200mA/10A | ±(1.0%+5) |
Resistance | 200Ω/2kΩ/20kΩ/2MΩ/200MΩ | ±(0.8%+1) |
Special Function
Model | VC833A |
NCV | √ |
Data hold | √ |
True RMS | √ |
Flashlight torch function | √ |
Backlight display | √ |
Diode test | 0V~2V, it displays “OL” if over 2V |
hFE test | 0~2000 |
Continuity alarm | Less than 50Ω, it displays “OL” if over 200Ω |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual range |
Max. display | 2000 |
LCD size | 61x28mm |
Battery | 3V (1.5V AAA×2) |
Power consumption | Quiescent current about 2mA |
General characteristic
Meter color | Orange and Grey |
Meter weight | 195g（including battery） |
Meter size | 140×72×37mm |
Standard accessory | Test leads, battery, manual |
Standard packing | Gift box |
Quantity per carton | 40pcs |
GW per carton | 12.5kg |
Carton size | 32.5×25×47.5cm |
