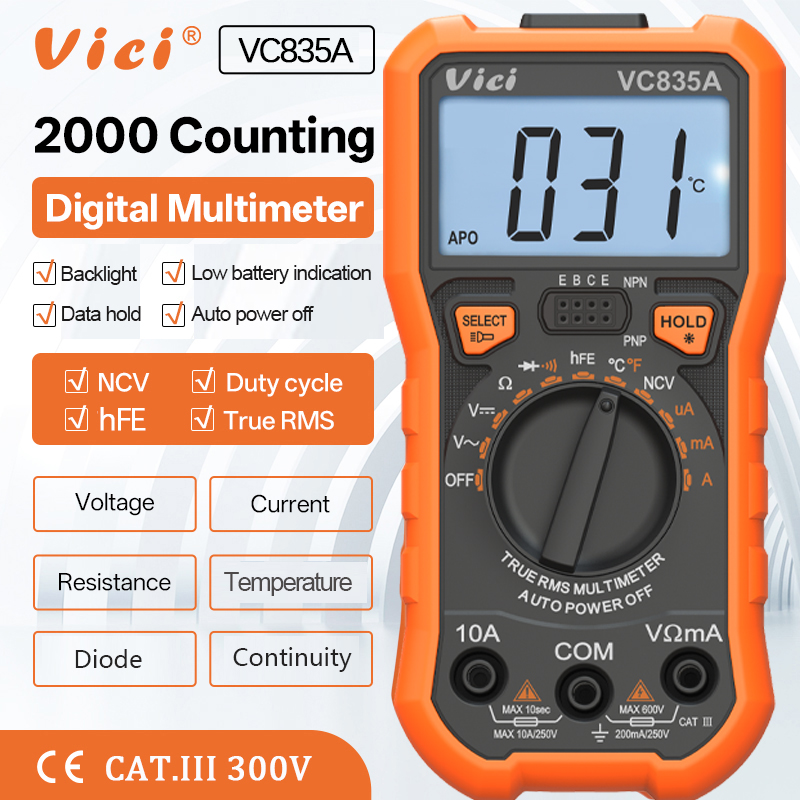

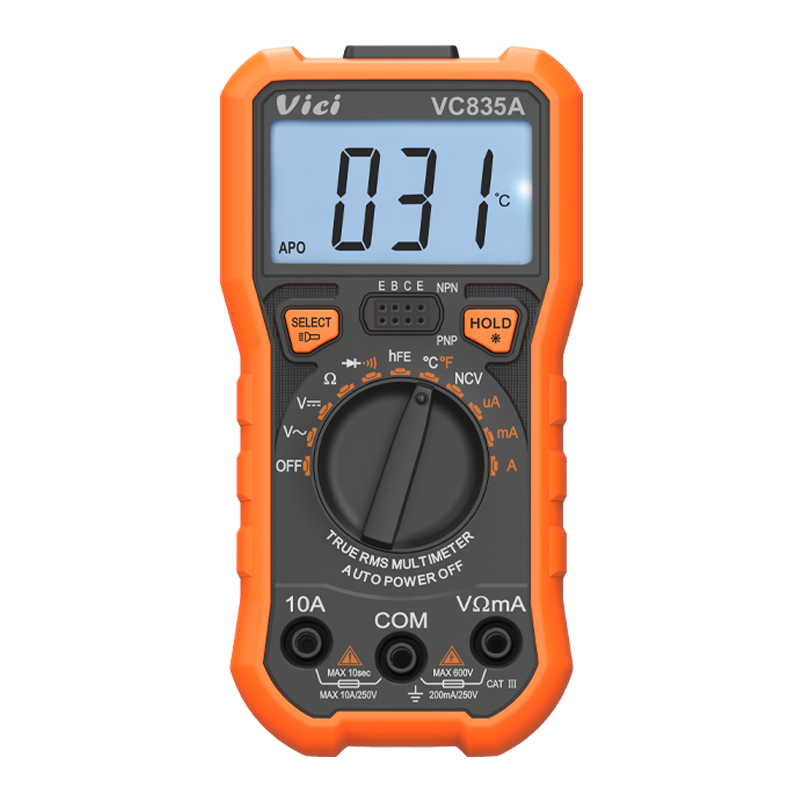

Vici VC835A CAT III 300V True RMS NCV Digital Multimeter

Model No.:

VC835A

Size:

140*72*37mm

Weight:

195g

Safety level:

CAT. III 300V

Max display:

2000 digits

Voltage:

AC DC 600V

Current:

AC DC 10A

Resistance:

20MΩ

Temperature:

1000℃， 1832℉

Description

Contact Supplier

VC835A 3 1/2 Auto Range Digital Multimeter

Features:

1. Streamlined design comfortable holster;

2.Large LCD display makes reading clear;

3.Strong antimagnetic and anti-interferential performance;

4.Auto power off when there is no measurement in 15 minutes;

5.Full function protection;

6.Unit symbol display, easy to read;

7.True RMS, non-contact voltage detecting (NCV) and data hold function;

8.Lighting function, backlight display.

Technical Data:

Special Function:

Model	VC835A
NCV	√
Data hold	√
True RMS	√
Function protection	√
Torch function	√
Backlight display	√
Diode test	0V~2V, it displays “OL” if over 2V
Continuity alarm	Less than 50Ω, it displays “OL” if over 10Ω
hFE Test	0~2000
Low battery indicator	Approx. less than 2.4 V
Auto power off	About 15 minutes
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	40Hz-2kHz
Operation method	Manual or Auto range
Max. display	2000
LCD size	61*28mm
Battery	3V (1.5V AAA*2)
Power consumption	Quiescent current about 2mA
General info:
Meter color	Gray device + Orange holster
Meter weight	195g (including battery)
Meter size	1407237mm
Standard accessory	Test leads, battery, manual, TP01 temperature probe
Standard packing	Gift box
Quantity per carton	40pcs
GW per carton	13kg
Carton size	32.5x25x47.5cm
