Vici VC836 3 5/6 Digits Auto Smart Multimeter
产品型号:
VC836
品牌名称:
Vici
颜色:
Grey device with orange protect cover
Size:
140x72x37mm
Customised:
Yes
Description
Contact Supplier
Description

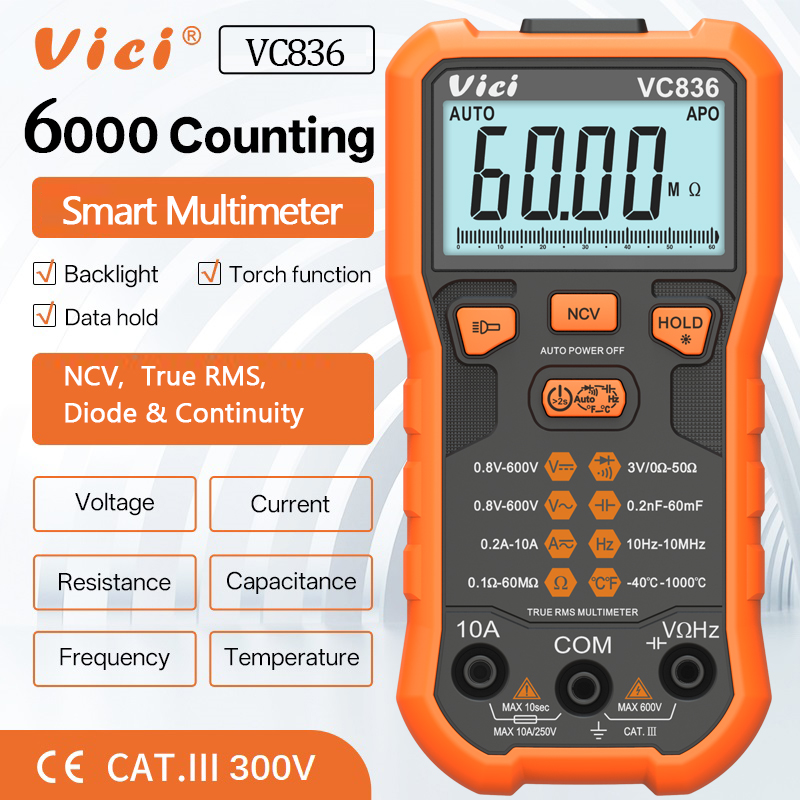

Vici VC836 3 5/6 Digits Auto Smart Multimeter
Features:
1. ONE-BUTTON testing; Auto identify testing range;
2. Large LCD with Unit symbol & Analog bar display;
3. Data hold, Lighting, Backlight display function;
4. Strong antimagnetic & Anti-interferential performance;
5. Full function protection and Auto power off function;
6. True RMS test, NCV (non contact voltage) test function;
7. DCA, ACV, DCA, ACA, OHM, Capacitance, Frequency, Diode & Continuity tests.
Basic function | Range | Basic Accuracy |
DCV | 6V/60V/600V | ±(0.5%+4) |
ACV | 6V/ 60V/600V | ±(0.8%+6) |
DCA | 10A | ±(2.0%+5) |
ACA | 10A | ±(2.0%+10) |
Resistance | 600Ω/6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/60MΩ | ±(0.8%+5) |
Capacitance | 60nF/600nF/ 6uF/ 60uF/600uF/ 6mF/ 60mF | ±(2.5%+5) |
Frequency | 10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/10MHz | ±(0.5%+4) |
Temperature | -40℃～1000℃|-40℉～1832℉ | ＜400℃|750℉ ±(1.0%+5) |
≥400℃|750℉ ±(1.5%+15) |
Specific Function:
Model | VC836 |
Max. display | 6000 |
Safety level | CAT. III 300V |
True RMS | √ |
NCV | √ |
Analog bar display | √ |
Data hold | √ |
Function protection | √ |
Torch function | √ |
Backlight display | √ |
Diode test | √ |
Continuity alarm | Less than 50MΩ |
Low battery indicator | Approx. less than 2.4V |
Protect/Shockproof protect function | √ |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual or Auto range |
LCD size | 61x28mm |
Battery | 3V (1.5V AAA x 2) |
Power consumption | Quiescent current about 2mA |
General Characteristic:
Meter color | Gray device + Orange holster |
Meter weight | 195g (including battery) |
Meter size | 140×72×37mm |
Standard accessory | Gift-box, Test leads, battery, manual, TP01 temperature probe |
Standard packing | Gift box |
Quantity per carton | 40pcs |
GW per carton | 15kg |
Carton size | 32.5x25x47.5cm |
