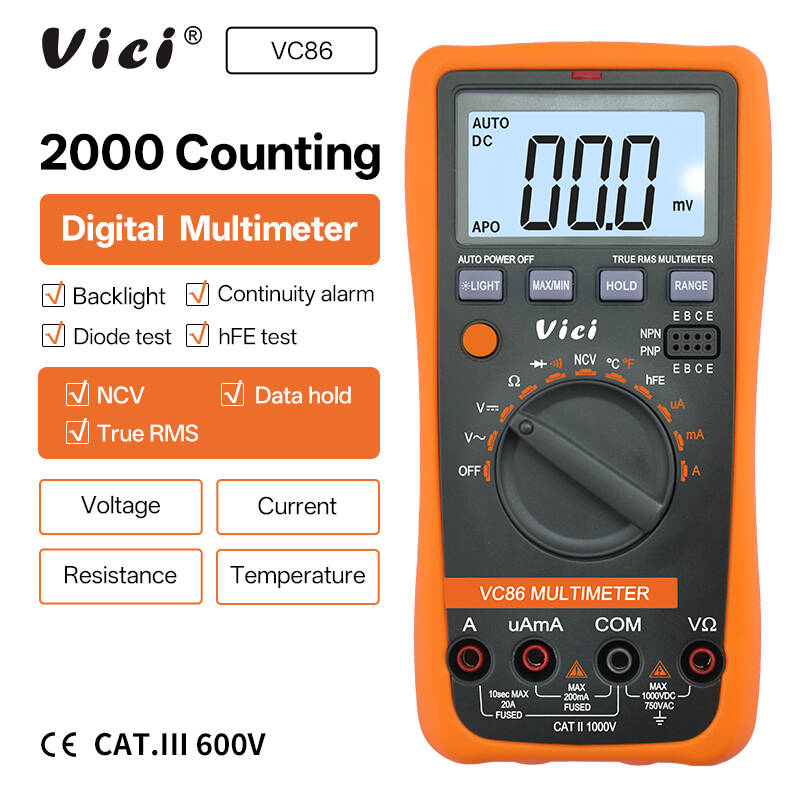

    Vici VC86 True RMS NCV 2000 Digitls 1000V 20A Auto Range Digital Multimeter
    Share this page
    US $9.00 - US $13.00
    Application:
    Electronic measurements
    Brand:
    Vici
    Model No.:
    VC86
    是否接受定制:
    接受
    Description
    Contact Supplier
    Description

    Vici VC86 True RMS NCV 2000 Digitls 1000V 20A Auto Range Digital Multimeter


    • Carry your electrical and engine work swiftly with this handheld digital multimeter. This highlighted multimeter effectively and accurately provides ohms readings, voltage, Farads, input impedance and many more electrical units, so it suits your various needs. It is also equipped with a large and clear digital display screen that works well even in low light situations. Make a range of jobs and projects easier with this robust digital multimeter.



    Features:

    1. New type holster, streamlined design, comfortable handle;

    2. Large LCD display makes reading clear;

    3. Strong antimagnetic and anti-interferential performance;

    4. Auto power off when there is no measurement in 15 minutes;

    5. Full function protection;

    6. Unit symbol display, easy to read;

    7. Non-contact voltage detect (NCV) with visual and sound alarm;

    8. Max value hold, Data hold, True RMS tests.



    Technical Data:

    Basic function

    Range

    Accuracy

    DCV

    200mV/2V/20V/200V/1000V

    ±(0.5%+4)

    ACV

    200mV/2V/20V/200V/750V

    ±(0.8%+5)

    DCA

    200uA/2000uA/20mA/200mA/2A/20A

    ±(1.0%+5)

    ACA

    200uA/2000uA/20mA/200mA/2A/20A

    ±(1.5%+5)

    Resistance

    200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

    ±(0.8%+1)

    Temperature

    (-40~ 1000)℃

    ±(0.8%+4)

    (-40~ 1832)℉

    ±(1.2%+4)

       Special Function:

    Feature

    VC86

    True RMS

    NCV

    Diode and hFE test

    Continuity alarm

    Less than 50Ω

    Low battery indicator

    Approx. less than 2.4 V

    Backlight display, Data hold

    Auto power off

    About 15 minutes

    Function protection

    Input impedance

    10MΩ

    Sampling rate

    3 times/s

    AC frequency response

    40-2kHz

    Operation method

    Auto or manual range

    Max display

    1999

    LCD size

    54x30mm

    Battery

    3V (1.5V AAA×2)

    Power consumption

    Quiescent current about 2mA


    General Characteristic:

    Meter color

    Orange and Grey

    Meter weight

    290g(including battery)

    Meter size

    170×86×35mm

    Standard accessory

    Test leads, battery, manual, TP01 temperature probe

    Standard packing

    Gift box

    QTY per carton

    40pcs

    Carton size

    38.5*30.5*46.5CM

    G.W per carton

    17.6KG
