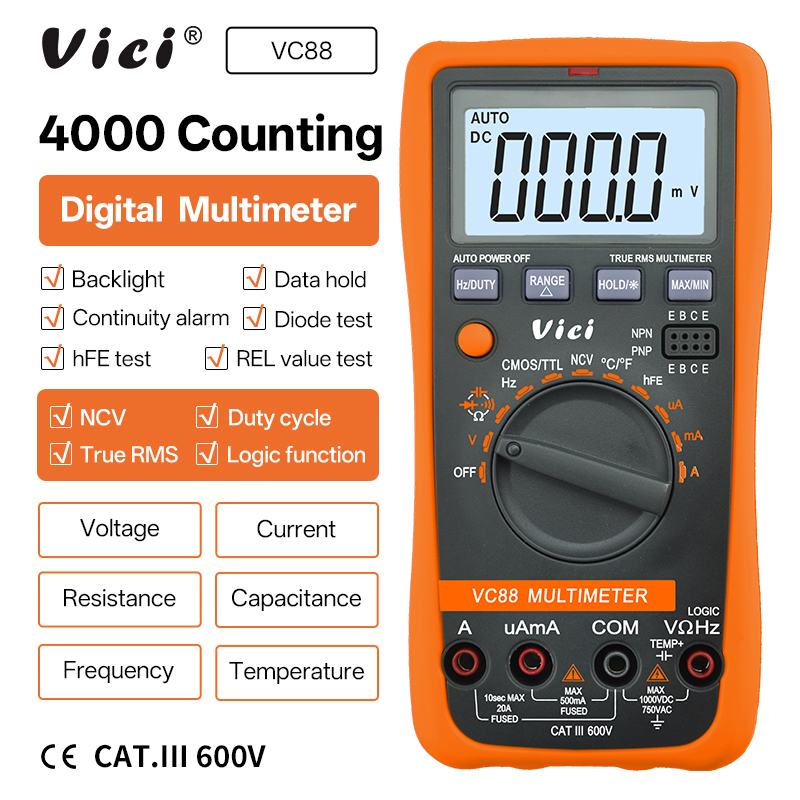

Vici VC88 Logic Test 4000 Digits 1000V 20A True RMS Digital Multimeter
US $9.00 - US $13.00
Application:
Electronic measurements
Brand:
Vici
Model No.:
VC88
是否接受定制:
是
Description
Contact Supplier
Description
Vici VC88 Logic Test 4000 Digits 1000V 20A True RMS Digital Multimeter
Features:
1. Streamlined design, comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance;
4. Auto power off when there is no measurement in 15 minutes;
5. Full function protection;
6. Unit symbol display, easy to read;
7. CMOS, TTL logic test; True RMS, NCV, MAX/MIN tests;
8. Relative value measurement, frequency/ duty cycle test, data hold.
Technical Data:
Basic function | Range | Accuracy |
DCV | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
ACV | 4V/40V/400V/750V | ±(0.8%+10) |
DCA | 400uA/4000uA/40mA/400mA/4A/20A | ±(1.0%+5) |
ACA | 400uA/4000uA/40mA/400mA/4A/20A | ±(1.5%+10) |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) |
Capacitance | 40nF/400nF/4uF/40uF/400uF/4mF/40mF | ±(2.5%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
Temperature | -40℃～1000℃ |-40℉～1832℉ | ±(1.0%+5) |
Special Function:
Feature | VC88 |
True RMS test | √ |
NCV test | √ |
Max/Min test | √ |
Logic function | √ |
Diode and hFE test | √ |
Continuity alarm | Less than 50Ω |
Low battery indication | Approx. less than 2.4 V |
Duty cycle test | √ |
Data hold | √ |
Backlight display | √ |
Auto power off | About 15 minutes |
Function protection | √ |
Input impedance | 10MΩ |
Sampling rate | 3times/s |
AC frequency response | 40-2000Hz |
Operation method | Auto or Manual range |
Max display | 4000 |
LCD size | 54x30mm |
Battery | 3V (2x1.5V AAA) |
Power consumption | Quiescent current approx. 2mA |
General characteristic
Meter color | Orange holster and Gray device |
Meter weight | 290g (including battery) |
Meter size | |
Standard accessory | Test leads, battery, manual, TP01 temperature probe. |
Standard packing | Gift box |
Standard QTY per carton | 30pcs |
Carton size | 38.5*30.5*36.5CM |
G.W per carton | 13.5KG |
