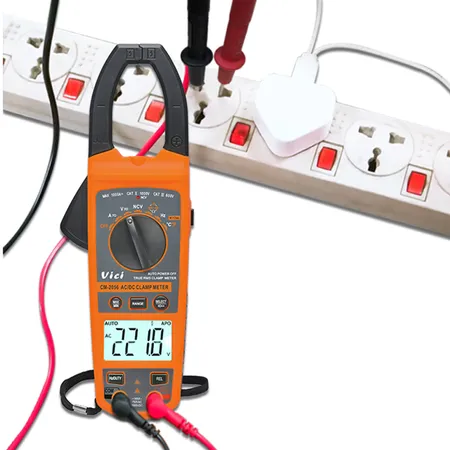

Vicimeter 52mm Jaw CM-2056 1000A AC DC Clamp Meter
Model No.:
CM-2056
Size:
270×123×35mm
Weight:
280g
Safety level:
CAT. III 600V
Max display:
4000 digits
Voltage:
AC 750V DC1000V
Current:
AC DC 1000A
Capacitance:
40mF
Resistance:
40MΩ
Frequency:
10MHz
Temperature:
1000℃， 1832℉
Description
Contact Supplier
Description
CM-2056 AC/DC 3 3/4 Digital Clamp Meter
Features:
1. Clamp opens 52mm;
2. Large LCD display makes reading clear;
3. Full function protection, strong anti-interferential performance;
4. CE standard design, improves the safety of the test;
5. Duty cycle test, REL test, data hold; TRMS, NCV;
6. Clamp light, backlight display.
Technical Data:
Basic function | Range | Accuracy |
DCV | 400mV/4V/40V/400V/1000V | ±(0.5%+5) |
ACV | 400mV/4V/40V/400V/750V | ±(1.0%+5) |
DCA | 40A/400A/1000A | ±(2.0%+5) |
ACA | 40A/400A/1000A | ±(2.0%+5) |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+3) |
Capacitance | 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF | ±(3.5%+10) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+5) |
Temperature | (-40~ 1000) ℃ （-40~1832℉） | ±(1.0%+5) |
Special Function:
Model | CM-2056 |
NCV test | √ |
True RMS test | √ |
Diode test | √ |
Continuity test | Less than 30Ω |
Low battery indicator | Approx. less than 2.4 V |
Data hold | √ |
Auto power off | About 15 minutes |
Function protection | √ |
Clamp light | √ |
Backlight display | √ |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40-2kHz |
Operation method | Auto or manual range |
Max display | 4000 |
Clamp opens | 52mm |
Battery | 3V (2x1.5V AAA) |
General Characteristic:
Meter color | Orange and Black |
Meter weight | About 280g (including battery) |
Meter size | 270×123×35mm |
Standard accessory | Test leads, battery, manual, TP01 temperature probe |
Standard packing | Gift box + Black bag |
Carton size | |
Standard QTY per carton | 30pcs |
G.W per carton | 16.8kg |
