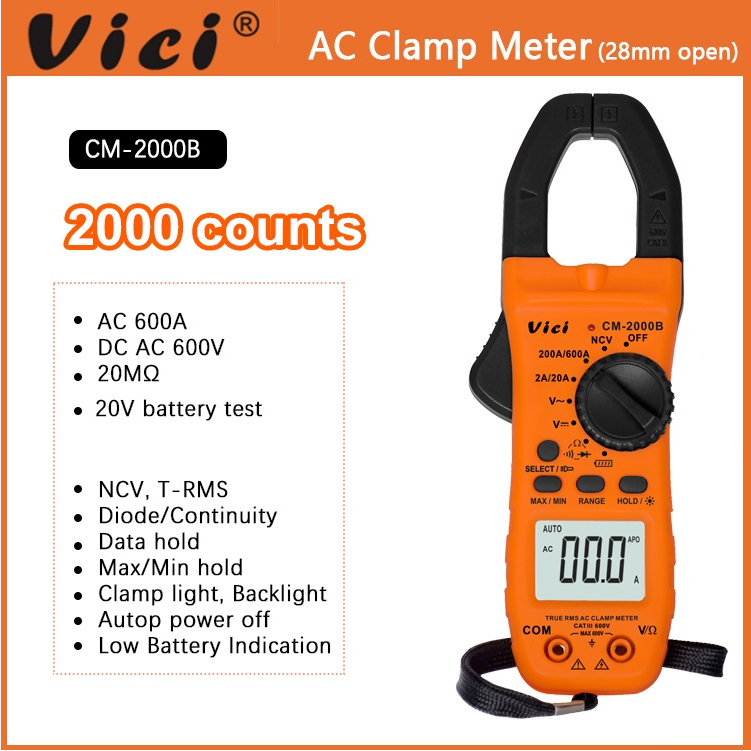

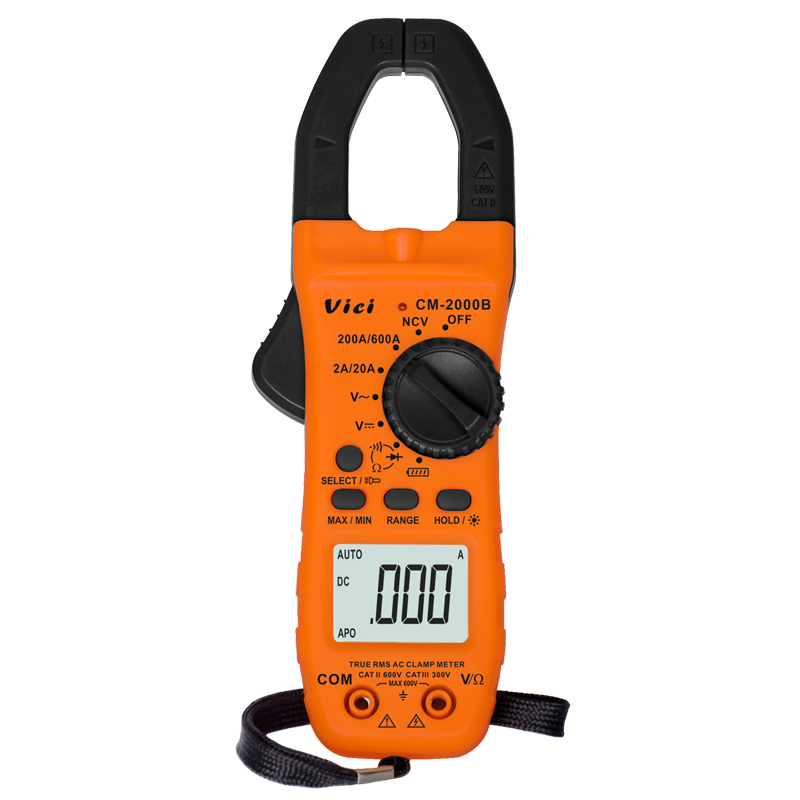

Vicimeter CM-2000B AC 600A True RMS Clamp Meter
Model No.:
CM-2000B
Size:
185*65*32mm
Weight:
200g
Safety level:
CAT. III 600V
Max display:
2000 digits
AC DC Voltage:
600V
AC Current:
600A
Resistance:
20MΩ
Description
Contact Supplier
Description
CM-2000B 3 1/2 Digits Digital AC Clamp Meter
Features：
1. Clamp open 28mm
2. Portable design, easy use
3. Data hold, TRMS, Max/Min
4. CE standard design, improving the safety test
5. Non-contact voltage testing with visible alarm
6. Clamp light display, or backlight display (Optional)
7. Full function protection, strong anti-interferential performance
Technical Data:
Basic function | Range | Accuracy |
DCV | 200mV/2V/20V/200V/600V | ±(,0.5%+5) |
ACV | 2V/20V/200V/600V | ±(1.0%+5) |
ACA | 2A/20A/200A/600A | ±(2.0%+5) |
Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) |
Special Function:
Model | CM-2000B |
NCV | √ |
TRMS | √ |
Battery voltage test | 20V |
Max./Min. | √ |
Diode test | √ |
Continuity alarm | Less than 50Ω |
Low battery indication | Approx. less than2.4 V |
Data hold | √ |
Auto power off | Approx. 15 minutes. |
Function protection | √ |
Clamp light display | √ |
Backlight display | √ |
Input impedance | 10MΩ |
Sampling rate | 3 times/second |
AC frequency response | Current (50~60)Hz, Voltage (50~400)Hz |
Operation method | Manual or auto range |
Max. display | 1999 |
Clamp open | 28mm |
Power source | 3V (2pcs #7 batteries) |
General Characteristic:
Meter color | Orange body + Black clamp |
Meter weight | 200g(including the batteries) |
Standard accessories | Test leads, battery, English manual |
Standard package | Gift box |
Meter size | 185*65*32mm |
Standard qty per carton | 40pcs |
G.W. per carton | 15KG |
Carton size | 41.5x28x46.5CM |
