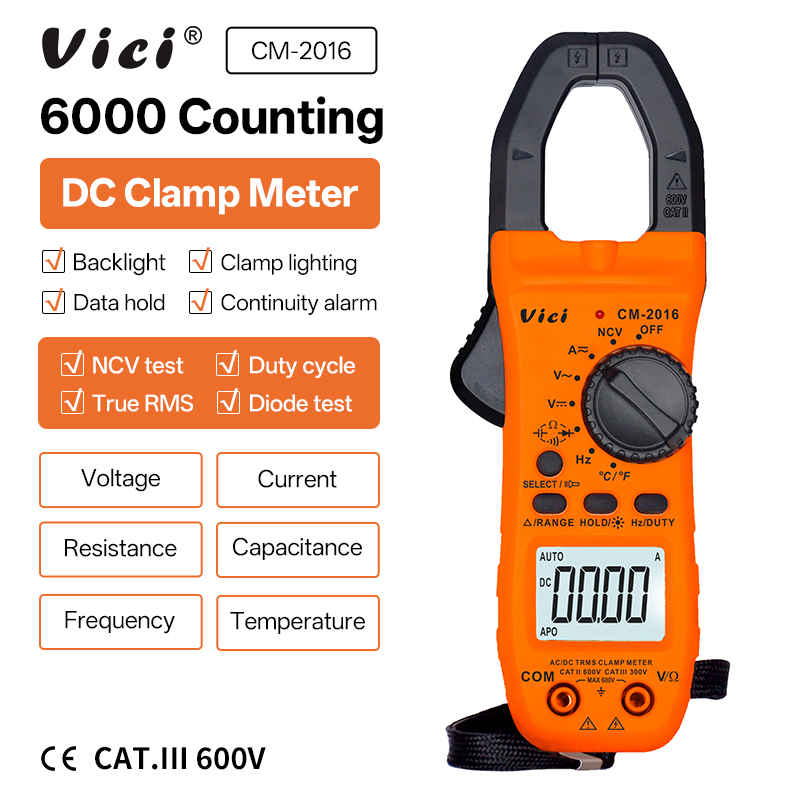

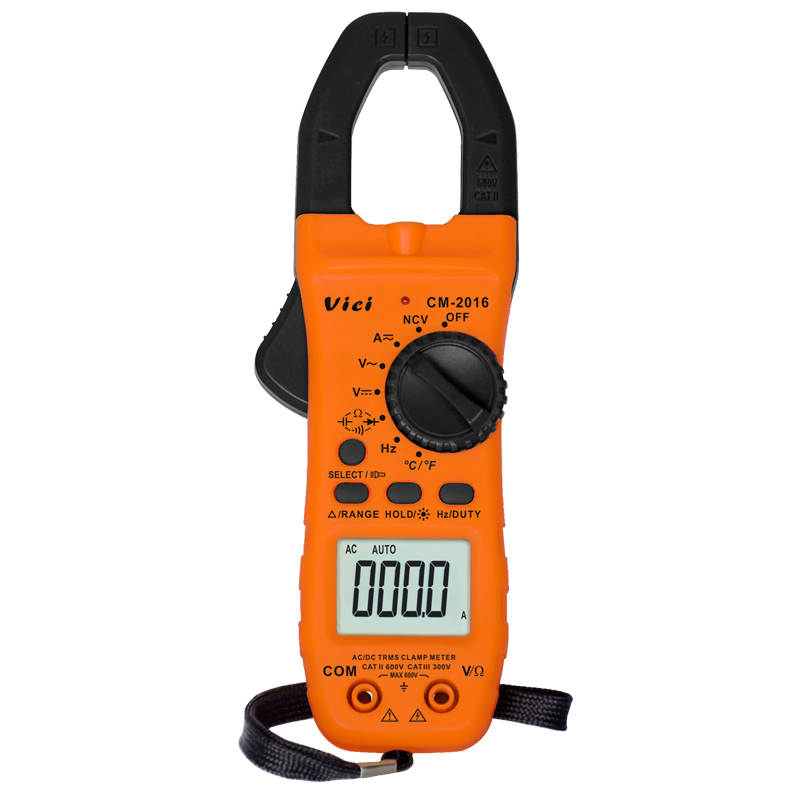

Vicimeter CM-2016 AC DC 800A Clamp Meter
Model No.:
CM-2016
Size:
185*65*32mm
Weight:
200g
Safety level:
CAT. III 600V
Max display:
6000 digits
Voltage:
600V
Current:
800A
Capacitance:
60mF
Resistance:
60MΩ
Frequency:
10MHz
Temperature:
1000℃， 1832℉
Description
Contact Supplier
Description
CM-2016 AC/DC 3 5/6 counts Digital Clamp Meter
Features:
Clamp opens 28mm
Portable design, easy use
Clamp light, Backlight, Flash light
Large LCD display makes reading clear
CE standard design, improves the safety of the test
Full function protection, strong anti-interferential performance
Duty cycle test, REL test, NCV, TRMS test, data hold, APO function
Basic function | Range | Accuracy |
DCV | 600mV/6V/60V/600V | ±(0.5%+5) |
ACV | 6V/60V/600V | ±(0.8%+5) |
DCA | 60A/600A/800A | ±(1.5%+5) |
ACA | 60A/600A/800A | ±(1.5%+5) |
Resistance | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(0.8%+1) |
Capacitance | 6nF/60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±(2.5%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
Temperature | (-40 to 1000 )℃, (-40 to 1832 ) ℉ | ±(1.0%+5) |
Special Function:
Model | CM-2016 |
Diode test | √ |
Continuity test | Less than 50Ω |
Low battery indicator Low battery indicator | Approx. less than 2.6 V |
Data hold | √ |
NCV | √ |
Auto power off | About 15 minutes |
TRMS test | √ |
Function protection | √ |
Clamp light | √ |
Backlight display | √ |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40 to 2000Hz |
Operation method | Auto or manual range |
Max display | 6000 |
Clamp opens | 28mm |
Battery | 3V (2*AAA battery) |
General Characteristic：
Meter color | Orange and Black |
Meter weight | About 200g (including battery) |
Meter size | 185*65*32mm |
Standard accessory | Test leads, battery, manual, temperature probe, carrying case |
Standard packing | Gift box |
Carton size | 41.5*28*46.5CM |
Standard QTY per carton | 40pcs |
G.W per carton | 15kg |
