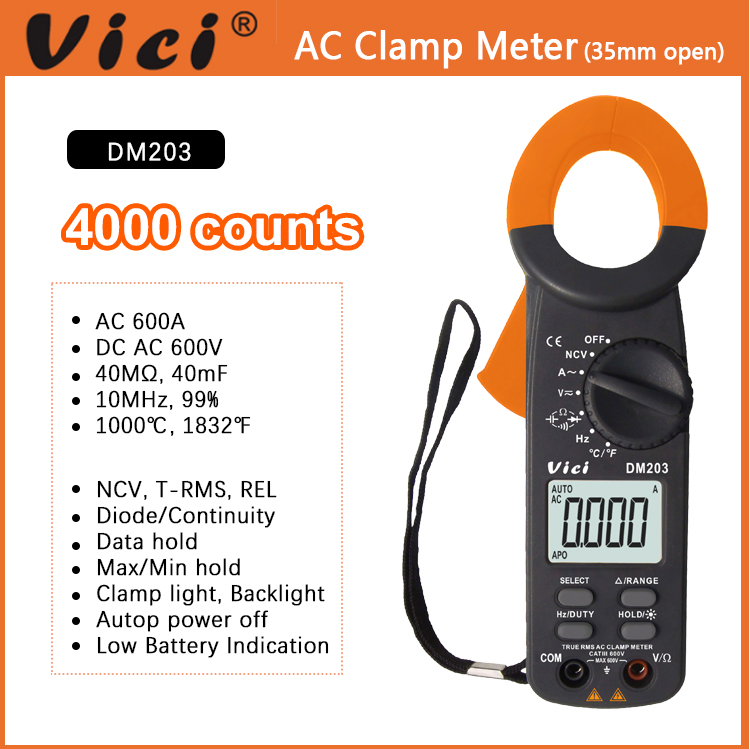

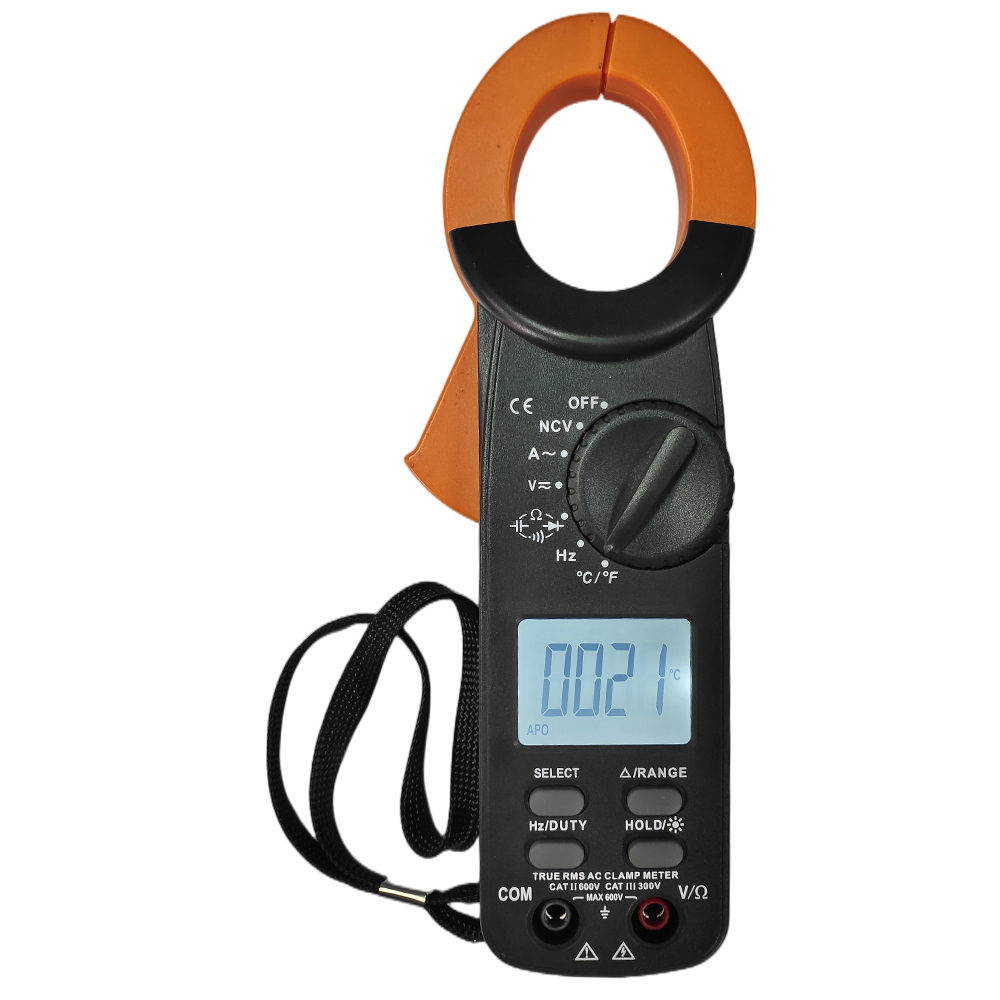

Vicimeter DM203 35mm Jaw AC 800A Clamp Meter
Model No.:
DM203
Size:
195mm*65mm*33mm
Weight:
200g
Safety level:
CAT. III 600V
Max display:
4000 digits
Voltage:
AC DC 600V
Current:
AC 800A
Resistance:
40MΩ
Temperature:
1000℃， 1832℉
Frequency:
10MHz
Capacitance:
40mF
Description
Contact Supplier
Description
DM203 (DM204) 3 3/4 Digital Clamp Multimeter
Features:
1. Clamp opens 35 mm;
2. Portable design, easy to operate.
3. Full function protection, anti high voltage circuit design
4. CE standard design, improves the safety of the test.
5. Max measuring capacitance, data hold, backlight.
6. NCV, True RMS test function.
Range | Accuracy | |
DCV | 400mV/4V/40V/400V/600V | ±(0.5%+5) |
ACV | 4V/40V/400V/600V | ±(1.0%+5) |
ACA | 4A/40A/400A/600A | |
Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+3) |
Capacitance | 4nF/40nF/400nF/4μF/40μF/400μF/4mF/40mF | ±(2.5%+5) |
Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | ±(0.5%+4) |
Temperature | (-40 ~ 1000) ℃ | (-40 ~ 1832) ℉ | ±(1.0%+5) |
Special Function:
Model | DM203 (DM204) |
NCV | √ |
True RMS | √ |
Diode test | |
Backlight function | √ |
Continuity alarming | Less than 50Ω |
Low battery indication | Approx. less than 2.4 V |
Data hold | √ |
Auto power off | About 15 minutes |
Function protection | Full function protection |
Input impedance | 10MΩ |
Sampling rate | 3 times /s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual or auto range |
Max. display | 4000 |
Clamp opens | 35mm |
Battery | 3V (2×1.5V) |
General Characteristic:
Color | Orange and Black |
Weight | About 200g (including the battery.) |
Dimension | |
Standard accessory | Test leads, battery, manual, TP01 temperature probe |
Packing | Gift box |
Carton size | 45.3*32.5*43CM |
Standard packing per carton | 40 PCS |
Standard G.W. per carton | 14KG |
