Vicimeter DM6803A+ K, E, J, T, N, B, R, S Type Thermocouple Thermometer

Brand:

Vici

Model No.:

DM6803A+

Customised:

Yes

Size:

130×95×28mm

Weight:

250g

Detecting type:

K, E, J, T, N, B, R, S type thermcouple

Description

Contact Supplier

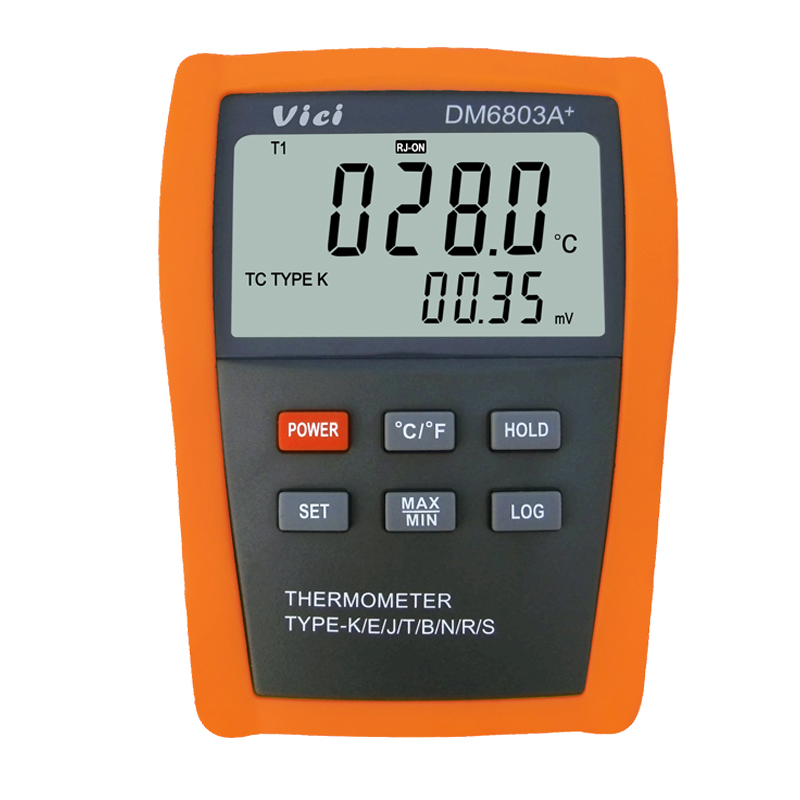

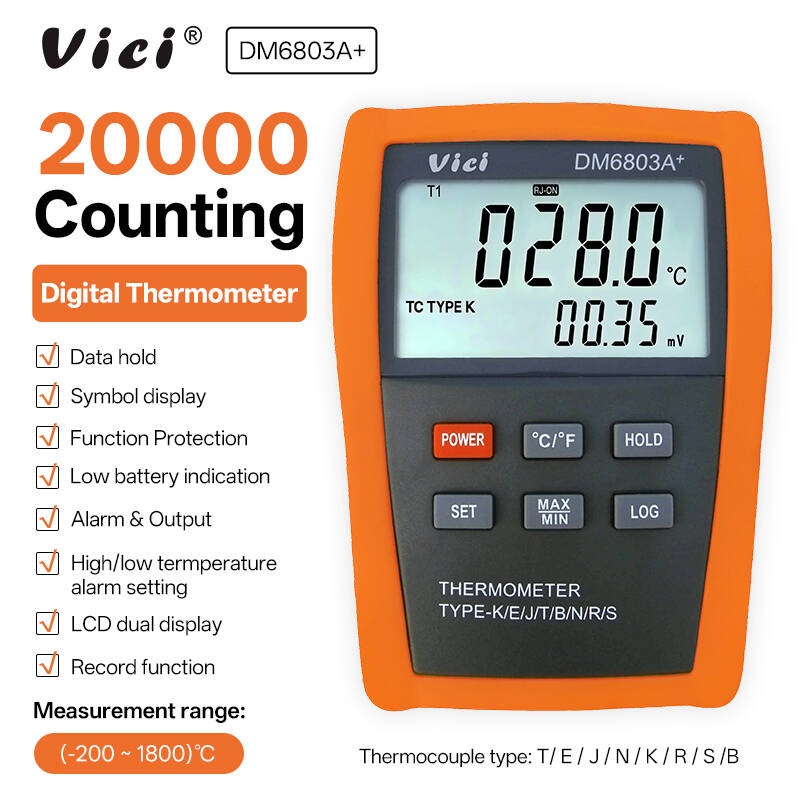

DM6803A⁺ Dual Display Intelligent Digital Thermometer

Features:

1. Temperature measuring (accuracy ± 0.3%) & alarming output function;

2. Support K, E, J, T, N, B, R, S thermocouples;

3. It can set cold temperature automatic saving;

4.℃ and ℉ display；

5. Dual display: display Max./Min. and relative mV value of input temperature;

6. High/low alarm setting, alarming hysteresis setting, and alarm signal output.

The alarm can be set to start when temperature is higher or lower than the set point and can be set to sound or quiet; Once the alarm is triggered, it will remain in alarm mode as long as the temperature is in the hysteresis range; The alarm output signal can control a circuit to close or open; It adopts isolated optocoupler output.

7. Record function: can manually record 2500pcs temperature, and automatically record 6000pcs temperature. Automatic record interval is adjustable, and the longest record time is 99 hours.

Technical Data:

Thermocouple type	Input range	Resolution	Accuracy	Remark
R	-40～1760℃	1℃	-40～500℃: ±(0.5%+2℃) 500℃～1760℃: ±(0.4%+2℃)	Input resistance 1GΩ adopts ITS-90 thermometric scale
S	-20～1760℃	1℃	-40～500℃: ±(0.5%+2℃) 500℃～1760℃: ±(0.4%+2℃)
B	400～1800℃	1℃	400℃～800℃: ±(0.5%+2℃) 800℃～1000℃: ±(0.4%+2℃) 1000℃～1800℃:±(0.3%+2℃)
E	-200～1000℃	0.1℃	-200℃～0℃: ±(0.3%+1℃) 0℃～500℃: ±(0.3%+2℃)
K	-200～1370℃	0.1℃	-200～0℃: ±(0.3%+2℃) 0℃～800℃: ±(0.3%+1℃) 800℃～1370℃: ±(0.5%+2℃)
J	-200～1200℃	0.1℃	-200～0℃: ±(0.3%+1℃) 0℃～1200℃: ±(0.3%+2℃)
T	-200～400℃	1℃	-200～0℃: ±(0.3%+1℃) 0℃～400℃: ±(0.3%+2℃)
N	-200～1300℃	0.1℃	-200～0℃: ±(0.5%+2℃) 0℃～1300℃: ±(0.3%+2℃)

Special Function:

Model	DM6803A⁺
Low battery indication	Approx. less than 7.5V
Data hold	√
Unit symbol display	√
Function protection	√
Anti-shock protection	√
Sampling rate	2.5 times/s
Operation method	Manual range
Max. display	19999
LCD size	67x40mm
Battery	9V (6F22)
Power consumption	Quiescent current approx. 3.5mA

General Characteristic:

Color	Orange and Grey
Weight	250g（including battery）
Meter size	130×95×28mm
Standard accessory	Battery, manual, TP01 K type temperature probe, and output plug
Packing	Gift box
Standard packing per carton	60pcs
Carton size	45.532.543CM
Standard G.W per carton	20 kg
