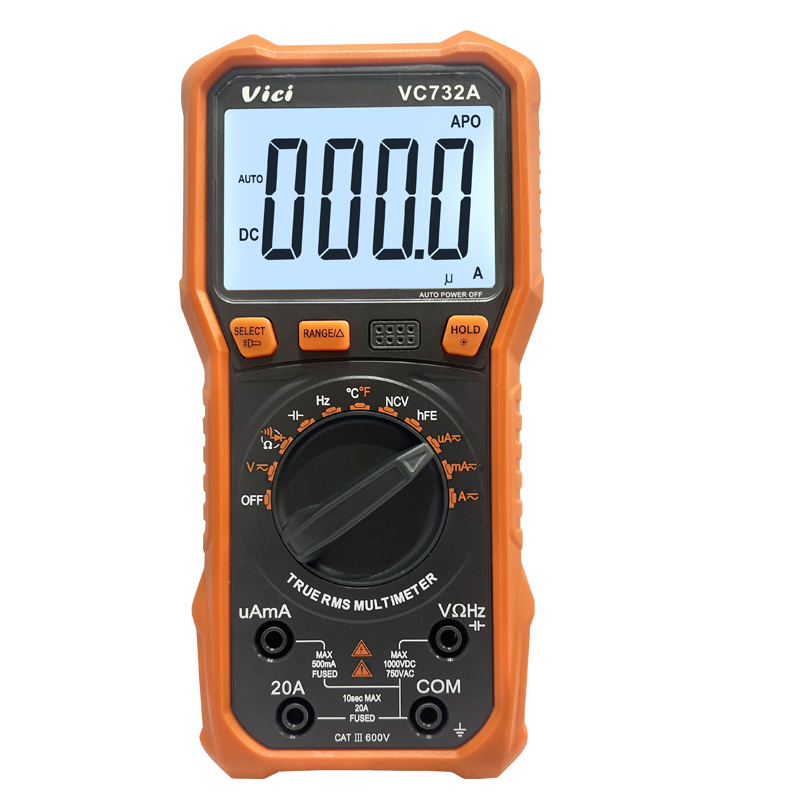

Vicimeter NEW HD large Display VC732A 2000 counts Digital Multimeter

Production Lead Time:

30 day(s)

Shipping Method:

by sea/air/express/land

Brand:

Vici

Model No.:

VC732A

AC+DC current:

20A

DC voltage:

1000V

AC voltage:

750V

Resistance:

20MΩ

Capacitance:

20mF

Temperature:

-40℃~1000℃ | -40℉~1832℉

Frequency:

10MHz

Functions:

T-RMS, NCV, REL, MAX, MIN, Backlight, Data hold, Auto power off, ect

Diode/hFE/Continuity test:

yes

Description

Contact Supplier

VC732A 3 1/2 Digital Multimeter

Features:

1. New type holster, streamlined design, comfortable handle;

2. Large 30mm HD large LCD display makes reading clear;

3. Strong antimagnetic and anti-interferential performance; Full function protection;

4. Auto power off when there is no measurement in 15 minutes;

5. Unit symbol display, easy to read; Lighting function, backlight display.

6. True RMS, Non-contact voltage detect (NCV), relative value measurement, frequency/duty cycle and data hold function.

Technic Datas:

Basic function	Range	Basic Accuracy
DCV	200mV/2V/20V/200V/1000V	± (0.5%+5)
ACV	2V/20V/200V/750V	± (0.8%+10)
DCA	200uA/2000uA/20mA/200mA/2A/20A	± (1.0%+5)
ACA	200uA/2000uA/20mA/200mA/2A/20A	± (1.5%+10)
Resistance	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ	± (0.8%+2)
Capacitance	20nF/200nF/2uF/20uF/200uF/2000uF	± (2.5%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz	± (0.5%+4)
Temperature	-40℃～1000℃/-40℉～1832℉	± (1.0%+5)
Special function	VC732A
Max. display	1999
True RMS	√
NCV	√
Data hold	√
Function protection	√
Torch function	√
Backlight display	√
Duty cycle	1%~99%
Triode (hFE) test	√
Diode test	√
Continuity alarm	Less than 50Ω, it displays “OL” if over 610Ω
Low battery indicator	Approx. less than 2.4 V
Auto power off	About 15 minutes
Input impedance	10MΩ
Sampling rate	3 times/s
AC frequency response	40Hz-1kHz
Operation method	Manual or Auto range
LCD size	65x43.5mm
Battery	3V (2*AAA battery)
Power consumption	Quiescent current about 2mA

General Info:

Meter color	Orange + Grey
Meter weight	306g (including battery)
Meter size	190×92×50mm
Standard accessory	Test leads, battery, manual, TP01 temperature probe
Standard packing	30pcs
G.W. per carton	15kg
Carton size	43.529.542.5cm
