Vicimeter VC60B+ Insulation Tester for Motor, Cable, Electromechanical equipments
US $26.35 - US $50.70
Application:
Motor, cable, electromechanical equipment, telecommunications equipment, power facilities and other insulation resistance detection needs
Brand:
Vici
Model No.:
VC60B+
Size:
176*116*63mm
Weight:
580g
Resistance:
1Ω ~ 2000Ω
Insulation:
100kΩ ~ 2GΩ
Voltage:
DC 1000V, AC 750V
Description
Contact Supplier
Description

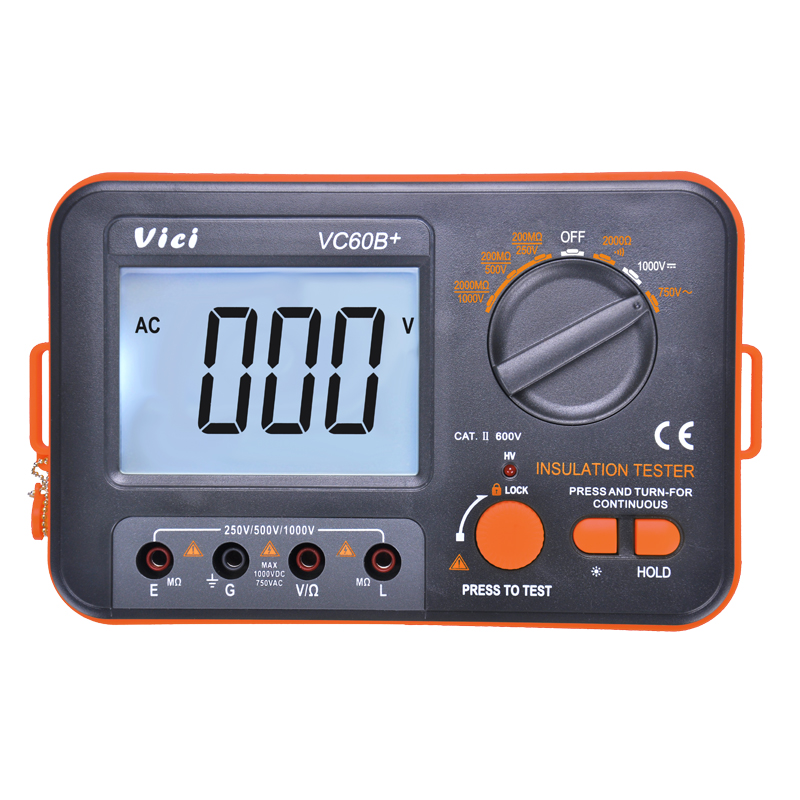

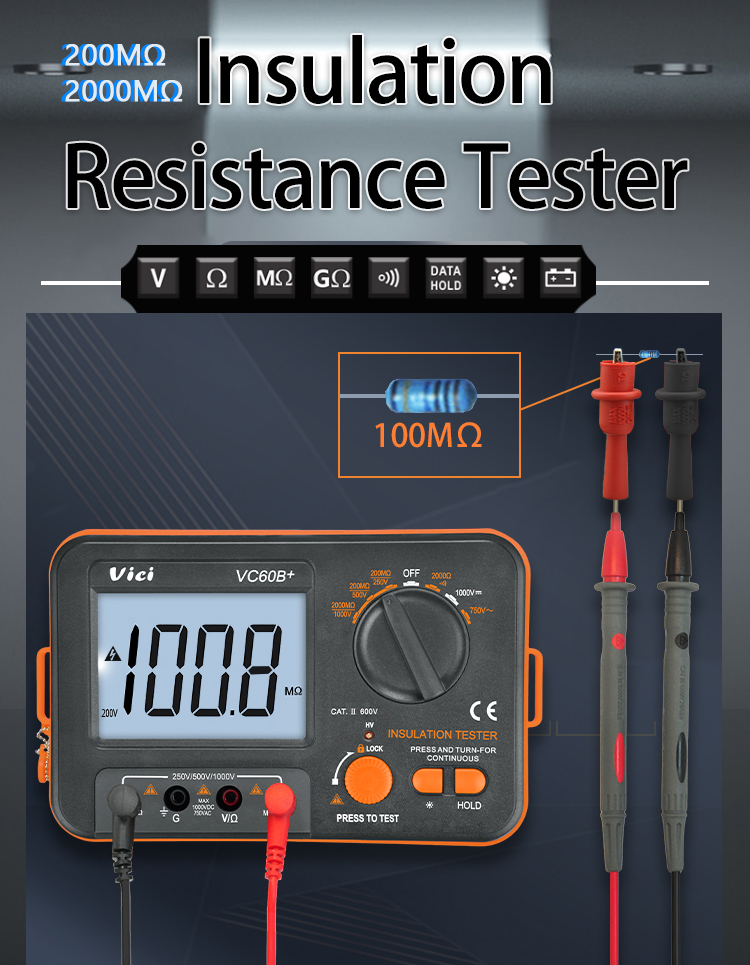

VC60B+ Insulation Tester
Features:
An accurate, reliable and easy-to-use insulation tester
Large LCD display, easy to read
Strong anti-magnetic and anti-jamming function
Full function protection, anti high voltage circuit design
Unit symbol display, easy to use
High voltage and short circuit input alarm
Technical Data:
Range | Accuracy | Resolution | ||
Insulation Resistance | 250V±10% test voltage | 0~200MΩ | ±(4.0%+2) | 100kΩ |
500V±10% test voltage | 0~200MΩ | 100kΩ | ||
1000V±10% test voltage | 0~2GΩ | 1MΩ | ||
Resistance | 0~2kΩ | ±(1.0%+5) | 1Ω | |
DCV | 0~1000V | 1V | ||
ACV | 0~750V | ±(1.5%+5) | 1V | |
Special Function:
VC60B+ | |
Continuity alarm | Less than 30Ω±10Ω |
Low battery indication | Less than approx.7.5V |
Data hold | √ |
LCD backlight | Approx.10Sec. |
Function protection | √ |
Input impedance | 1MΩ |
Sampling rate | 3 times/Sec. |
AC frequency response | 50-200Hz |
Operation mode | Manual range |
Max. display | 1999 |
LCD size | 75 x 52mm |
Power source | 1.5V AA battery x6pcs, or external DC 9V power source |
Power consumption | Quiescent current approx.3mA |
General Characteristic:
Color | |
Weight | 580g (including battery) |
Meter size | 176 (L) x116 (W) x63 (D) mm |
Standard accessory | Test lead, shoulder strap, battery, operation manual |
Individual packing | Gift box |
Master carton packing | 20pcs |
Master carton size | |
Master carton weight | 17.5KG |
