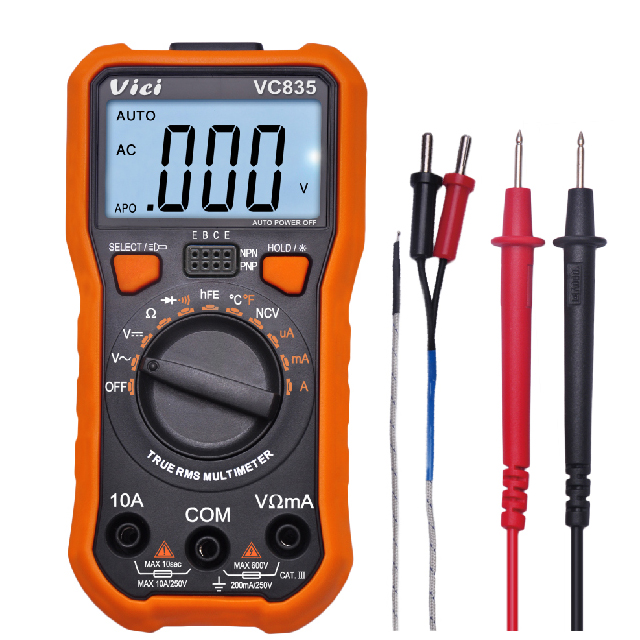

Vicimeter VC835 Digital Multimeter tester True RMS NCV 2000 Counts Auto Range Mini Smart multimeter.
US $6.98 - US $12.31
Production Lead Time:
7 day(s)
Shipping Method:
express delivery
Model:
VC835
NCV:
Yes
True RMS:
Yes
Function protection:
Yes
Torch function:
Yes
Backlight display:
Yes
Diode test:
0V~2V, it displays “OL” if over 2V
Continuity alarm:
Less than 50Ω, it displays “OL” if over 10Ω
hFE Test:
0~2000
Low battery indicator:
Approx. less than 2.4 V
Auto power off:
About 15 minutes
Input impedance:
10MΩ
Sampling rate:
3 times/s
AC frequency response:
40Hz-2kHz
Operation method:
Manual or Auto range
Max. display:
2000
LCD size:
61*28mm
Battery:
3V (1.5 AAA*2)
Power consumption:
Quiescent current about 2mA
Description
Contact Supplier
Description
Features:
1. Streamlined design holster and comfortable handle;
2. Large LCD display makes reading clear;
3. Strong antimagnetic and anti-interferential performance;
4. Auto power off when there is no measurement in 15 minutes;
5. Full function protection;
6. Unit symbol display, easy to read;
7. True RMS, non-contact voltage detecting (NCV) and data hold function;
8. Lighting function, backlight display.
Technical Data:
Basic function | Range | Basic Accuracy |
DCV | 200mV/2V/20V/200V/600V | ±(0.5%+4) |
ACV | 2V/20V/200V/600V | ±(0.8%+6) |
DCA | 200uA/2000uA/20mA/200mA/2A/10A | ±(1.0%+5) |
ACA | 200uA/2000uA/20mA/200mA/2A/10A | ±(1.5%+5) |
Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ | ±(0.8%+1) |
Temperature | -40℃~1000℃ |-40℉~1832℉ | ±(1.0%+5) |
Special Function:
Model | VC835 |
NCV | √ |
Data hold | √ |
True RMS | √ |
Function protection | √ |
Torch function | √ |
Backlight display | √ |
Diode test | 0V~2V, it displays “OL” if over 2V |
Continuity alarm | Less than 50Ω, it displays “OL” if over 10Ω |
hFE Test | 0~2000 |
Low battery indicator | Approx. less than 2.4 V |
Auto power off | About 15 minutes |
Input impedance | 10MΩ |
Sampling rate | 3 times/s |
AC frequency response | 40Hz-2kHz |
Operation method | Manual or Auto range |
Max. display | 2000 |
LCD size | 61*28mm |
Battery | 3V (1.5 AAA*2) |
Power consumption | Quiescent current about 2mA |
